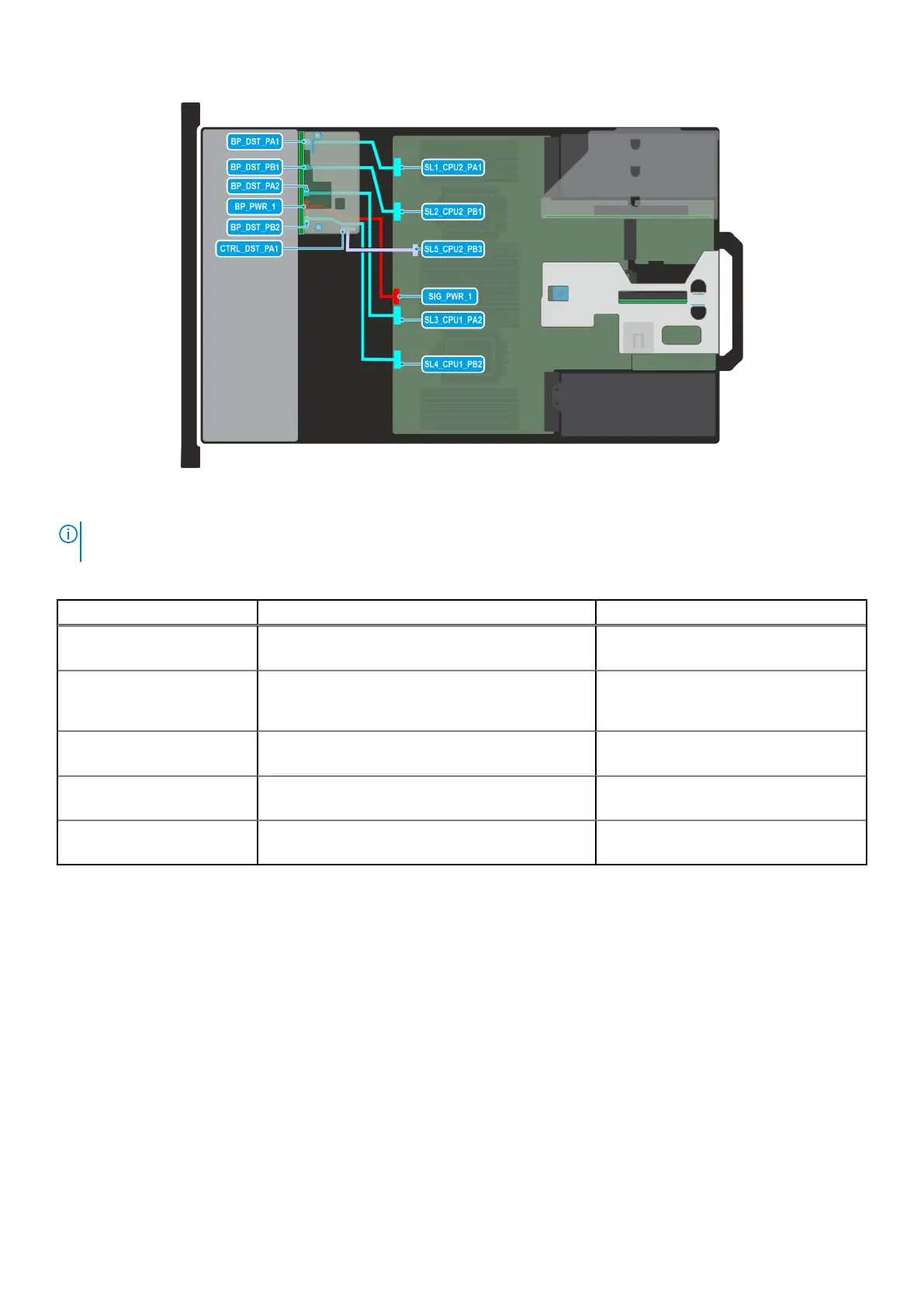

Figure 87. Configuration 11: 8 x 2.5-inch Universal (SAS/SATA/NVMe) with fPERC (HBA355i, H355, H755)
NOTE: Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 90. 8 x 2.5-inch Universal (SAS/SATA/NVMe) with fPERC (HBA355i, H355, H755)
Order From To
1 SL5_CPU2_PB3 (signal connector on system
board)
CTRL_DST_PA1 (fPERC input
connector)
2 SL3_CPU1_PA2 (signal connector on system
board) and SL4_CPU1_PB2 (signal connector on
system board)
BP_DST_PA2 (backplane signal
connector) and BP_DST_PB2
(backplane signal connector)
3 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power
connector)
4 SL2_CPU2_PB1 (signal connector on system
board)
CTRL_DST_PB1 (fPERC input
connector)
5 SL1_CPU2_PA1 (signal connector on system board) CTRL_DST_PA1 (fPERC input
connector)
