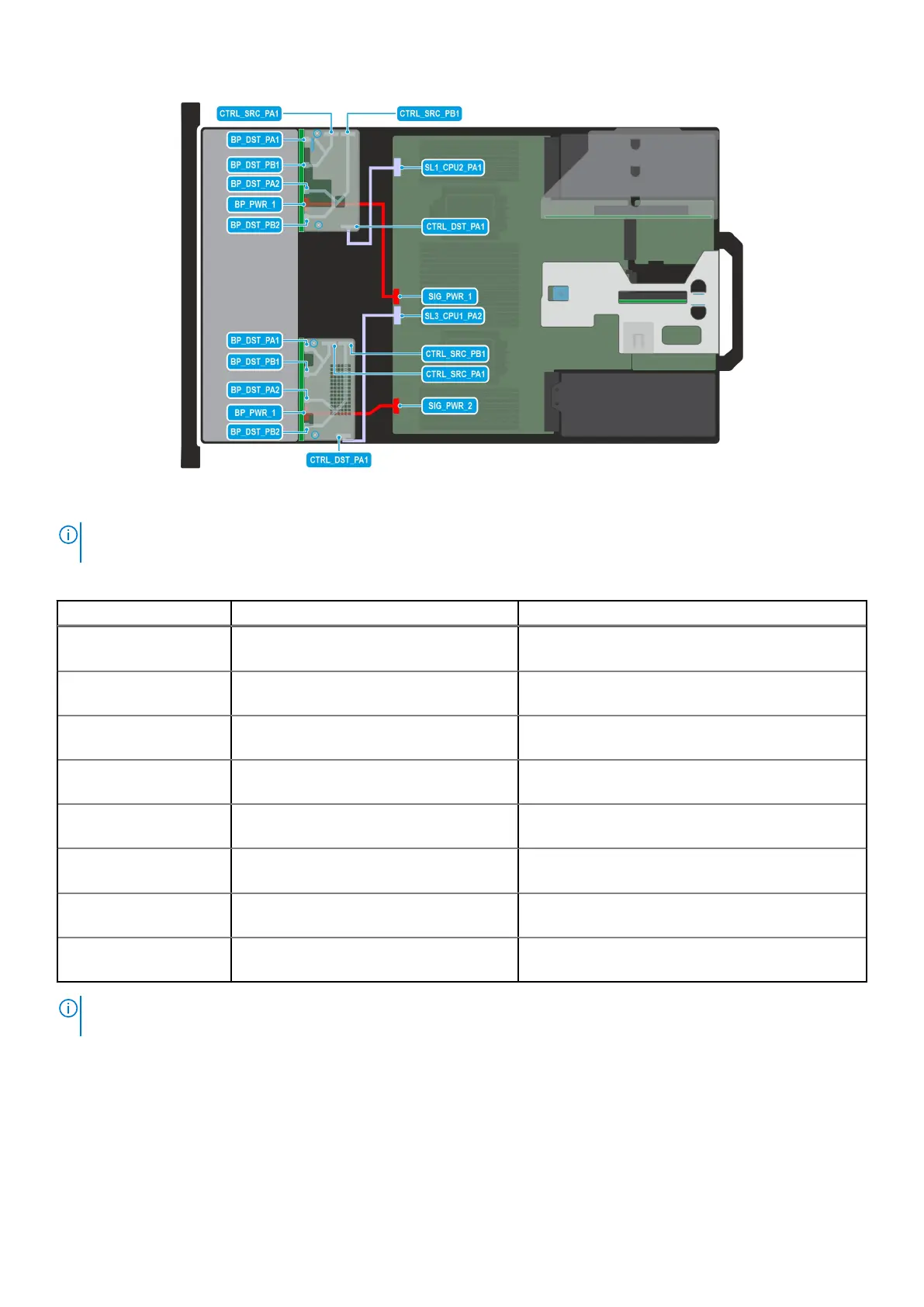

Figure 88. Configuration 12: 16 x 2.5-inch NVMe RAID with fPERC (H755N)
NOTE: Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 91. 16 x 2.5-inch NVMe RAID with fPERC (H755N)
Order From To
1 SL1_CPU2_PA1 (signal connector on
system board)
CTRL_DST_PA1 (fPERC input connector)
2 SIG_PWR_1 (system board power
connector)
BP_PWR_1 (backplane power connector)
3 CTRL_SRC_PB1 (fPERC controller
connector)
BP_DST_PA2 (backplane signal connector) and
BP_DST_PB2 (backplane signal connector)
4 CTRL_SRC_PA1 (fPERC controller
connector)
BP_DST_PA1 (backplane signal connector) and
BP_DST_PB1 (backplane signal connector)
5 SL3_CPU1_PA2 (signal connector on
system board)
CTRL_DST_PA1 (fPERC input connector)
6 SIG_PWR_2 (system board power
connector)
BP_PWR_1 (backplane power connector)
7 CTRL_SRC_PB1 (fPERC controller
connector)
BP_DST_PA2 (backplane signal connector) and
BP_DST_PB2 (backplane signal connector)
8 CTRL_SRC_PA1 (fPERC controller
connector)
BP_DST_PA1 (backplane signal connector) and
BP_DST_PB1 (backplane signal connector)
NOTE: An 8 x 2.5-inch NVMe backplanes with fPERC H755 should be assembled outside and inserted into the system,
along with all necessary cables.
Installing and removing system components 135
