Table 97. 16 x 2.5-inch SAS/SATA + 8 x 2.5-inch NVMe with fPERC (H965i) (continued)
Order From To
4 SL4_CPU1_PB2 (signal connector on system
board)
CTRL_DST_PB1 (fPERC input connector)
5 CTRL_SRC_SB1 (fPERC controller connector) BP_DST_SA1 (backplane signal connector)
6 CTRL_SRC_SA1 (fPERC controller connector) BP_DST_SA1 (backplane signal connector)
7 SIG_PWR_2 (system board power connector) BP_PWR_1 (backplane power connector)
8 SL7_CPU1_PB4 (signal connector on system
board)
BP_DST_PA2 (backplane signal connector)
9 SIG_PWR_0 (system board power connector) BP_PWR_1 (backplane power connector)
10 SL8_CPU1_PA4 (signal connector on system
board)
BP_DST_BA2 (backplane signal connector)

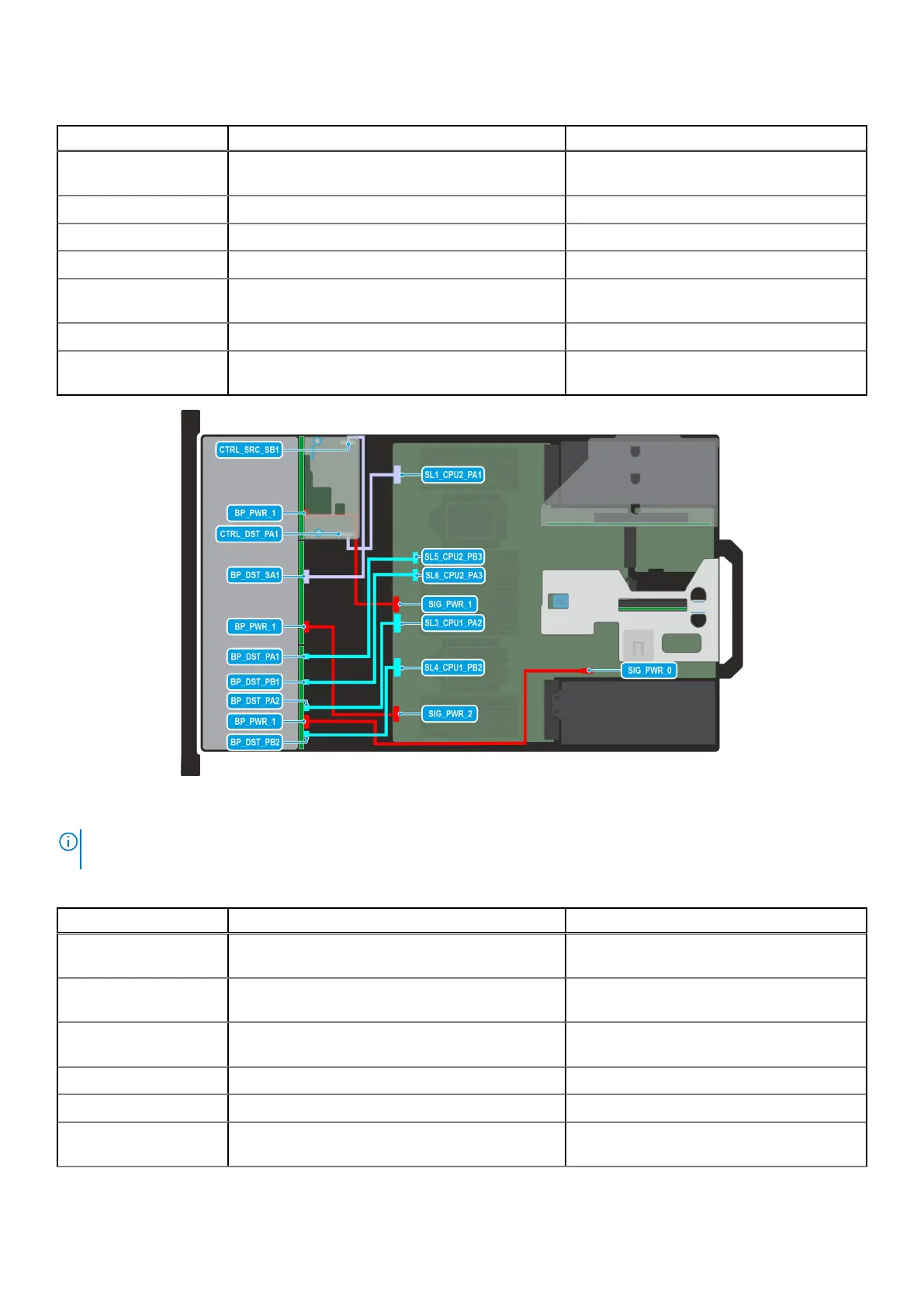

Figure 95. Configuration 19: 16 x 2.5-inch SAS/SATA + 8 x 2.5-inch NVMe with fPERC (HBA355i, H355, H755)
NOTE:
Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 98. 16 x 2.5-inch SAS/SATA + 8 x 2.5-inch NVMe with fPERC (HBA355i, H355, H755)
Order From To
1 SL1_CPU2_PA1 (signal connector on system
board)
CTRL_DST_PA1 (fPERC input connector)
2 SL5_CPU2_PB3 (signal connector on system
board)
BP_DST_PA1 (backplane signal connector)
3 SL6_CPU2_PA3 (signal connector on system
board)
BP_DST_PB1 (backplane signal connector)
4 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
5 CTRL_SRC_SB1 (fPERC controller connector) BP_DST_SA1 (backplane signal connector)
6 SL3_CPU1_PA2 (signal connector on system
board)
BP_DST_PA2 (backplane signal connector)
Installing and removing system components 141
