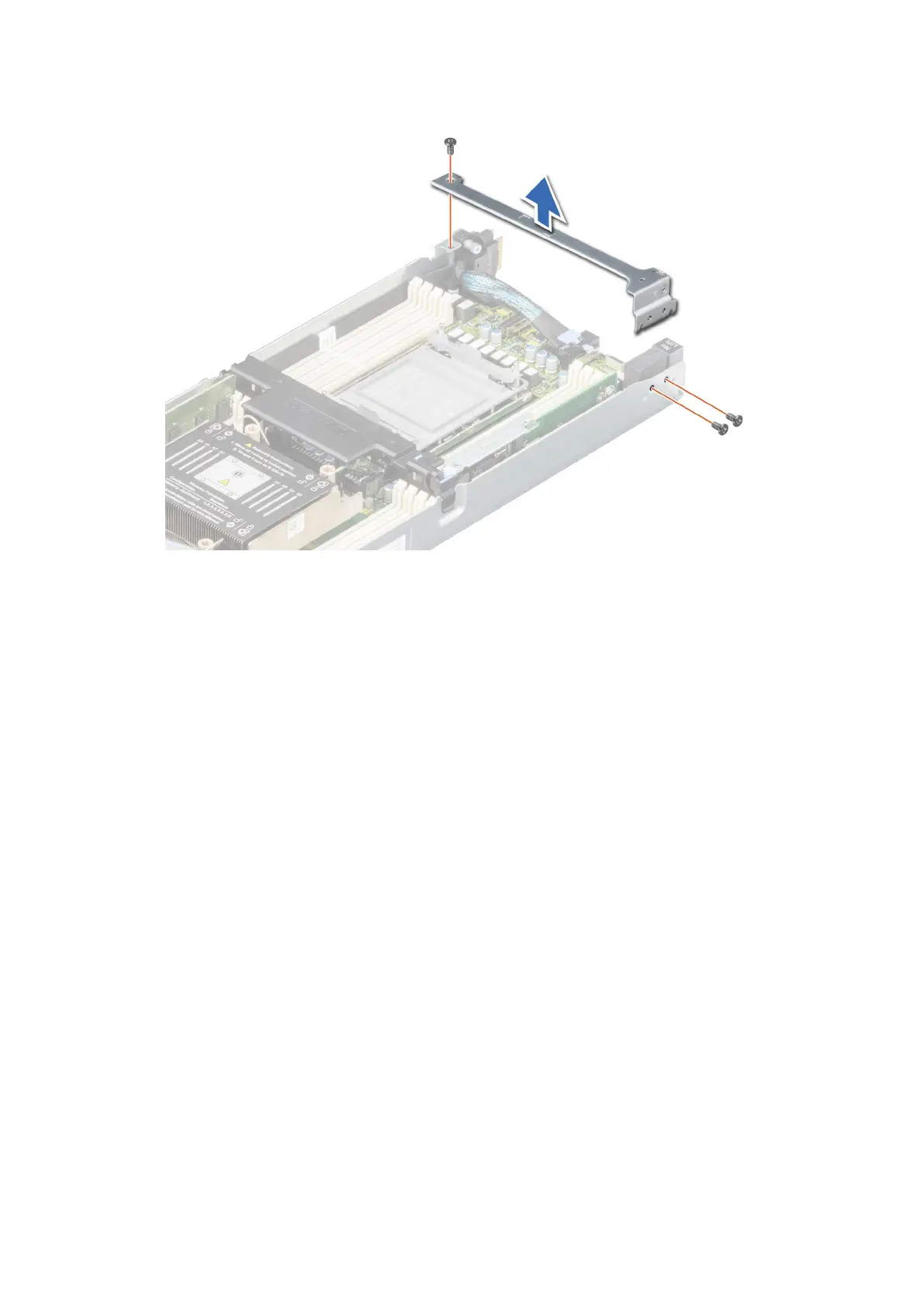

Figure 33. Removing the support bracket
2. Remove the support bracket from the chassis.
Next steps
Replace the support bracket.
Installing the support bracket
Prerequisites
Follow the safety guidelines listed in Safety instructions.
Steps
1. Align the support bracket with the stand off on the chassis.
2. Using a Phillips #1 screwdriver, tighten the screws that secure the support bracket to the chassis.
30
Installing and removing system components
