Next steps
1. Install the expansion card riser.
2. Follow the procedure listed in after working inside your system.
Removing the riser card
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the expansion card riser.
4. If installed, remove the expansion card.
5. If applicable, disconnect the cable from the riser card.
Steps
1. Using a Phillips #2 screwdriver, remove the screws that secure the riser card to the expansion card riser.
2. Remove the riser card from the expansion card riser.
NOTE: The procedure to remove the riser 1B card is similar to removing the riser 1A card.

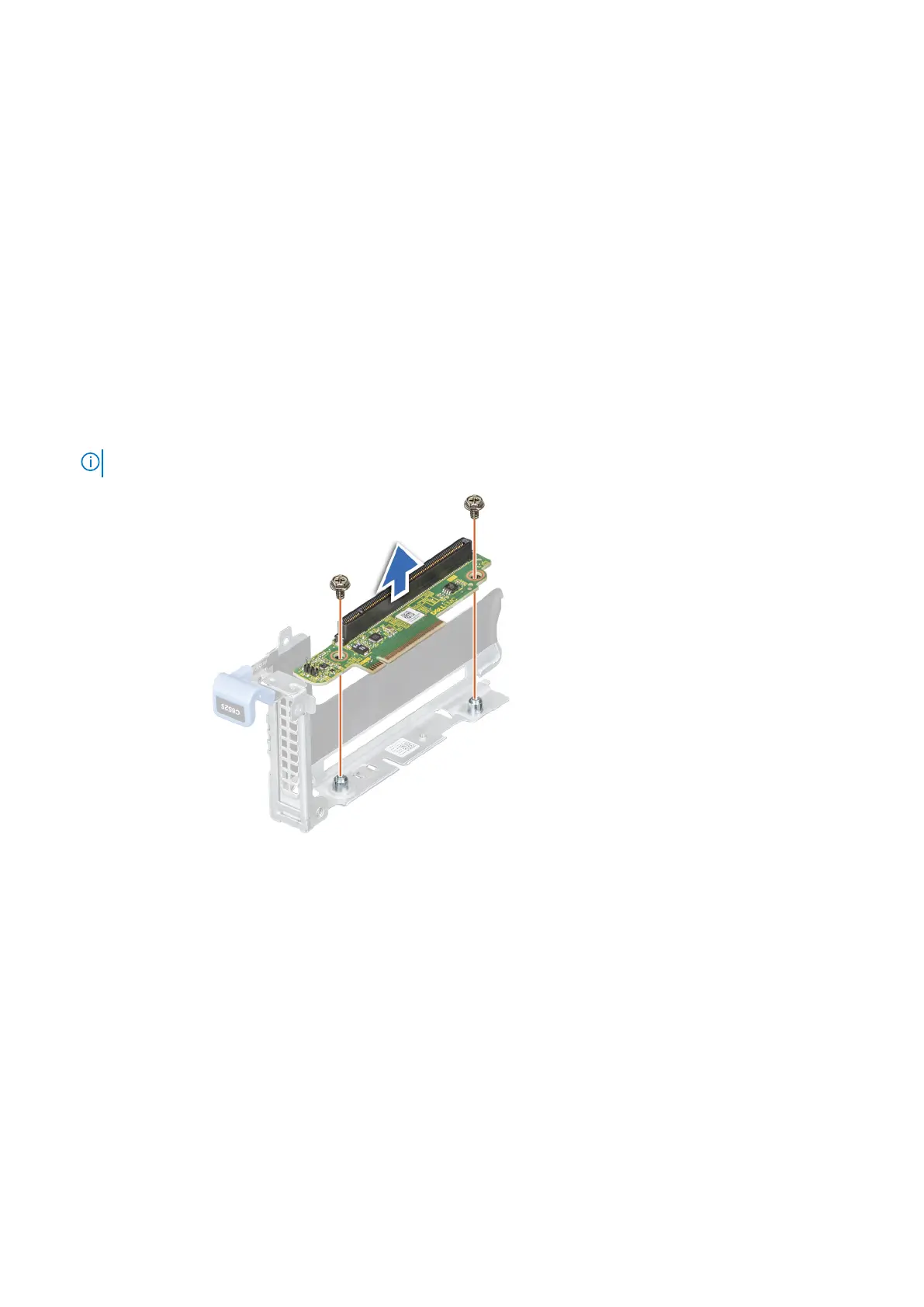

Figure 50. Removing the riser card from riser 1
