Dell EMC PowerEdge MX7000 Installation And Service Manual

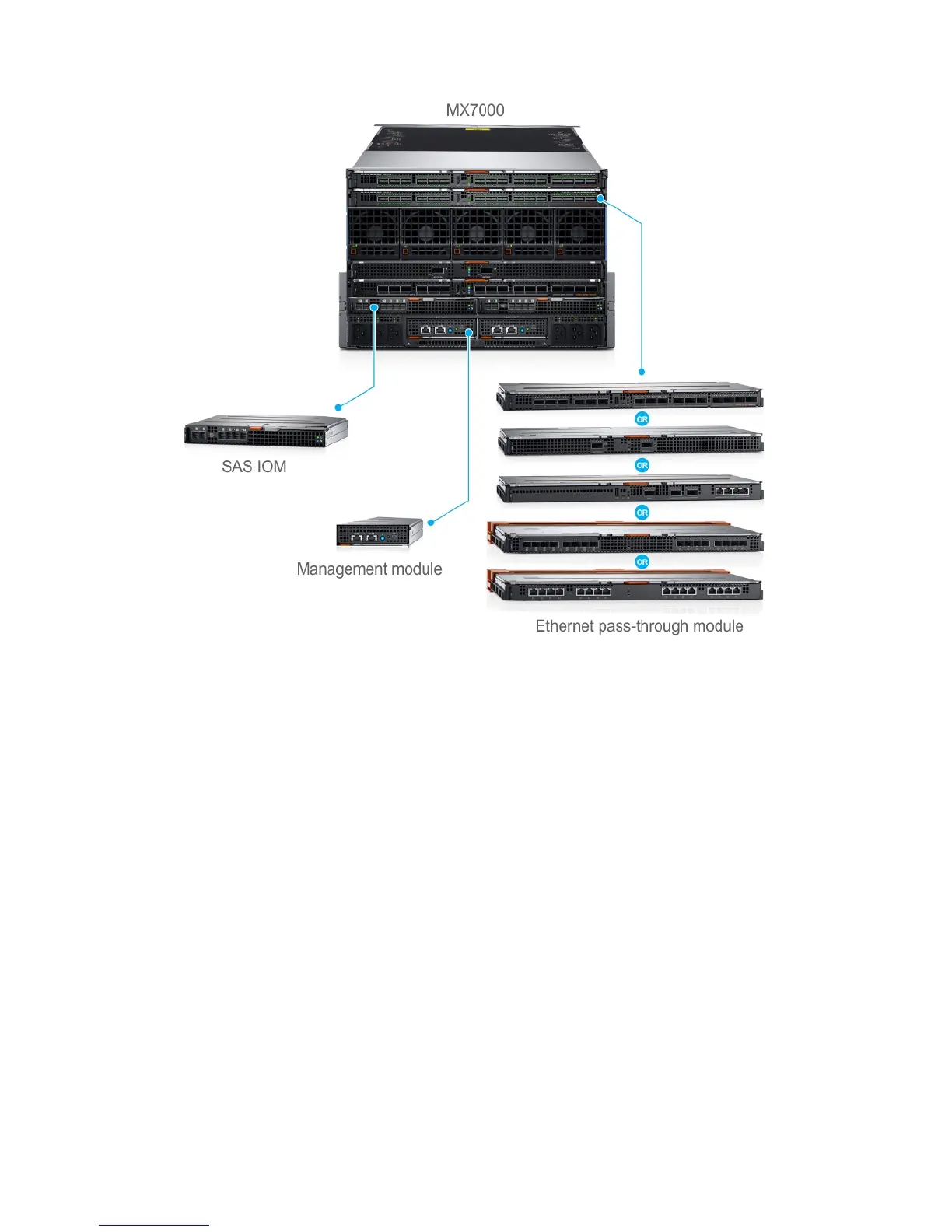

Figure 2. Next Generation Modular - Back view
The Dell EMC PowerEdge MX7000 enclosure supports the following sleds and I/O modules:
• I/O modules -
– Dell EMC Power Networking MX7116n
– Dell EMC Power Networking MX9116n Fabric Switching Engine
– Dell EMC Power Networking MX5108n Ethernet Switch
– Dell EMC Power Networking MXG610s Fibre Channel Switch
– Dell EMC PowerEdge MX5000s SAS Switch
• Ethernet Pass-Through Module -
– Dell EMC PowerEdge MX 10GBASE-T Ethernet Pass-Through Module
– Dell EMC PowerEdge MX 25 Gb Ethernet Pass-Through Module
• MX740c
The PowerEdge MX740c is a single-width compute sled that supports:
– Up to two Intel Xeon Scalable Processors
– Up to 24 DIMM slots
– Up to six 2.5-inch SAS, SATA, SSD, or NVMe drives
• MX840c
The PowerEdge MX840c is a double-width compute sled that supports:
– Up to four Intel Xeon Scalable Processors
8
Next Generation Modular overview

Dell EMC PowerEdge MX7000 Specifications

General

Form Factor	Modular Enclosure
Power Supplies	Up to 6 hot-plug power supply units (PSUs)
Management	Dell EMC OpenManage Enterprise Modular Edition
Enclosure Type	Modular Enclosure
Number of Slots	8 slots
Maximum Number of Compute Sleds	8
Maximum Number of Storage Sleds	8
Maximum Number of Fabric Switching Modules	8
Management Module Slots	2
