Dell EMC VxFlex Ready Node 14G Installation Guide

Identifying the kit components
The sliding rail assemblies allow the server to be secured in the cabinet, and extended from the cabinet so that the
system cover can be removed to access the internal FRUs. The A10 sliding rail assembly (1U) is used for installation of
the VxFlex Ready Node R640. The B13 sliding rail assembly (2U) is used for installation of the VxFlex Ready Node
R740xd.

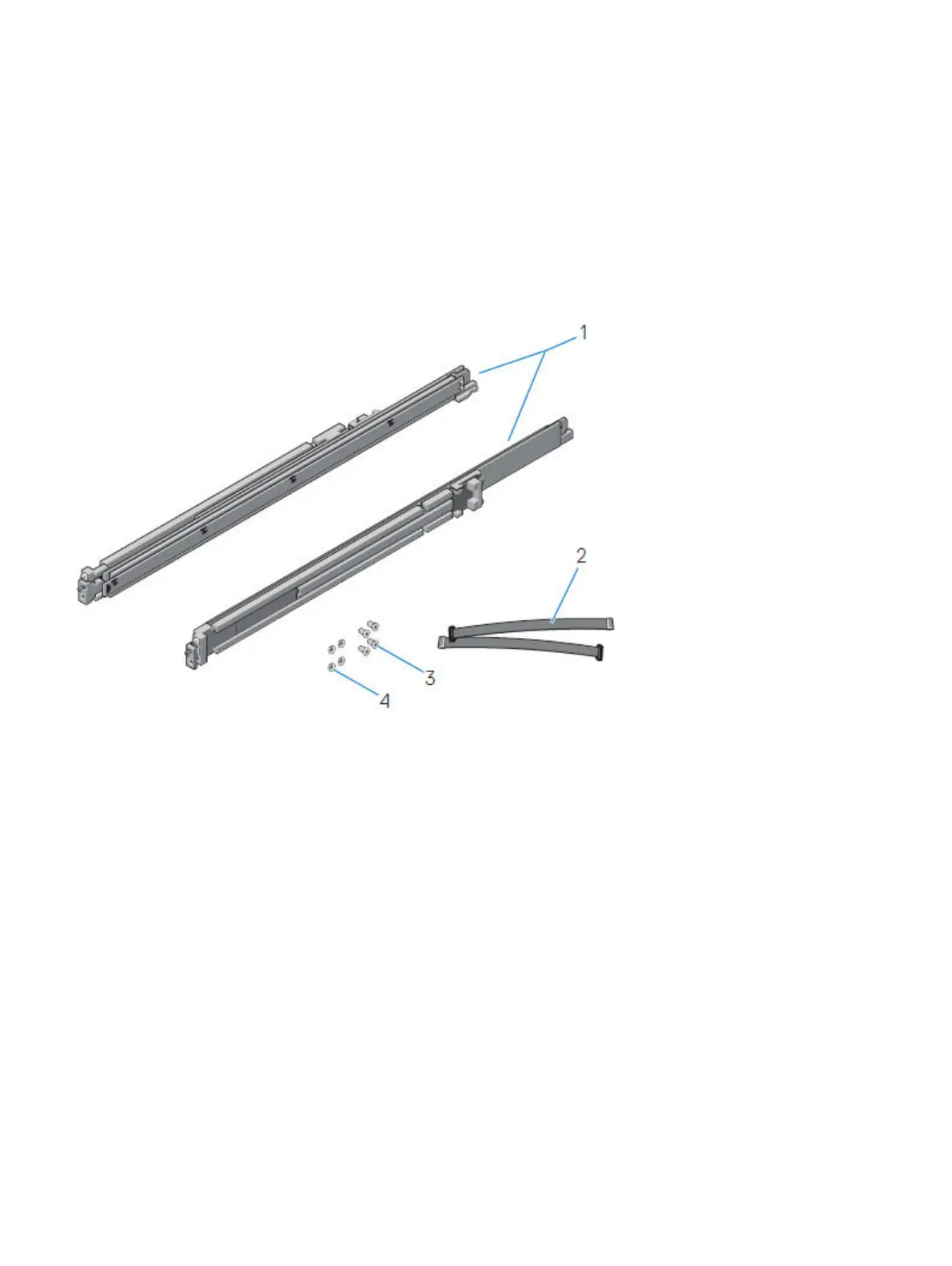

Figure 7 A10 sliding rail assembly - 1U systems
1. A10 sliding rail (2)
2. velcro strap (2)
3. screw (4)
4. washer (4)
R640 Equipment Installation
30 Dell EMC VxFlex Ready Node Server Installation Guide

Dell EMC VxFlex Ready Node 14G Specifications

General

Model	Dell EMC VxFlex Ready Node 14G
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors
Memory	Up to 3TB DDR4
Storage	SSD
Drive Bays	2.5"
Network	1GbE, 10GbE
RAID Controller	PERC H740P
Power Supply	Redundant power supplies
