PS6610 Hardware Owner's Manual 1 Basic Storage Array Information

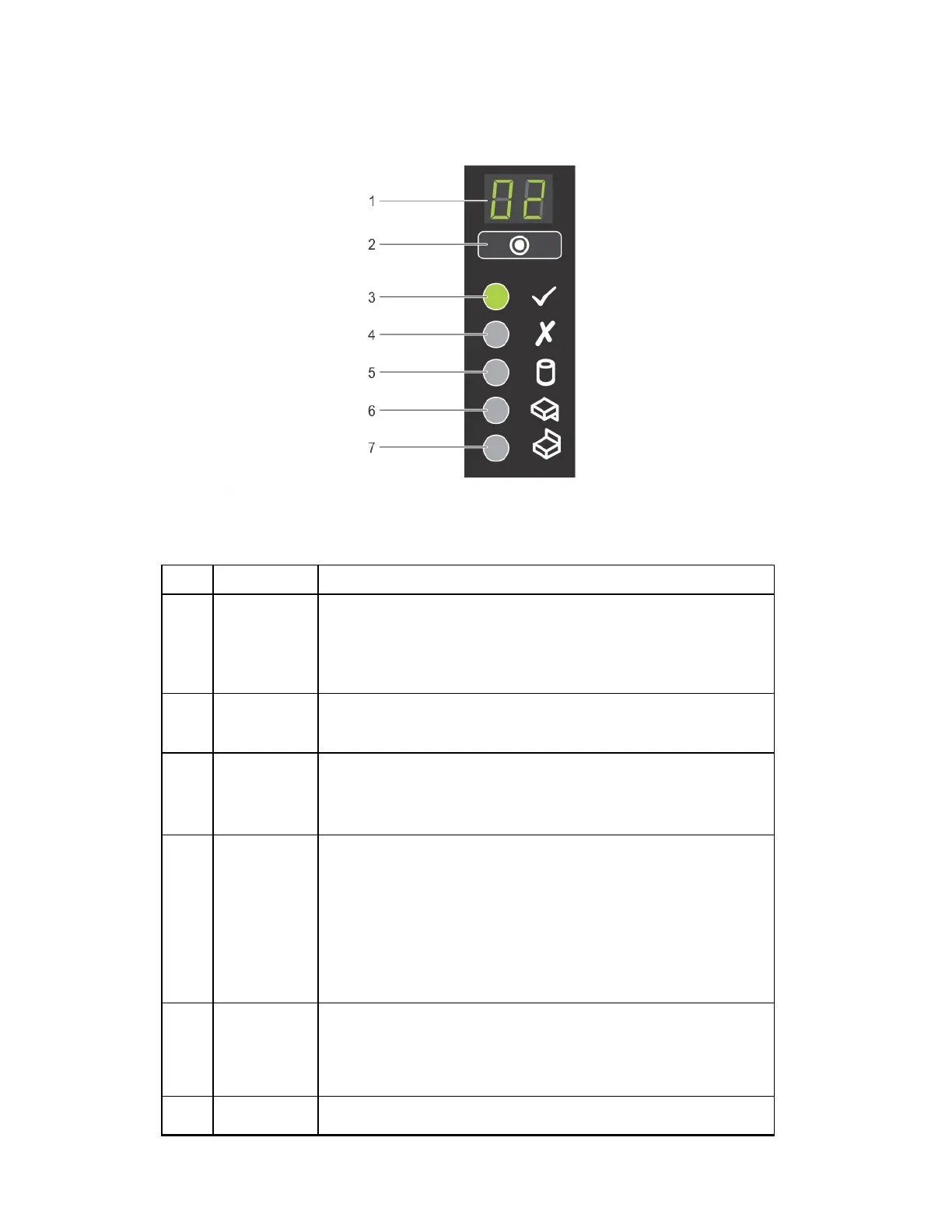

Figure 4: Enclosure Status Indicator
Table 3: Enclosure Status Indicator Description
Item Indicator
1 Enclosure
Status
Indicator
2 Input
Switch
3 Power
On/Standby
4 Module
Fault
5 Logical
Status
6 Drawer 1
Description
Unit ID Display — A numerical display whose primary function
is to display the enclosure unit identification number. This display
can be helpful when setting up and maintaining a multiple-
enclosure storage center.
Used to set the Unit ID Display
Off — The enclosure does not have power
Green — The enclosure is on (operational)
Amber — The enclosure is in standby mode (not operational)
Indicates the current health condition of the array:
• Off — No faults
• Amber (blinking) — Warning condition
• Amber (steady) — Critical condition that might be set by
either a hardware fault or a RAID double-fault condition or
similar error. Additionally, an LED might be lit on a PSU,
drawer, DDIC, fan module, or IO module indicating the part at
fault.
Indicates a drive fault. The LED lights up amber when there is a
drive fault of some kind. A fault LED will also be lit on the
offending drive(s) in the system, and the sideplane status indicator
will show a logical fault.
Amber when a drive, cable, or sideplane fault has occurred in
