PS4210 Hardware Owner's Manual
2 Maintaining Drives
Installing a 2.5-inch Drive
The 2.5-inch drives are installed vertically, with the drive release latch on the top and the drive label on the
bottom.
1. Wear electrostatic protection when handling a drive. See Protecting Hardware on page 1.
2. Open the drive release latch.
3. Hold the drive by the carrier and slide the drive most of the way into a slot (callout 1 in Figure 9).
4. Push the drive completely into the slot (callout 2). The drive handle will begin to close onto the drive (callout
3).
5. Push in the handle until you hear a click (callout 4).

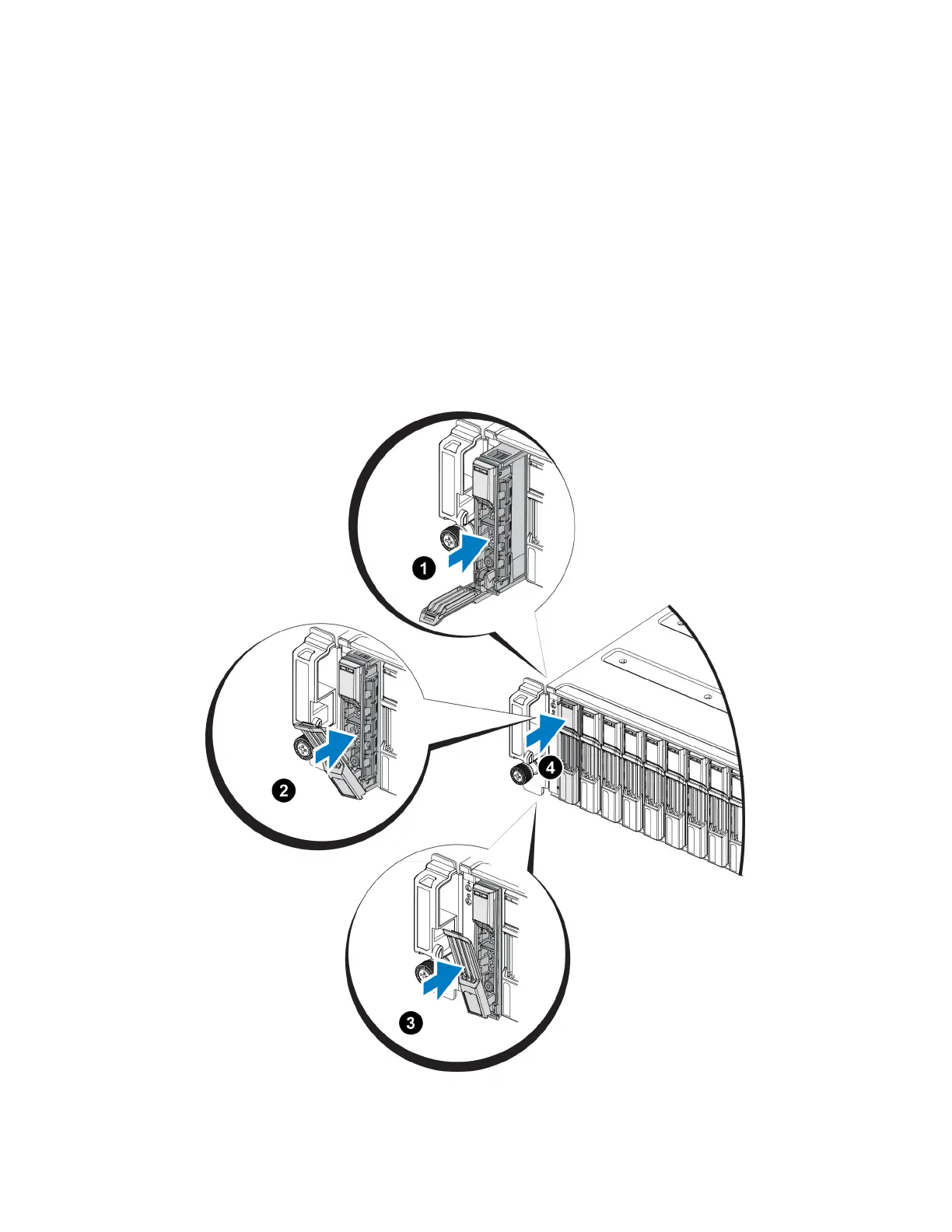

Figure 9: Installing a 2.5-inch Drive
11
