PowerEdge R210 Technical Guide 17

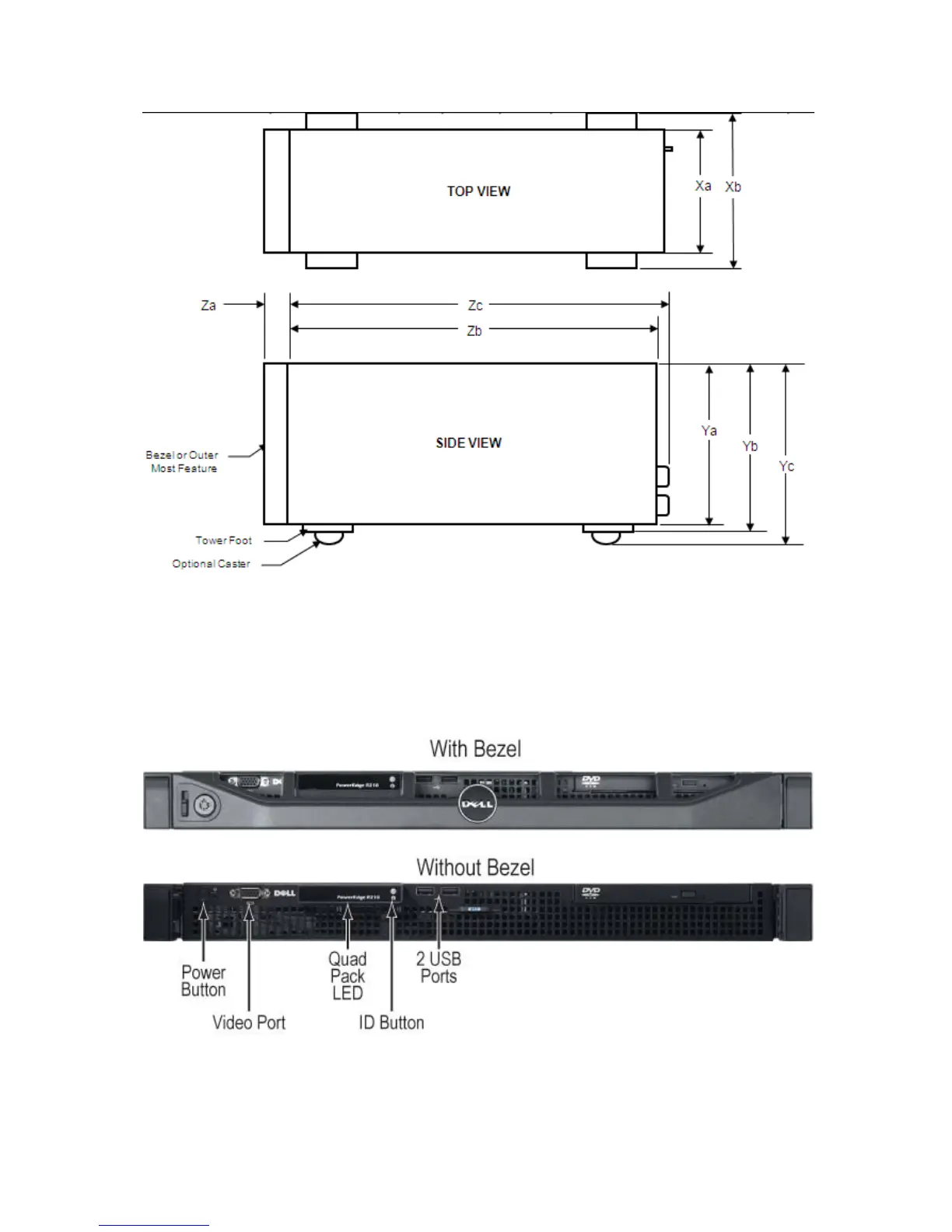

Figure 1. Server Dimensions
* Zb goes to the nominal rear wall external surface where the motherboard I/O connectors
reside.
4.3 Front Panel View and Features
Figure 2. Front Panel View
