Steps
1. Align and place the left fan on the palm-rest and keyboard assembly.
2. Replace the two (M2x3) screws to secure the left fan to the palm-rest and keyboard assembly.
3. Route the antenna cables through the routing guides on the left fan.
4. Connect the left-fan cable to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Right fan
Installing the right fan
Prerequisites
If your are replacing a component, remove the existing component before performing the installation procedure.
About this task

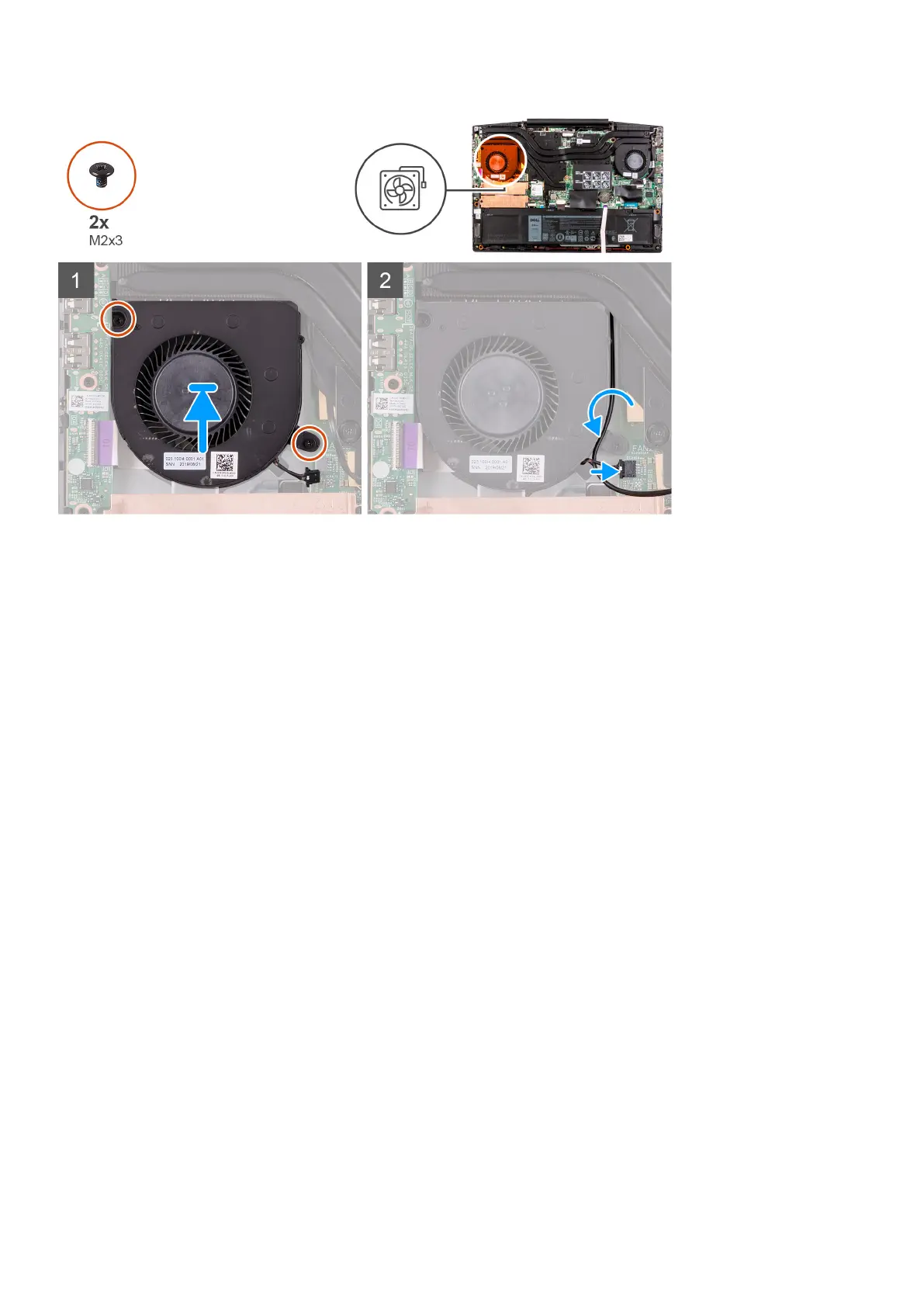

The following image indicates the location of the right fan and provides a visual representation of the installation procedure.
