Installing the palm-rest and keyboard assembly
Prerequisites
If your are replacing a component, remove the existing component before performing the installation procedure.
About this task

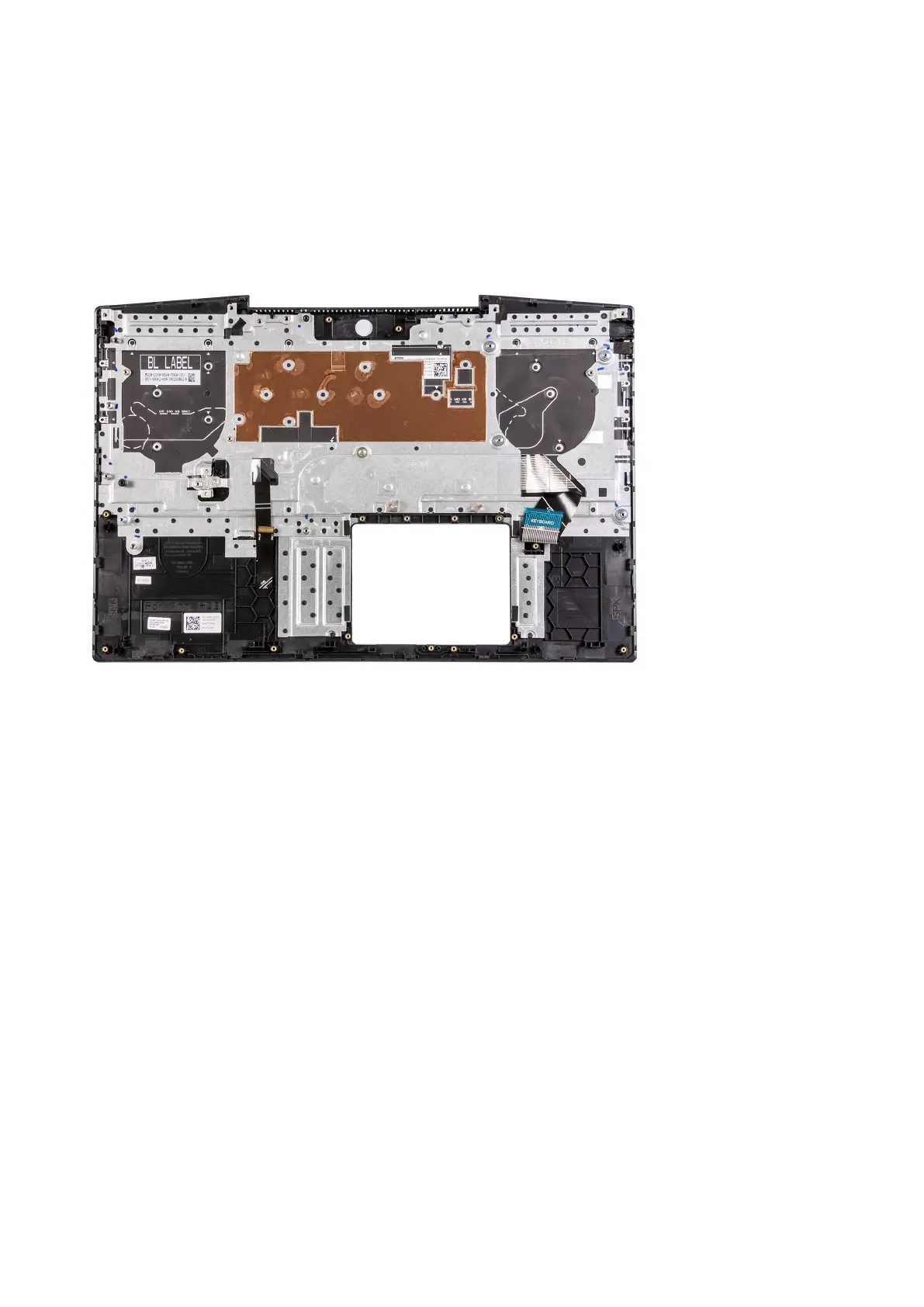

Place the palm-rest and keyboard assembly on a flat surface.
Next steps
1. Install the fingerprint reader.
2. Install the touchpad.
3. Install the system board.
4. Install the power-adapter port.
5. Install the I/O board.
6. Install the speakers.
7. Install the heat sink.
8. Install the left fan.
9. Install the right fan.
10. Install the coin-cell battery.
11. Install the display assembly.
12. Install the battery.
13. Install the solid-state drive in M.2 slot two.
14. Install the solid-state drive in M.2 slot one.
15. Install the WLAN card.
16. Install the memory module.
17. Install the base cover.
18. Follow the procedure in After working inside your computer.
