Dell G3 3500 - Installing the Display Assembly

Installing the display assembly
Prerequisites
If your are replacing a component, remove the existing component before performing the installation procedure.
About this task

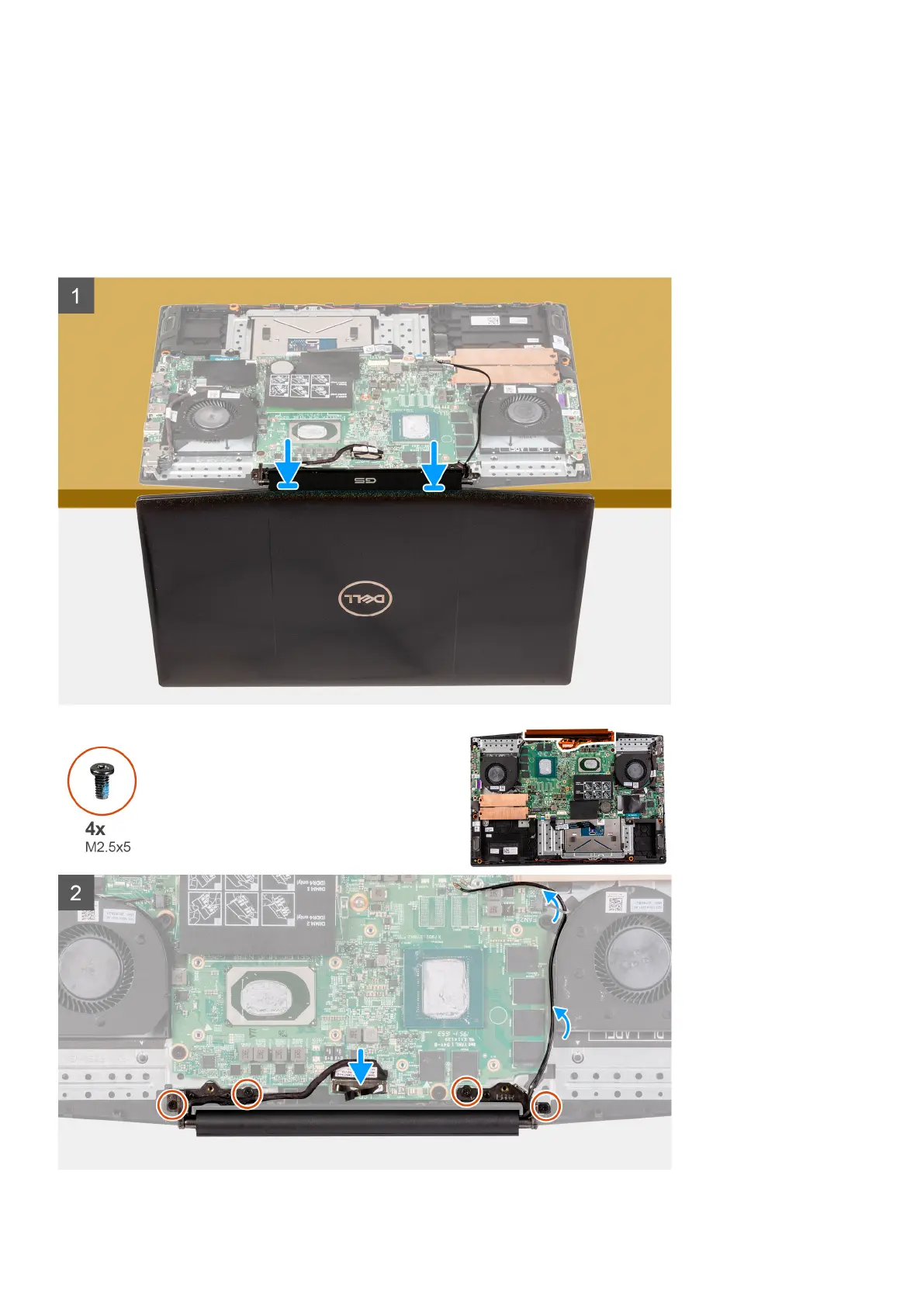

The following image indicates the location of the display assembly and provides a visual representation of the installation procedure.
46 Removing and installing components
