Steps

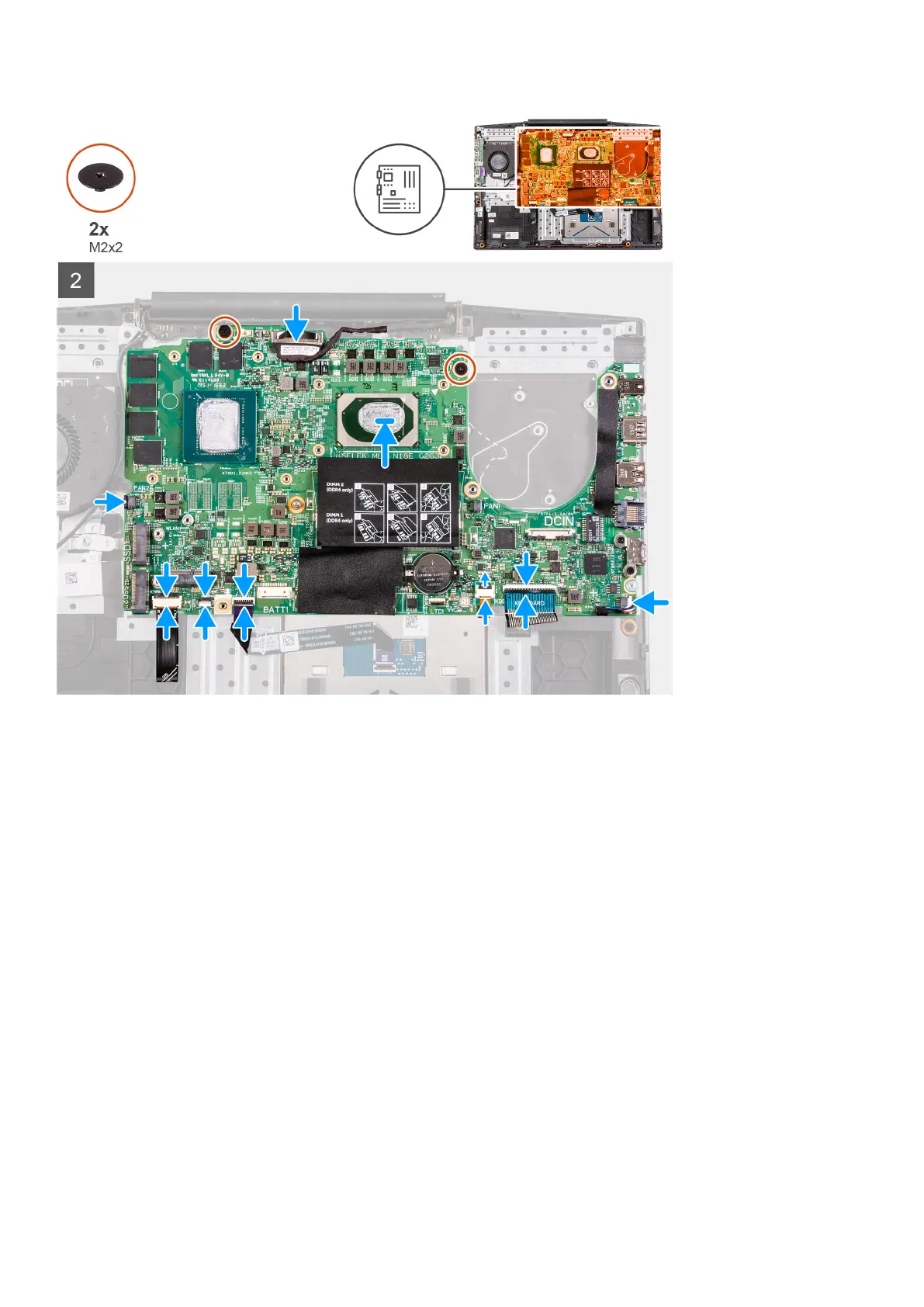

1. Connect the I/O-board cable to the back of the system board.
2. Turn the system board over, align and place the system board on the palm-rest and keyboard assembly.
3. Connect the display cable to the system board.
4. Connect the keyboard-backlight cable (optional) to the system board, and close the latch.
5. Connect the fingerprint-reader cable (optional) to the system board, and close the latch.
6. Connect the touchpad cable to the system board, and close the latch.
7. Connect the keyboard-backlight cable (optional) to the system board, and close the latch.
8. Connect the keyboard cable to the system board, and close the latch.
9. Connect the speaker cable to the system board.
10. Replace the two (M2x2) screws that secure the system board to the palm-rest and keyboard assembly.
Next steps
1. Install the power-adapter port.
2. Install the heat sink.
3. Install the left fan.
4. Install the right fan.
5. Install the coin-cell battery.
6. Install the battery.
7. Install the solid-state drive in M.2 slot two.
8. Install the solid-state drive in M.2 slot one.
9. Install the WLAN card.
50
Removing and installing components
