Replacing the speakers
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
NOTE: If the rubber grommets are pushed out of the speakers when removing the speakers, push them back in place before
replacing the speakers.

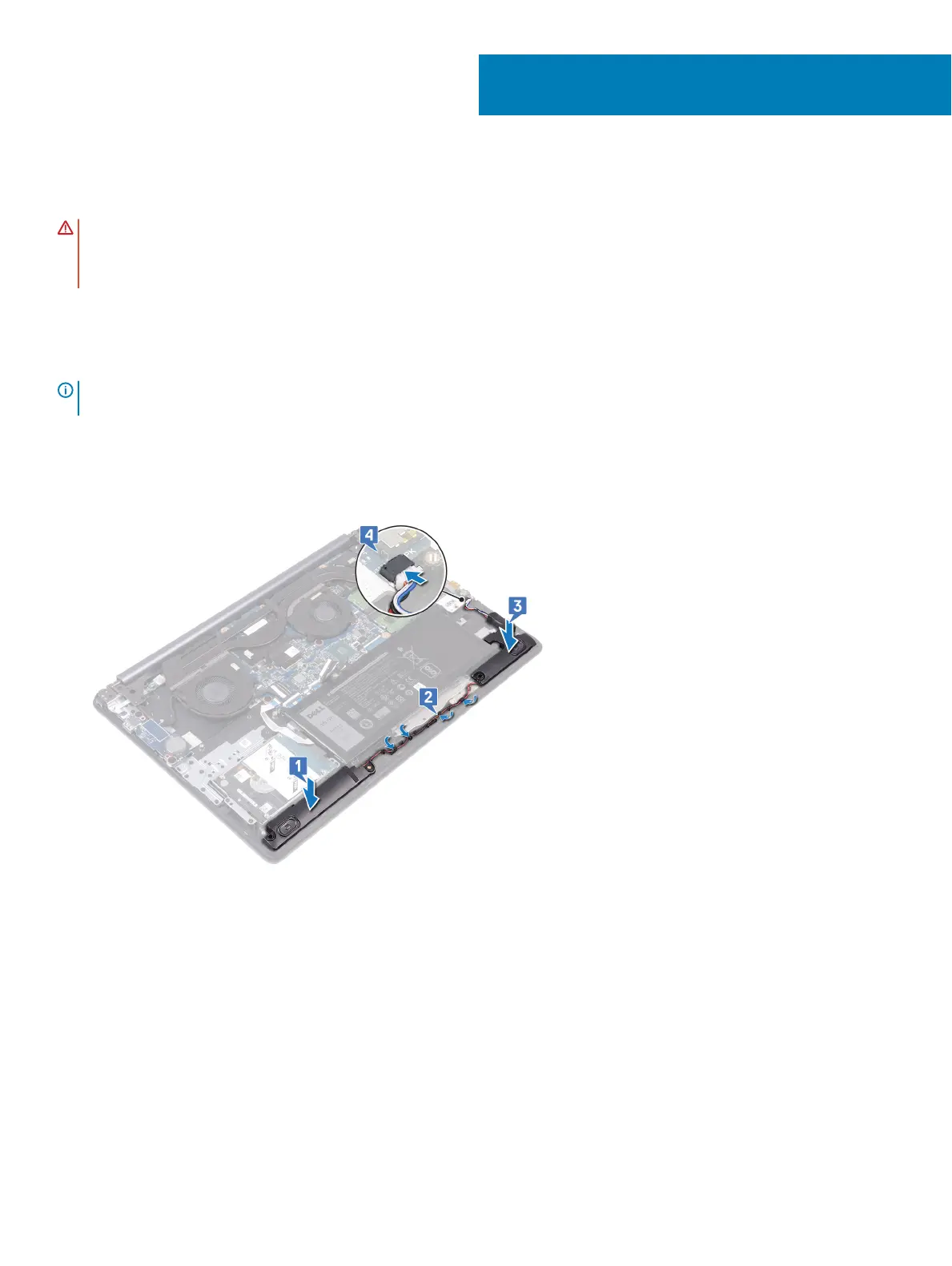

1 Using the alignment posts and rubber grommets, place the left speaker in the slots on the palm rest and keyboard assembly.
2 Route the speaker cable through the routing guides on the palm rest and keyboard assembly.
3 Replace the right speaker.
4 Connect the speaker cable to the system board.
Post-requisites
Replace the base cover.
