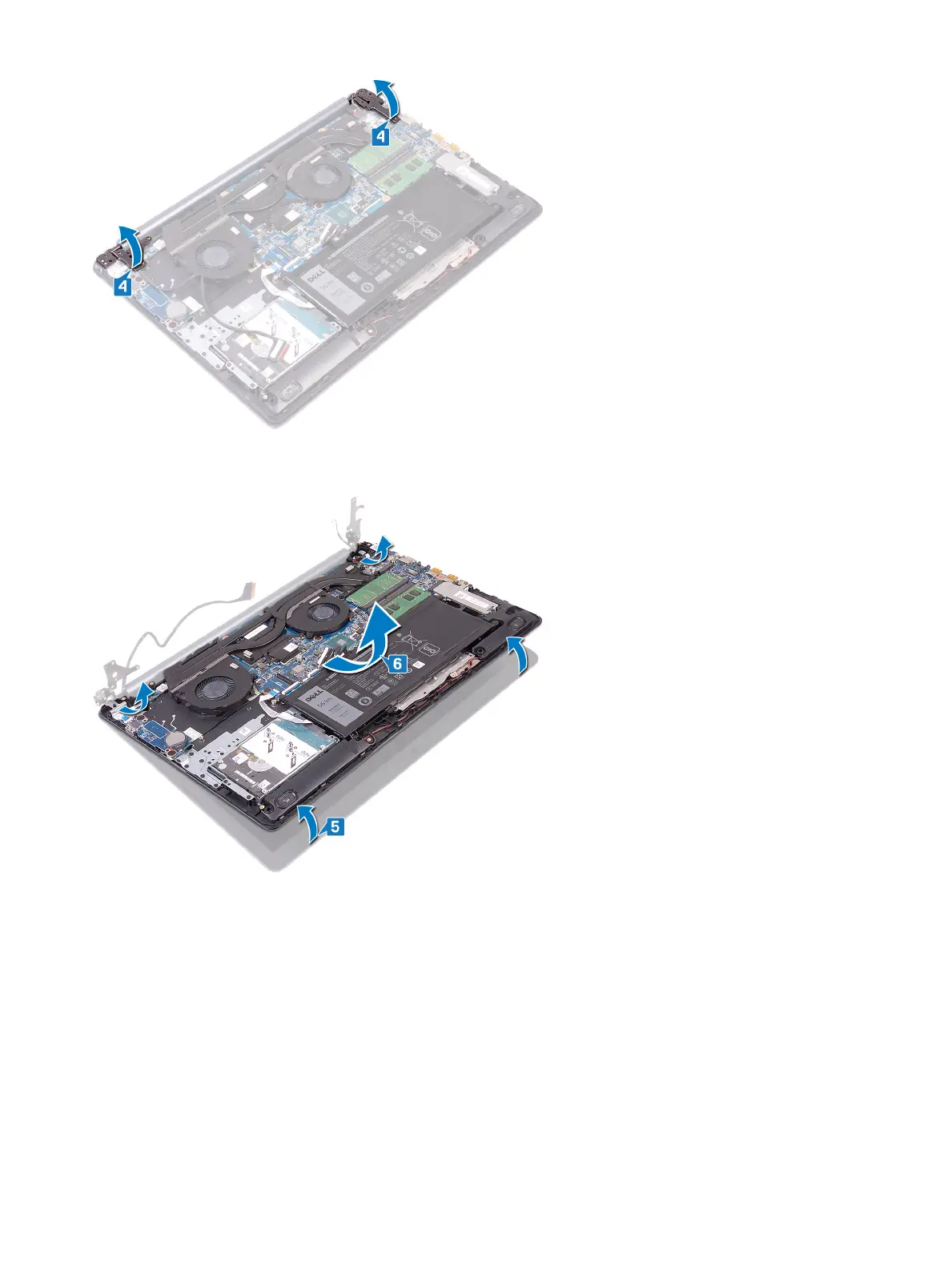

5 Lift the palm rest and keyboard assembly at an angle.

6 Slide and remove the palm rest and keyboard assembly o the display assembly.

7 After performing all these steps, you are left with the display assembly.

Removing the display assembly
