Steps

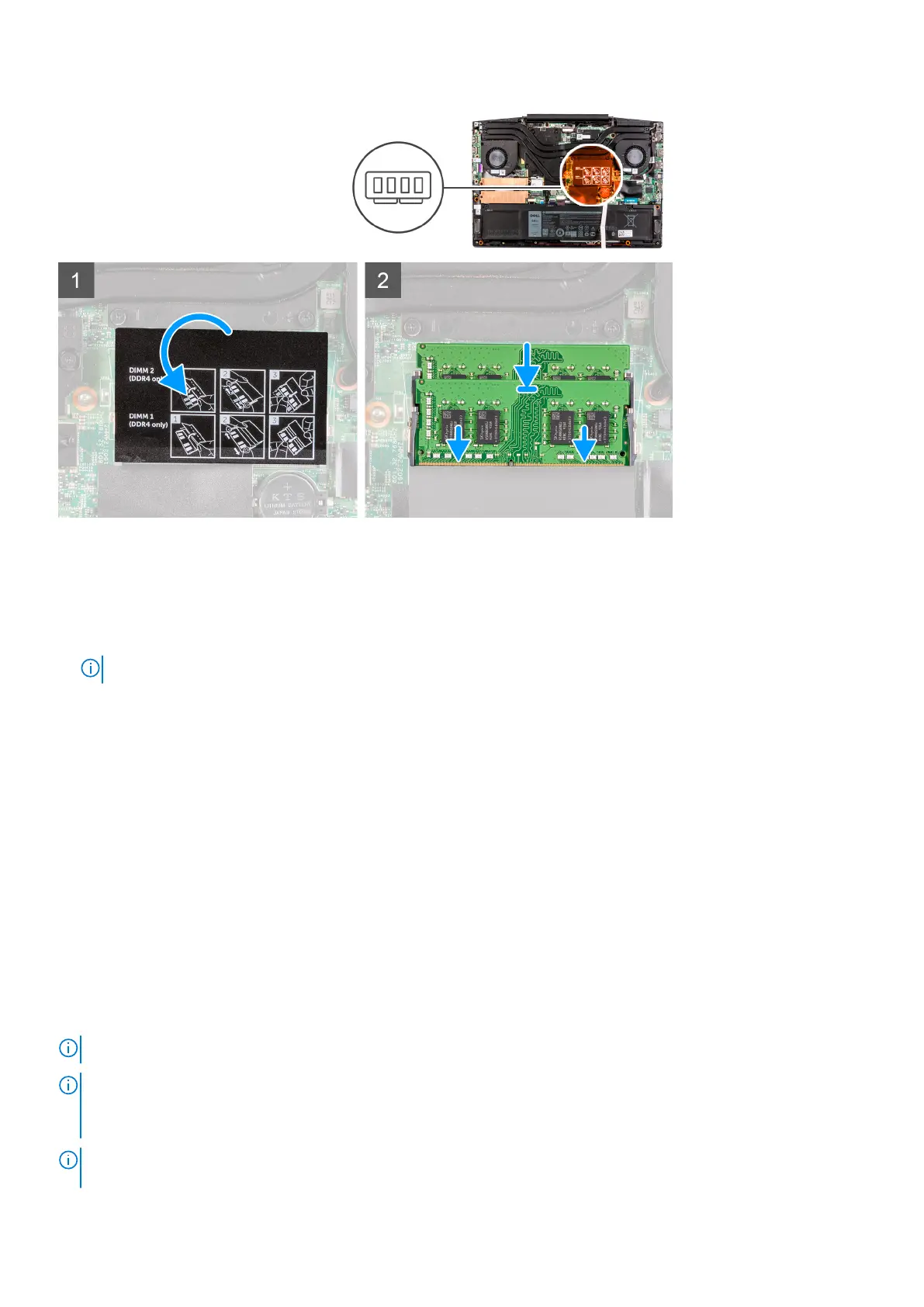

1. Turn the mylar to find the memory-module slot.
2. Align the notch on the memory module with the tab on the memory-module slot.
3. Slide the memory module firmly into the slot at an angle.
4. Press the memory module down until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and reinstall it.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Solid-state drive—M.2 slot one
Removing the 2230 solid-state drive in M.2 slot one
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: This procedure applies only to computers shipped with a 2230 solid-state drive installed in M.2 slot one.
NOTE: Depending on the configuration ordered, your computer may be shipped with one of the following:
● One hard drive and one 2230 or 2280 solid-state drive
● One 2230 solid-state drive and one 2280 solid-state drive
NOTE: Depending on the configuration ordered, your computer may support either 2230 solid-state drive or 2280 solid-
state drive in M.2 slot one.
