Removing the power and volume-buttons
board
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
1. Remove the base cover.
2. Remove the battery.
Procedure
1. Disconnect the coin-cell battery cable from the I/O board.
2. Disconnect the power and volume-buttons board cable from the I/O board.
3. Remove the power and volume-buttons board cable from the routing guides on the palm rest and keyboard assembly and the speaker.
4. Remove the screw (M2x3) that secures the power and volume-buttons board to the palm rest and keyboard assembly.
5. Lift the power and volume-buttons board along with its cable off the palm rest and keyboard assembly.

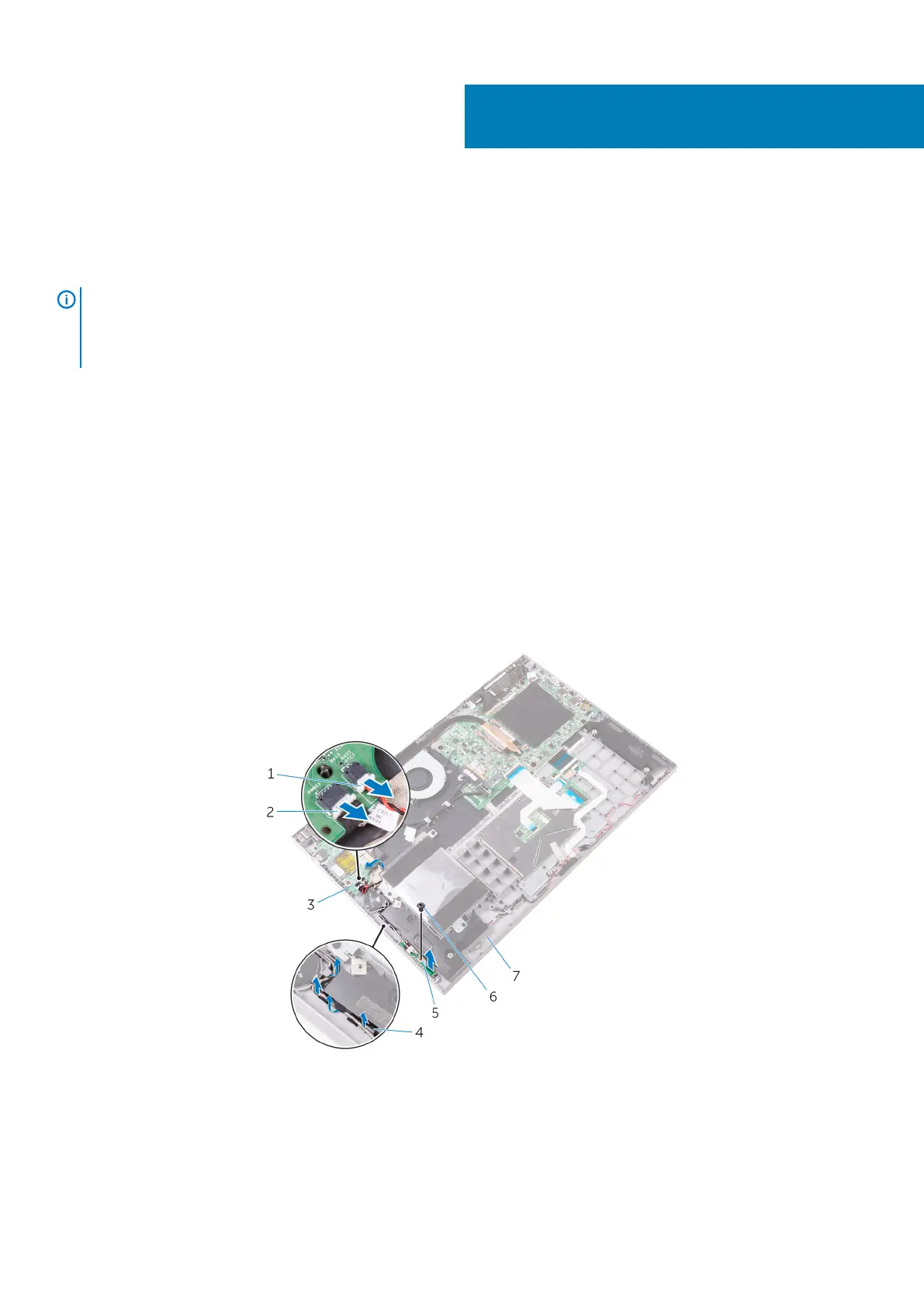

Figure 27. Removing the power and volume-buttons board
1.
coin-cell battery cable 2. power and volume-buttons board cable
3. I/O board 4. routing guides
5. power and volume-buttons board 6. screw
7. palm rest and keyboard assembly
29
46 Removing the power and volume-buttons board
