Dell Inspiron Mini 1012 User Manual

Back to Contents Page

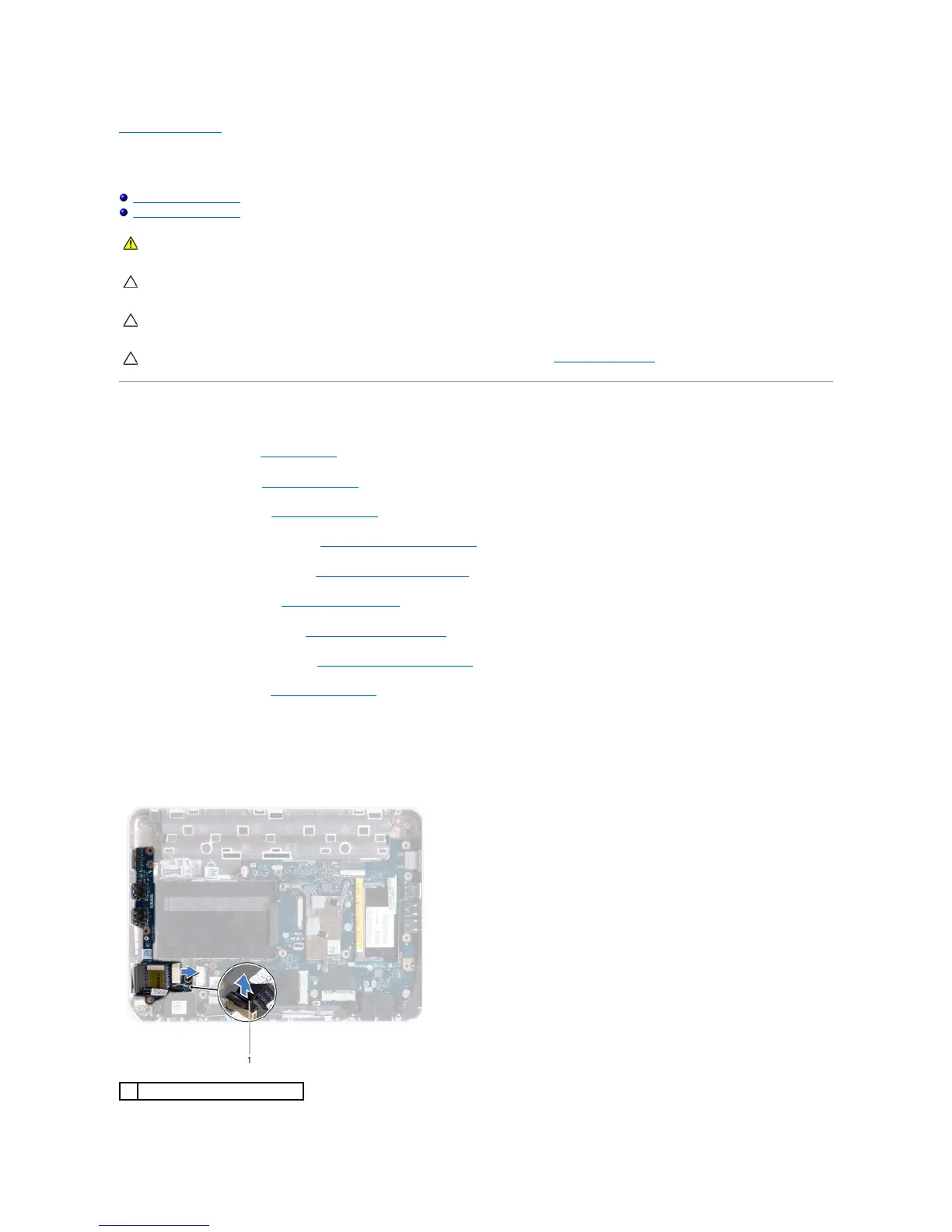

 I/O Board
Dell™Inspiron™1012ServiceManual
Removing the I/O Board
Replacing the I/O Board



Removing the I/O Board

1. Follow the procedures in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the keyboard (see Removing the Keyboard).

4. Remove the hard-drive assembly (see Removing the Hard-Drive Assembly).

5. Remove the palm rest assembly (see Removing the Palm Rest Assembly).

6. Remove the hinge cover (see Removing the Hinge Cover).

7. Remove the display assembly (see Removing the Display Assembly).

8. Remove the left support bracket (see Removing the Left Support Bracket).

9. Remove the speakers (see Removing the Speakers).

10. Press and eject any installed card or blank from the 3-in-1 Media Card Reader.

11. Lift the locking tab and pull the pull-tab on the status light board cable and disconnect the cable from the connector on the I/O board.

12. Disconnect the I/O board cable from the connector on the I/O board.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
1
status light board cable

Dell Inspiron Mini 1012 Specifications

General

Bus type	DMI
Stepping	A0
Tjunction	100 °C
Processor cache	0.512 MB
Processor cores	1
System bus rate	- GT/s
Processor family	Intel Atom®
Processor series	Intel Atom N400 Series
Processor socket	BGA 559
Processor threads	2
Processor codename	Pineview
Processing Die size	66 mm²
Processor frequency	1.66 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	5.5 W
CPU multiplier (bus/core ratio)	10
Number of Processing Die Transistors	123 M
Memory slots	1x SO-DIMM
Internal memory	1 GB
Memory clock speed	667 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR2-SDRAM
Maximum internal memory	2 GB
Memory layout (slots x size)	1 x 1 GB
HDD size	2.5 \
HDD speed	5400 RPM
HDD interface	SATA
Storage media	HDD
Card reader integrated	Yes
Total storage capacity	160 GB
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC
HD type	Not supported
Pixel pitch	0.2175 x 0.2088 mm
Display diagonal	10.1 \
Display brightness	200 cd/m²
Display resolution	1024 x 600 pixels
Native aspect ratio	5:3
Video capturing speed	30 fps
Front camera resolution	640 x 480 pixels
Front camera resolution (numeric)	1.3 MP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Audio system	HD
Speaker power	1 W
Operating system installed	Windows 7 Starter
Cable lock slot type	Kensington
Form factor	Clamshell
Product type	Laptop
Product color	Black
Charging port type	DC-in jack
HDMI ports quantity	0
USB 2.0 ports quantity	3
Battery voltage	11.1 V
Battery capacity	2600 mAh
Battery life (max)	9.5 h
Battery recharge time	4 h
Number of battery cells	6
Pointing device	Touchpad
Processor code	SLBMG
Processor ARK ID	42503
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
On-board graphics card model	-
Motherboard chipset	Intel® NM10 Express
AC adapter power	30 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1.58 A
AC adapter output voltage	19 V
Operating shock	110 G
Operating altitude	-15.2 - 3048 m
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating altitude	-15.2 - 10668 m
Non-operating vibration	1.3 G
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	197 mm
Width	268 mm
Weight	1370 g
Height (rear)	32.8 mm
Height (front)	25.5 mm
