Dell Inspiron Mini 1012 User Manual



10. Using a plastic scribe carefully pry out the palm rest assembly along the rear edge and then ease the palm rest assembly from the computer base.

11. Lift the palm rest assembly off the computer base.
Replacing the Palm Rest Assembly

1. Follow the procedures in Before You Begin.

2. Align the palm rest assembly on the computer base and gently snap the palm rest assembly into place.

3. Slide the touch pad cable into the connector on the system board and, press down on the locking tab to secure the touch pad cable.

4. Connect the power button cable to the connector on the system board.

5. Replace the three screws that secure the palm rest assembly to the computer base.

6. Replace the hard-drive assembly (see Replacing the Hard-Drive Assembly).

7. Replace the keyboard (see Replacing the Keyboard).

8. Turn the computer over and replace the four screws that secure the palm rest assembly to the computer base.

9. Replace the battery (see Replacing the Battery).

1

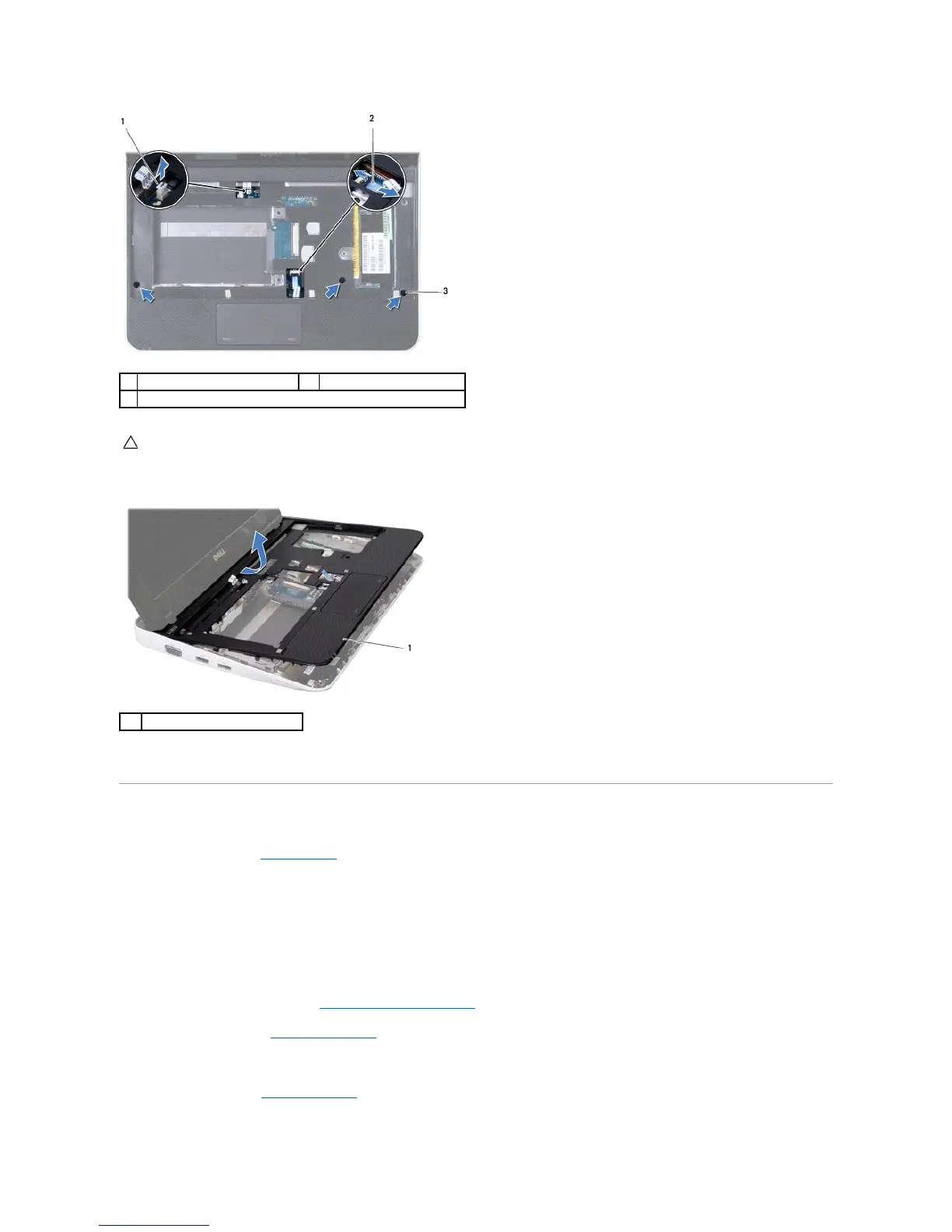

power button cable connector
2
touch pad cable
3
screws(3)
CAUTION: Carefully separate the palm rest assembly from the computer base to avoid damage to the palm rest assembly.
1
palm rest assembly

Dell Inspiron Mini 1012 Specifications

General

Bus type	DMI
Stepping	A0
Tjunction	100 °C
Processor cache	0.512 MB
Processor cores	1
System bus rate	- GT/s
Processor family	Intel Atom®
Processor series	Intel Atom N400 Series
Processor socket	BGA 559
Processor threads	2
Processor codename	Pineview
Processing Die size	66 mm²
Processor frequency	1.66 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	5.5 W
CPU multiplier (bus/core ratio)	10
Number of Processing Die Transistors	123 M
Memory slots	1x SO-DIMM
Internal memory	1 GB
Memory clock speed	667 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR2-SDRAM
Maximum internal memory	2 GB
Memory layout (slots x size)	1 x 1 GB
HDD size	2.5 \
HDD speed	5400 RPM
HDD interface	SATA
Storage media	HDD
Card reader integrated	Yes
Total storage capacity	160 GB
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC
HD type	Not supported
Pixel pitch	0.2175 x 0.2088 mm
Display diagonal	10.1 \
Display brightness	200 cd/m²
Display resolution	1024 x 600 pixels
Native aspect ratio	5:3
Video capturing speed	30 fps
Front camera resolution	640 x 480 pixels
Front camera resolution (numeric)	1.3 MP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Audio system	HD
Speaker power	1 W
Operating system installed	Windows 7 Starter
Cable lock slot type	Kensington
Form factor	Clamshell
Product type	Laptop
Product color	Black
Charging port type	DC-in jack
HDMI ports quantity	0
USB 2.0 ports quantity	3
Battery voltage	11.1 V
Battery capacity	2600 mAh
Battery life (max)	9.5 h
Battery recharge time	4 h
Number of battery cells	6
Pointing device	Touchpad
Processor code	SLBMG
Processor ARK ID	42503
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
On-board graphics card model	-
Motherboard chipset	Intel® NM10 Express
AC adapter power	30 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1.58 A
AC adapter output voltage	19 V
Operating shock	110 G
Operating altitude	-15.2 - 3048 m
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating altitude	-15.2 - 10668 m
Non-operating vibration	1.3 G
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	197 mm
Width	268 mm
Weight	1370 g
Height (rear)	32.8 mm
Height (front)	25.5 mm
