2. Align the screw hole on the SSD card with the screw hole on the system board.
3. Replace the M2x3 screw that secures the SSD card to the system board.
4. Install the:
a. battery
b. base cover
5. Follow the procedure in After working inside your computer.
Keyboard lattice and Keyboard
Removing keyboard
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery

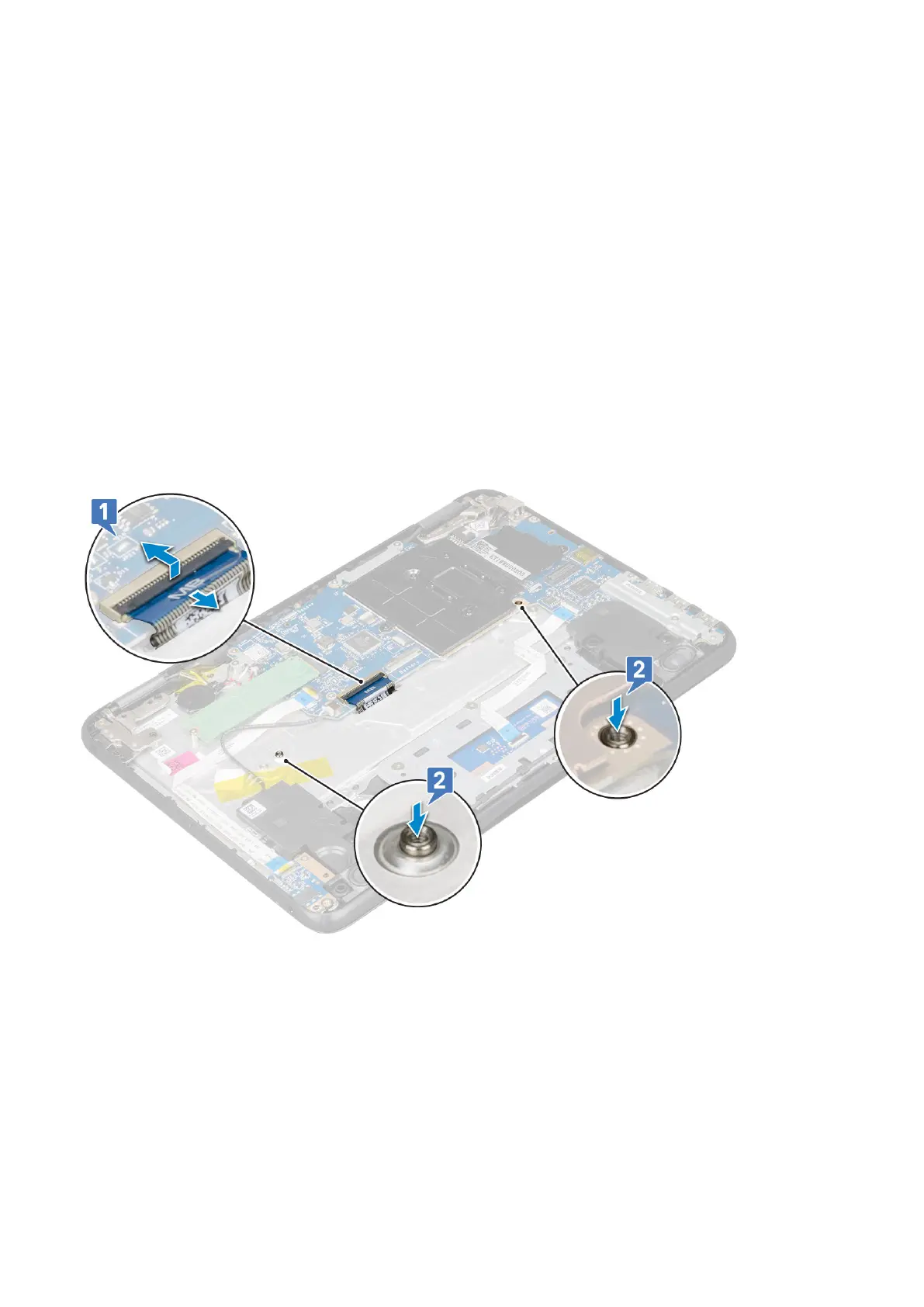

3. Disconnect the keyboard cable from the connector on the system board [1].
4. Hold the sides of the palm rest securely while pushing into the two release holes using a plastic scribe or screwdriver [2].
5. Pry the bottom of the keyboard using a plastic scribe to the release the keyboard [1] and slide the keyboard outwards to
remove it [2].
Disassembly and reassembly
29
