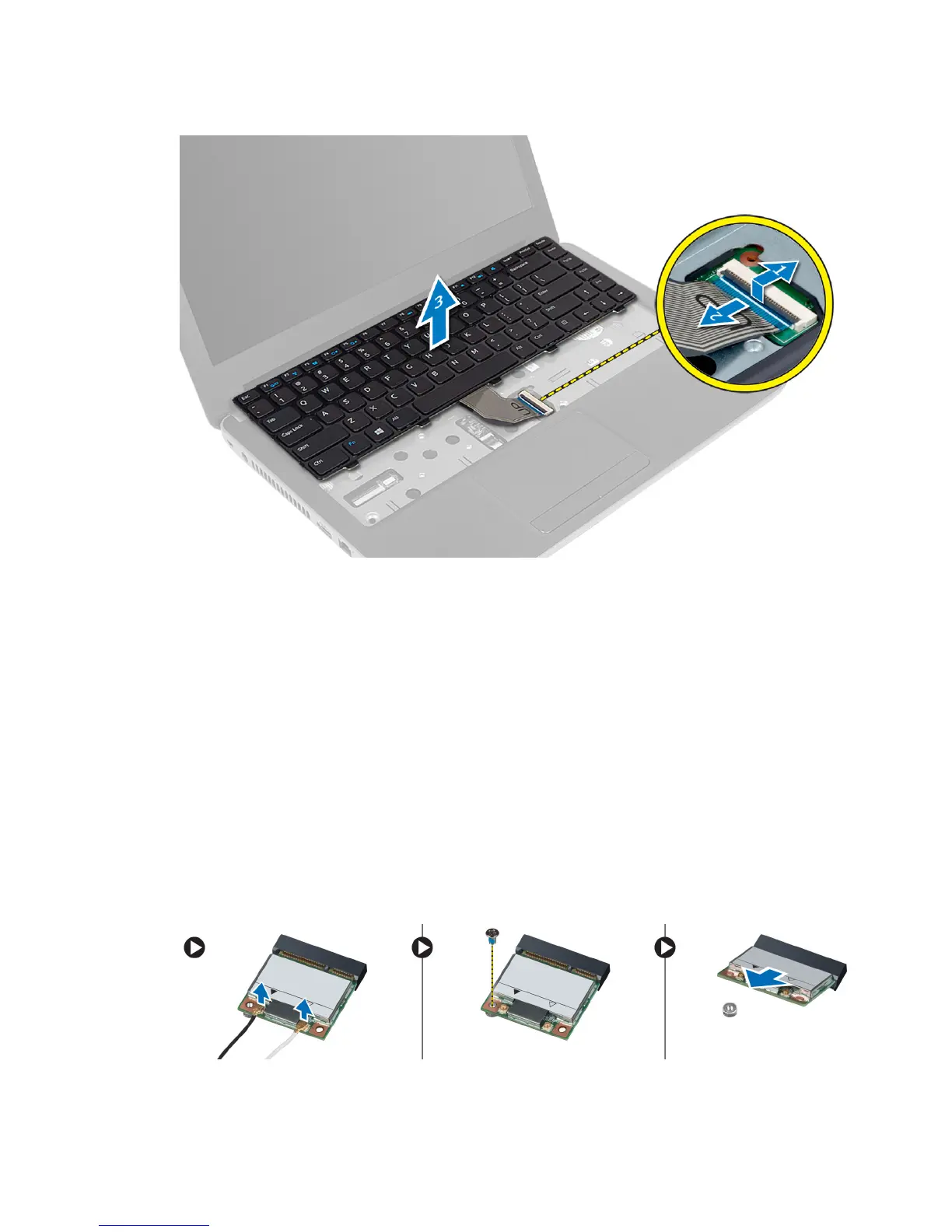

5. Disconnect the keyboard cable from the system board and lift it up to remove it from the computer.
Installing the Keyboard
1. Connect the keyboard cable to its connector on the system board.
2. Slide the keyboard in its place on the computer and snap it into place.
3. Flip the computer and tighten the screws to secure the keyboard to the computer.
4. Install the battery.
5. Follow the procedures in
After Working Inside Your Computer
.
Removing the WLAN Card
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
a) battery
b) access panel
3. Disconnect the antennae cables from the card, remove the screw and remove the WLAN card from its slot on the
system board.
19
