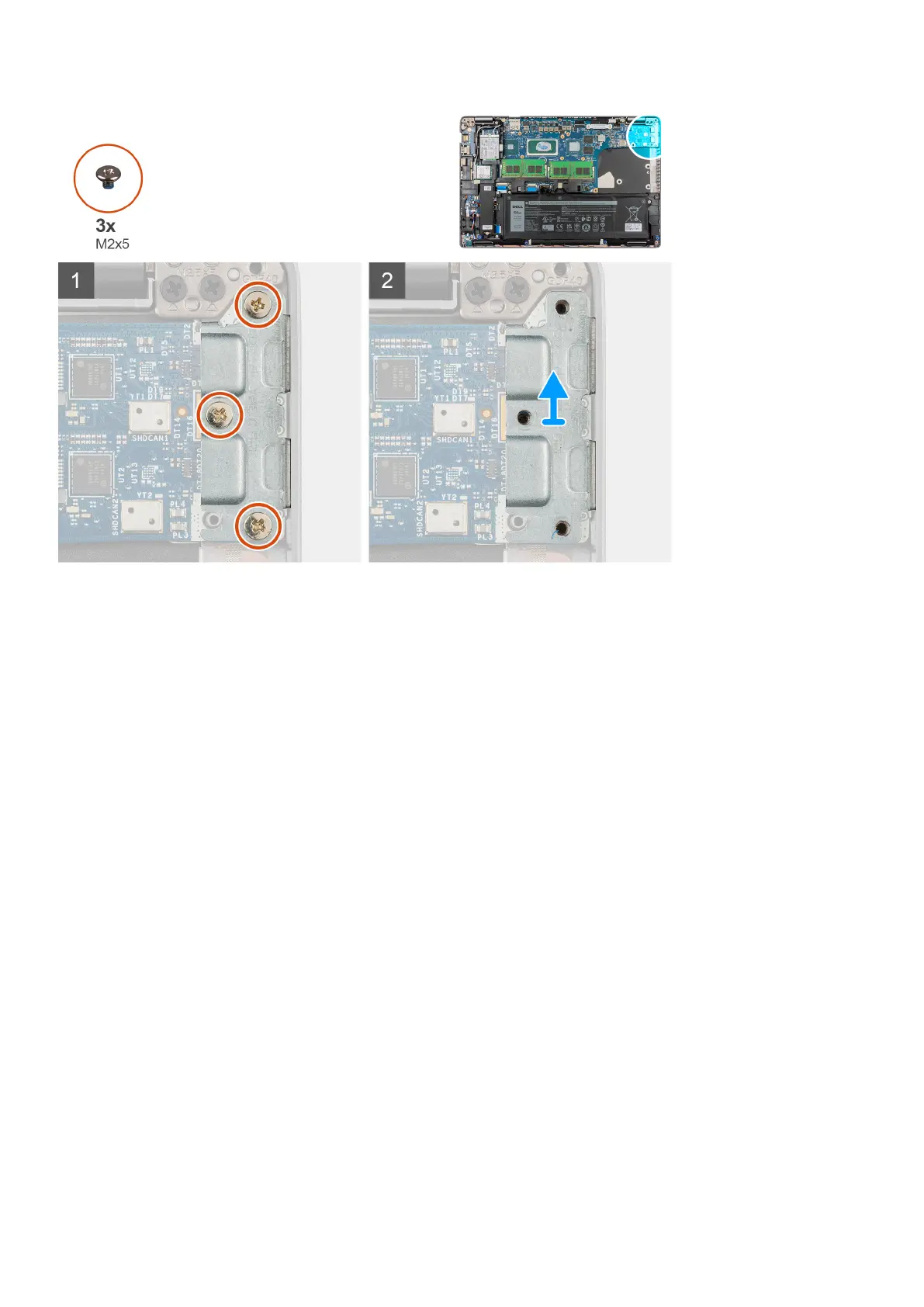

Steps
1. Remove the three (M2x5) screws that secure the USB type-C bracket to the system board.
2. Lift the USB type-C bracket off the system.
Installing the USB type-C bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the USB type-C bracket and provides a visual representation of the installation
procedure.
Removing and installing components
49
