Dell Latitude 5421 - Installing the Display Hinges

About this task

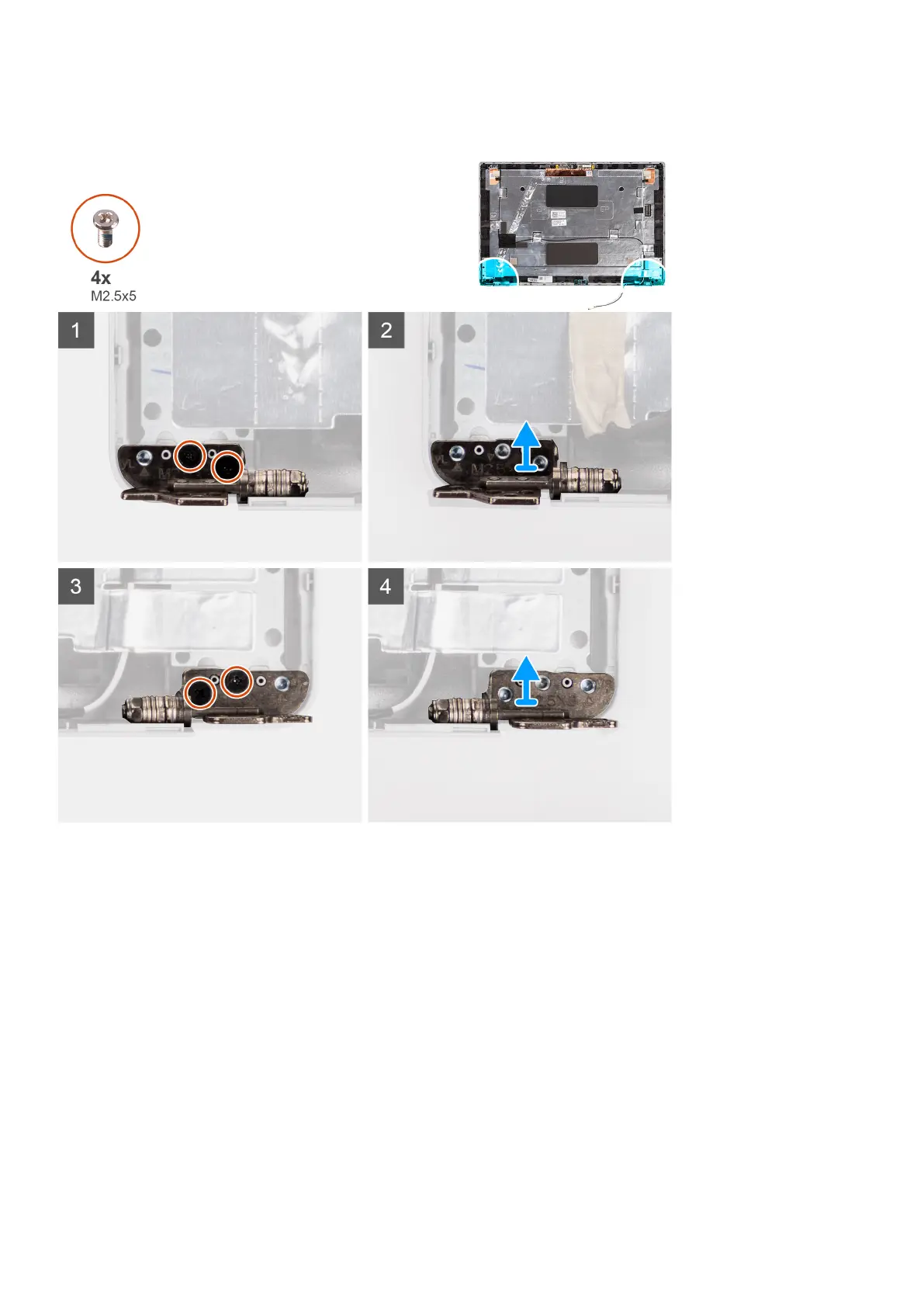

The following images indicate the location of the display hinges and provide a visual representation of the removal procedure.
Steps
1. Remove the two (M2.5x5) screws that secure the right hinge to the display back cover.
2. Lift and remove the right hinge from the display back cover.
3. Remove the two (M2.5x5) screws that secure the left hinge to the display back cover.
4. Lift and remove the left hinge from the display back cover.
Installing the display hinges
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the display hinges and provides a visual representation of the installation
procedure.
