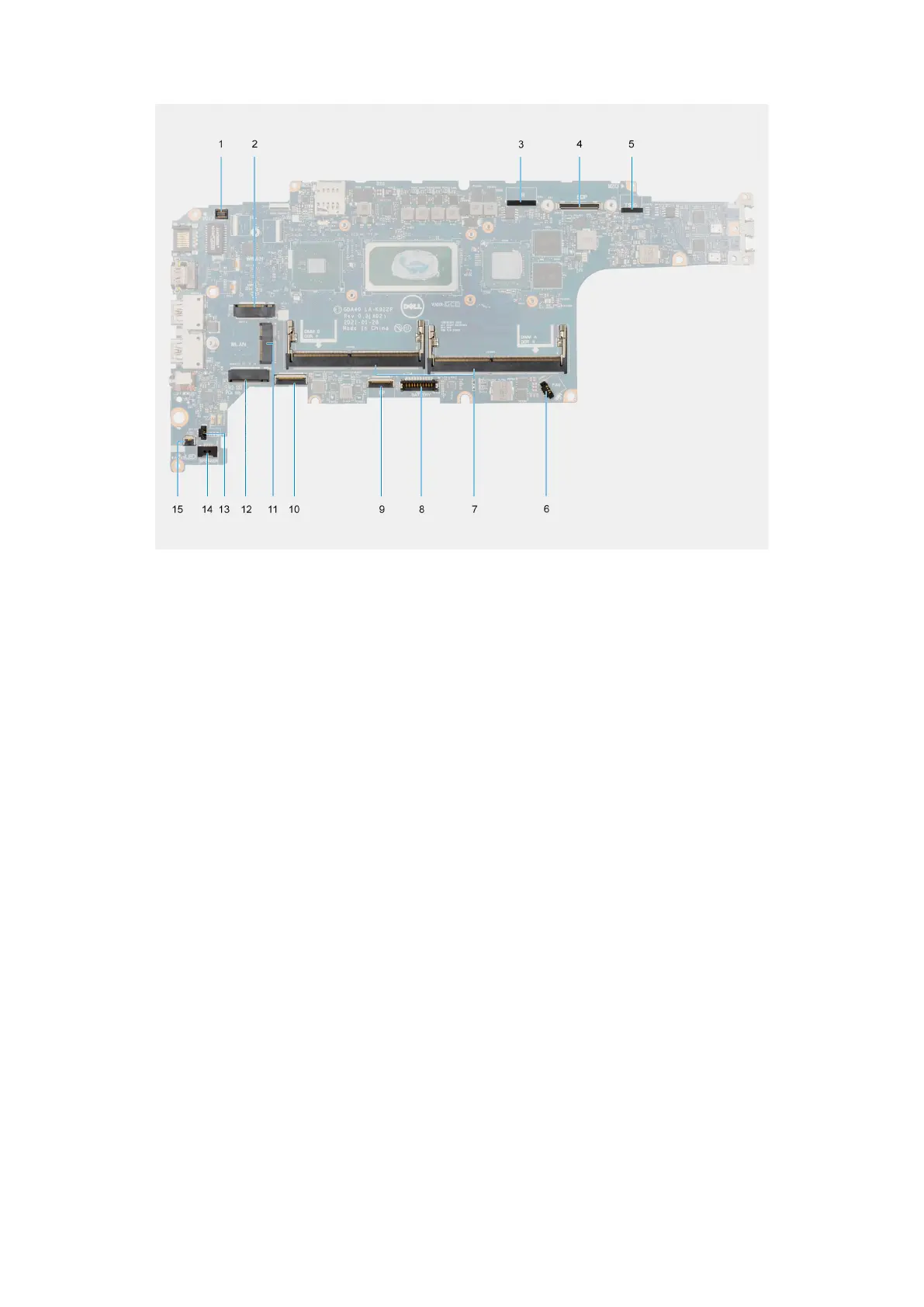

Figure 2. System board connectors
1. Fingerprint reader connector
2. WWAN connector
3. Camera/IR cable connector
4. eDP/display cable connector
5. Touch and sensor cable connector
6. Memory modules
7. Battery cable connector
8. Clickpad cable connector
9. USH board connector
10. WLAN connector
11. Solid-state drive slot
12. Coin-cell battery cable connector
13. Speaker cable connector
14. System fan connector
15. Battery LED cable connector
The following image indicates the location of the system board and provides a visual representation of the installation procedure.
