Steps

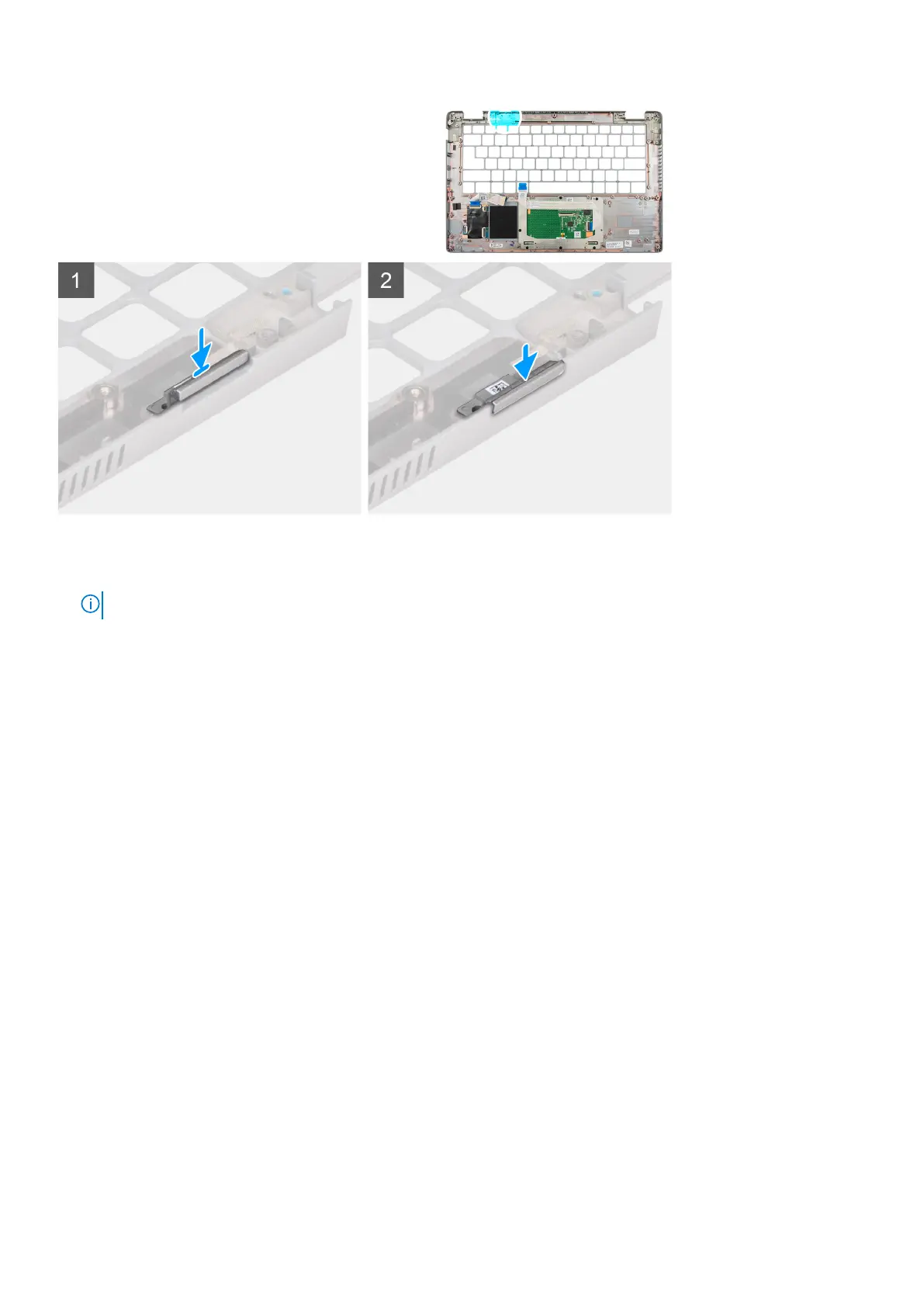

1. Place the dummy SIM-card slot filler into its compartment on the palm rest.
NOTE: Ensure that the dummy SIM-card slot filler is aligned with the ribs on the palm-rest assembly.
2. Press the dummy SIM-card slot filler until it clicks into place and ensure it fits securely into the SIM card slot.
Next steps
1. Install the palm-rest assembly.
2. Install the display assembly.
3. Install the keyboard assembly.
4. Install the smart card reader.
5. Install the LED board.
6. Install the power-button board.
7. Install the system board.
8. Install the assembly inner frame.
9. Install the speakers.
10. Install the heat sink - UMA or discrete based on the system configuration.
11. Install the battery.
12. Install the WWAN card.
13. Install the WLAN card.
14. Install the 2280 solid-state drive or 2230 solid-state drive.
15. Install the memory module.
16. Install the base cover.
17. Install the microSD card.
18. Install the SIM card.
19. Exit Service Mode.
20. Follow the procedure in After working inside your computer.
