Keyboard lattice and Keyboard
Removing keyboard from keyboard tray
Steps
1. Follow the procedure in Before working inside your computer.
2. Remove the keyboard assembly

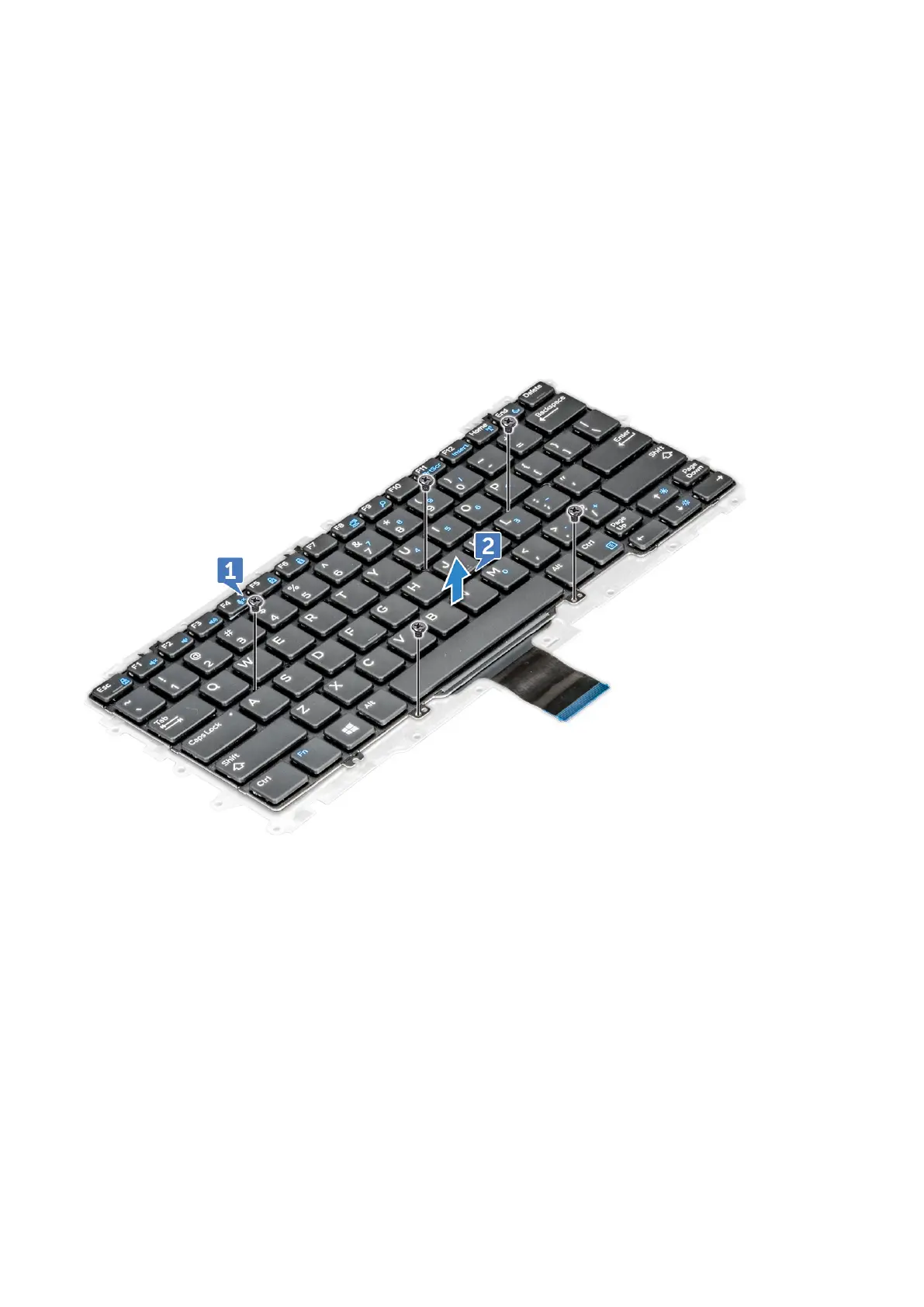

3. Remove the M2.0 x 2.0 screws that secure the keyboard to the keyboard assembly [1].
4. Lift the keyboard away from the keyboard tray [2].
Installing keyboard to keyboard tray
Steps
1. Align the keyboard with the screw holders on the keyboard tray.
2. Tighten the five M2.0 x 2.0 screws to secure the keyboard to the keyboard tray.
46
Removing and installing components
