Dell Latitude E6430s - Page 26

e) optical drive
f) base cover
g) keyboard trim
h) keyboard
i) bluetooth module

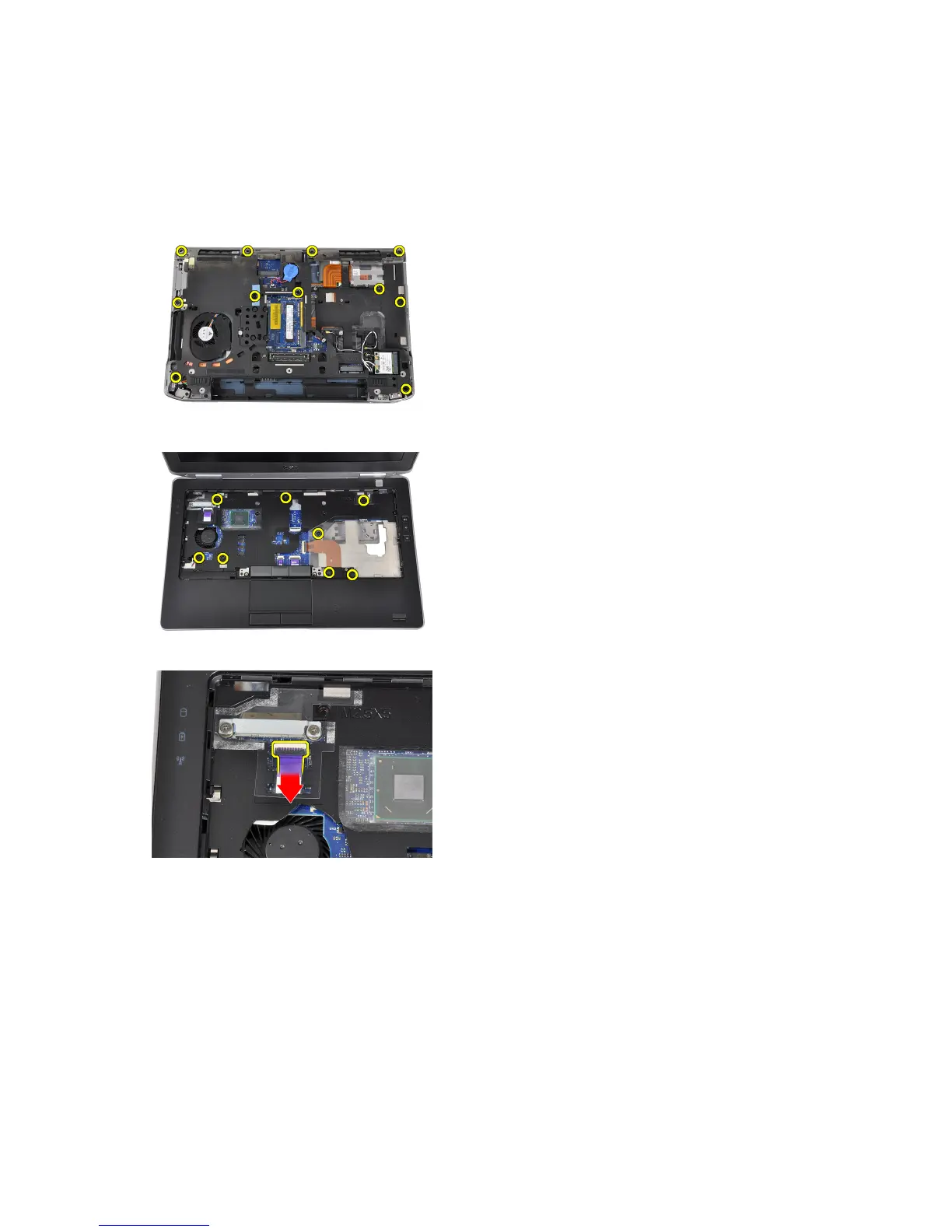

3. Remove the screws that secure the palmrest assembly to the base of the computer.
4. Remove the screws that secure the palmrest assembly to the front of the computer.
5. Disconnect the LED-board cable from the system board.
6. Disconnect the touchpad cable from the system board.
26
