Dell Latitude E6430s - Installing the Display Panel; Removing the Camera and Microphone Module

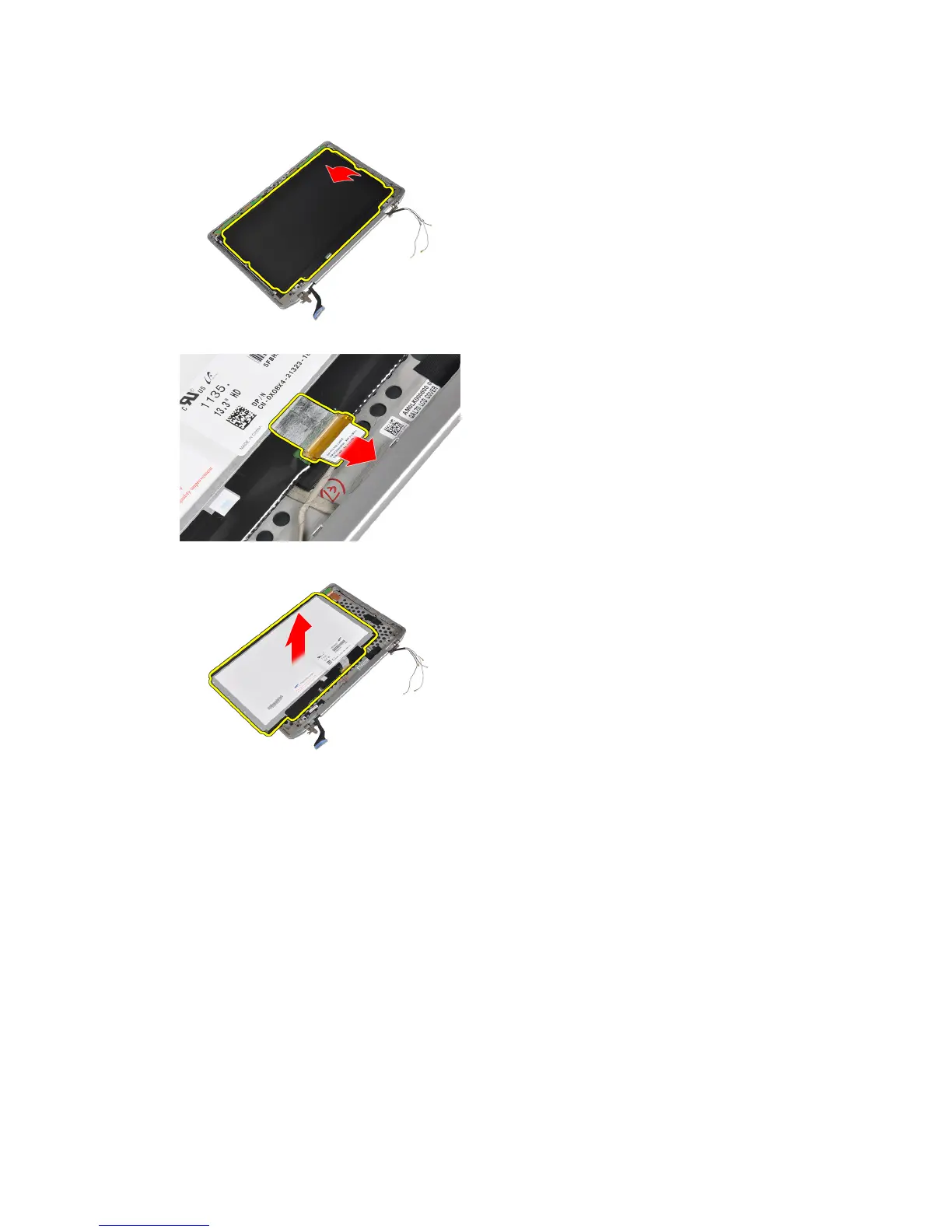

5. Flip and place the display panel over.
6. Peel off the LVDS cable connector tape and disconnect the LVDS cable from the display panel.
7. Remove the display panel from the display assembly.
Installing the Display Panel
1. Connect the display cable (LVDS cable) to its connector on the display panel.
2. Place the display panel to its original position on the display assembly.
3. Tighten the screws to secure the display panel to the display assembly.
4. Install :
a) display bezel
b) battery
5. Follow the procedures in After Working Inside Your Computer .
Removing the Camera and Microphone Module
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
