m) display assembly

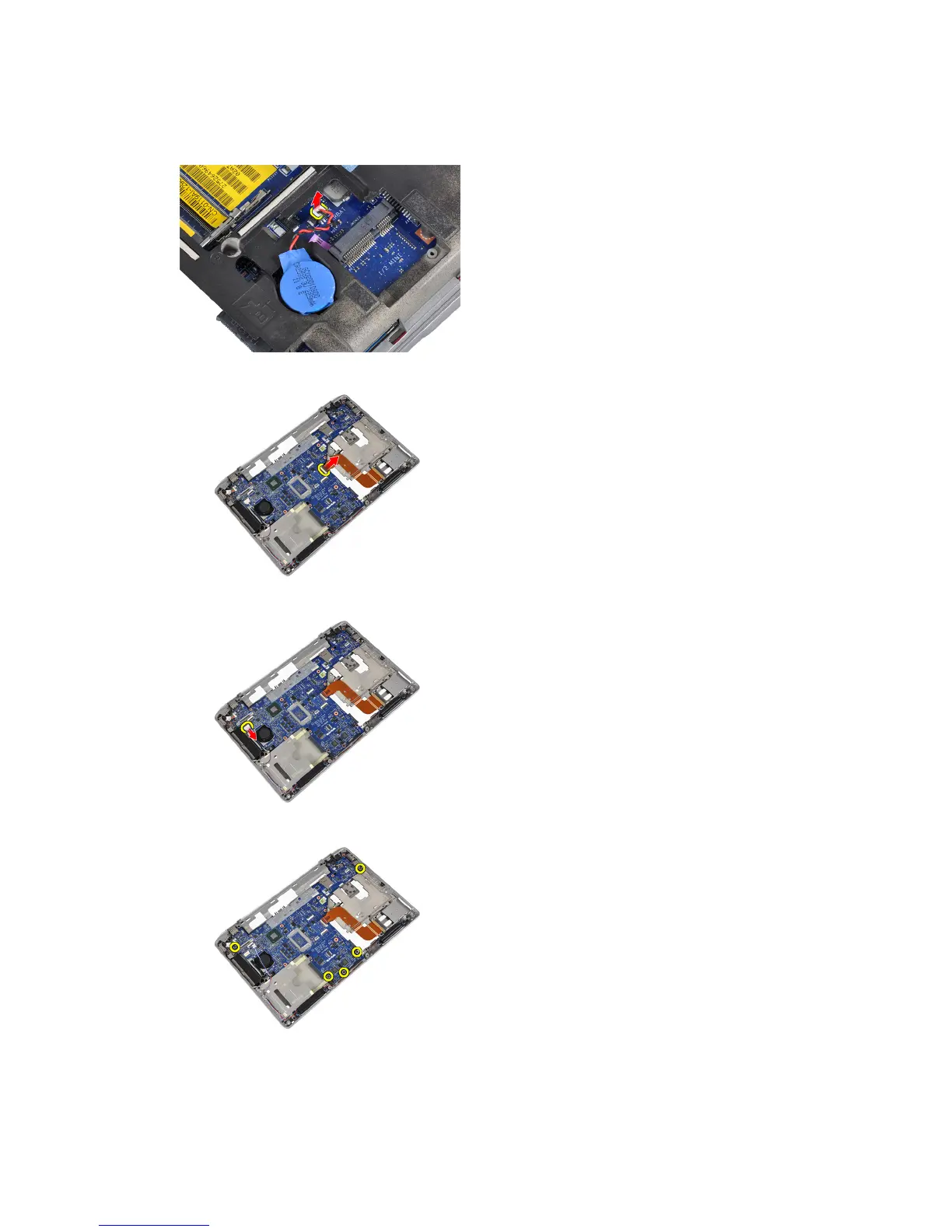

3. Disconnect the coin-cell battery cable from the system board.
4.
Disconnect the ExpressCard cable from the system board.
5. Disconnect the speaker cable from the system board.
6. Remove the screws that secure the system board to the computer.
7. Lift the left edge of system board partially to a 45-degree angle.
