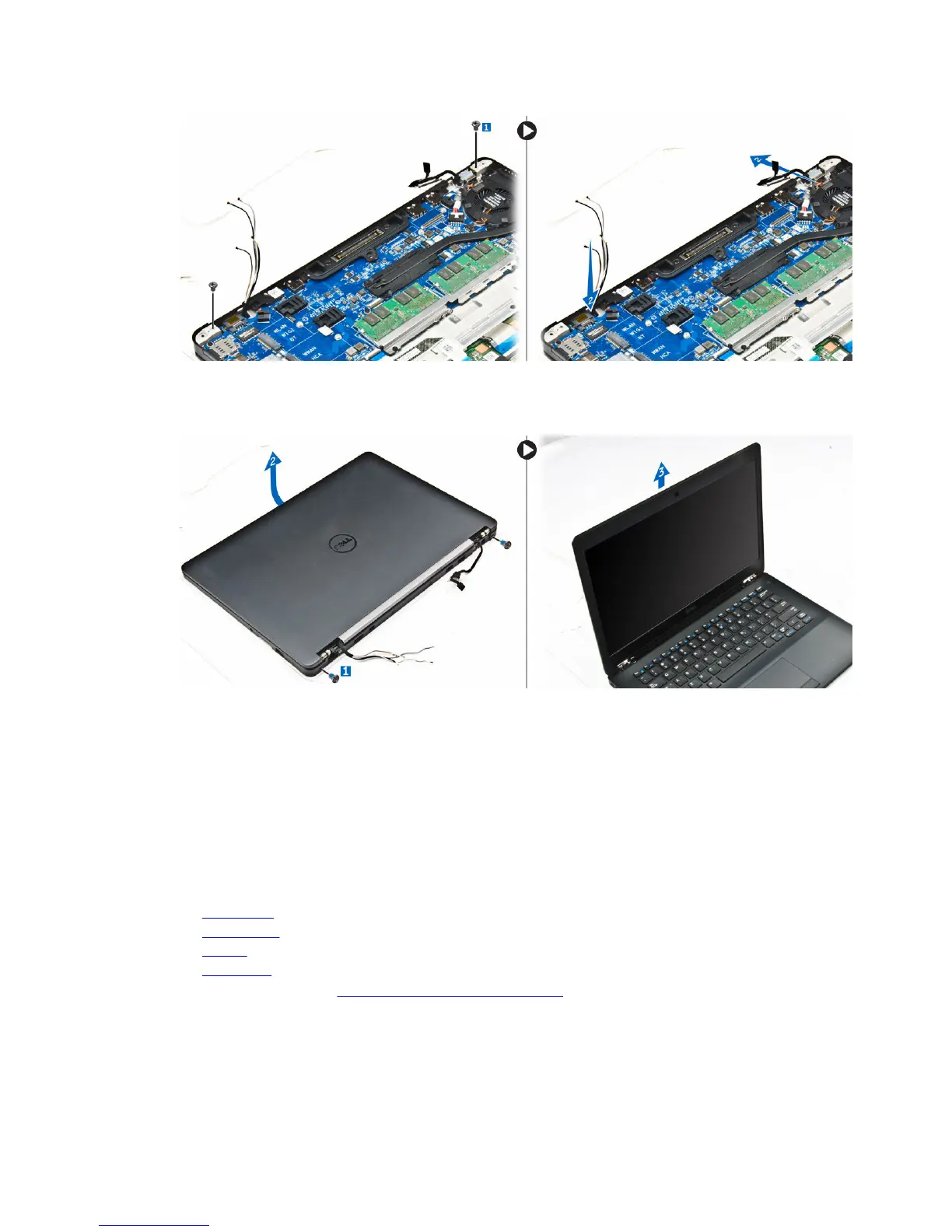

6. To remove the display assembly:
a. Remove the screws that secure the display assembly to the computer [1].
b. Slide the display assembly [2] and lift the display assembly to remove it from the computer [3].
Installing the display assembly
1. Place the display assembly to align with the screw holders on the computer.
2. Tighten the screws to secure the display assembly to the computer.
3. Connect the antenna cables and display cable to the connectors.
4. Place the display cable bracket over the connector and tighten the screw to secure the display cable
to the computer.
5. Place the display hinge bracket and tighten the screw to secure it to the computer.
6. Install the:
a. WLAN card
b. WWAN card
c. battery
d. base cover
7. Follow the procedure in After working inside your computer.
22
