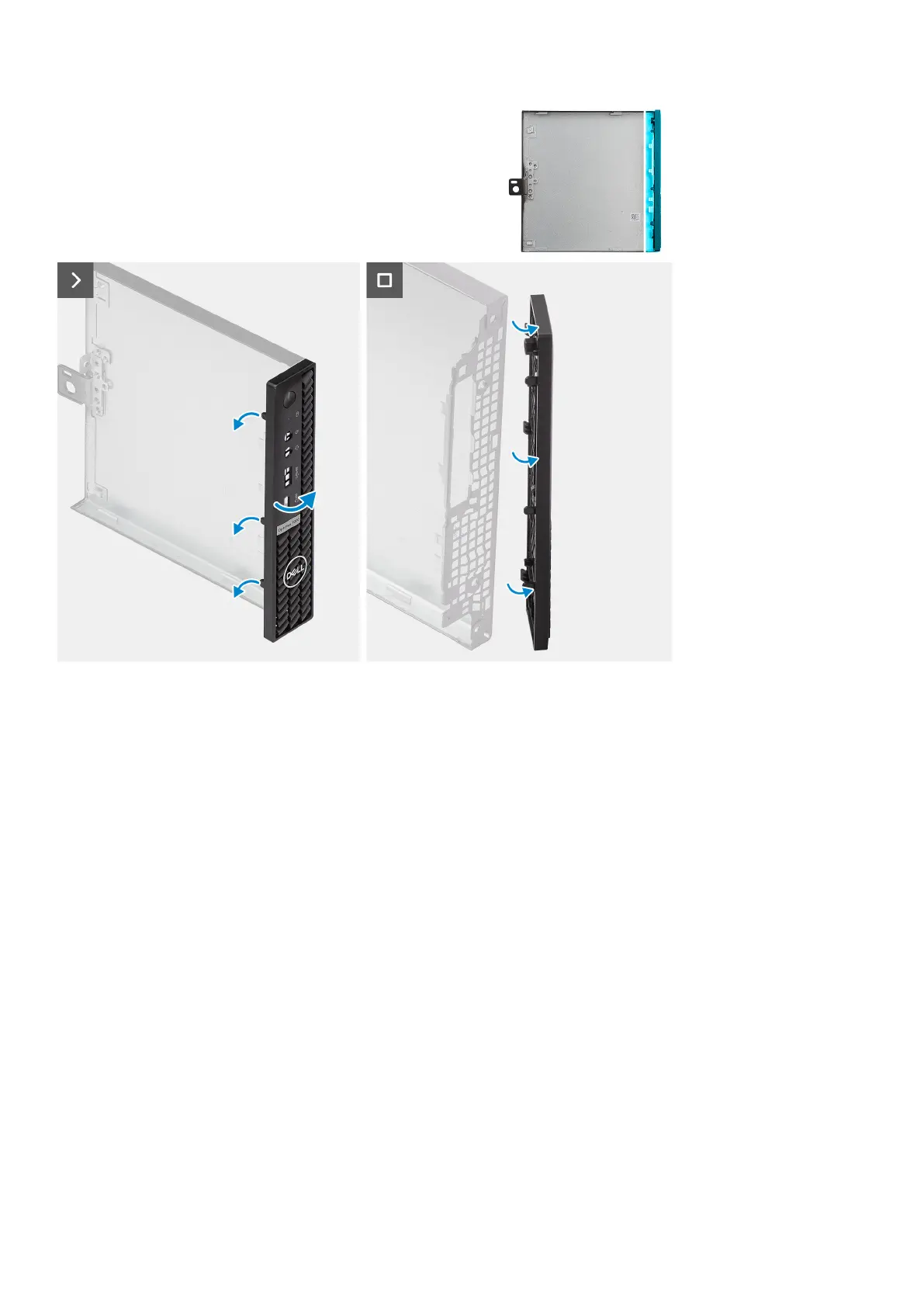

Steps
1. Gently pry and release the front-cover tabs from the top-right, working down sequentially to the bottom-right tab.
2. Swing the front bezel outwards, away from the side cover.
3. Lift the front bezel off the side cover.
Installing the front bezel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

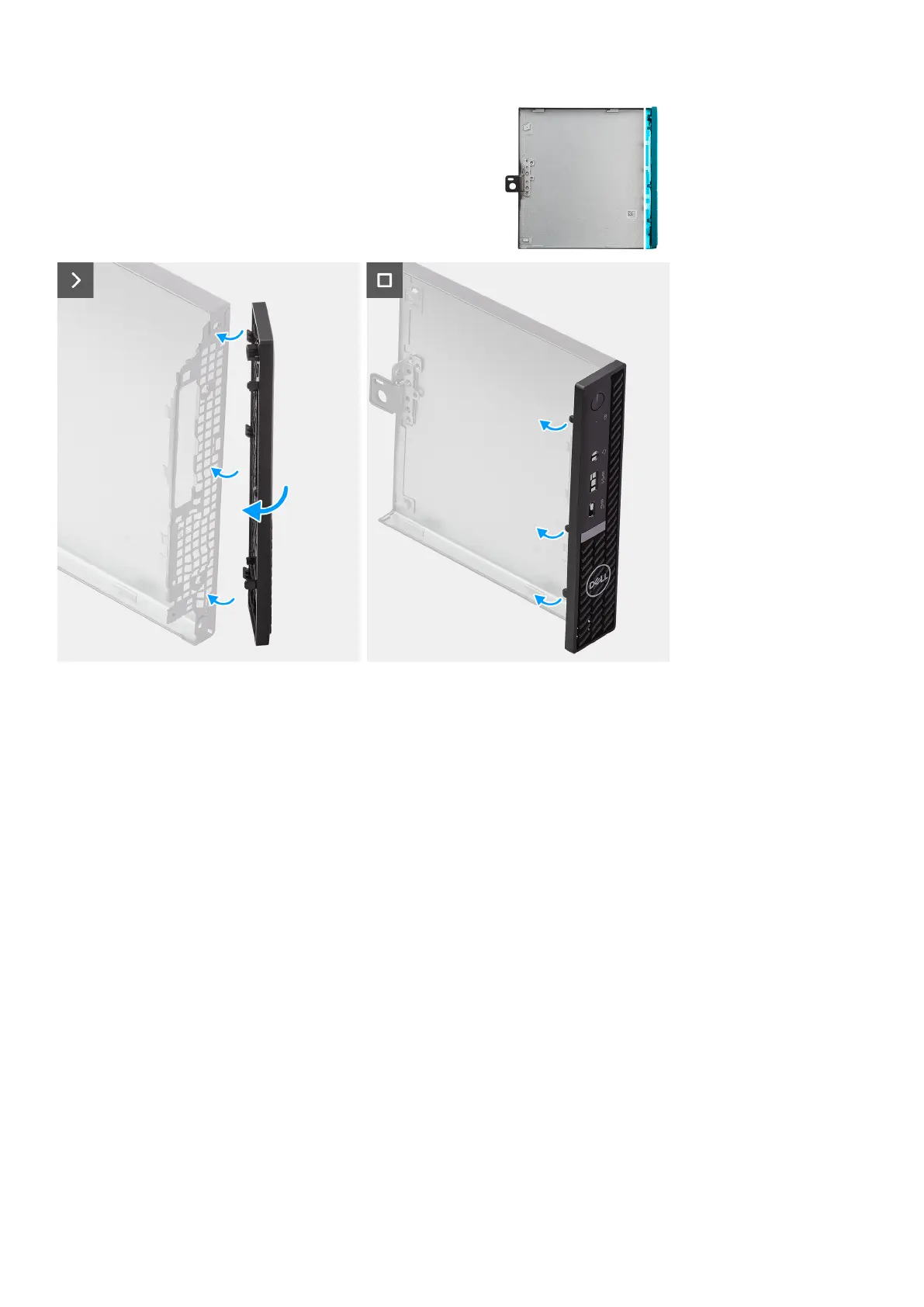

The following image(s) indicate the location of the front bezel and provides a visual representation of the installation procedure.
34
Removing and installing Customer Replaceable Units (CRUs)
