Installing the optional Type-C module
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

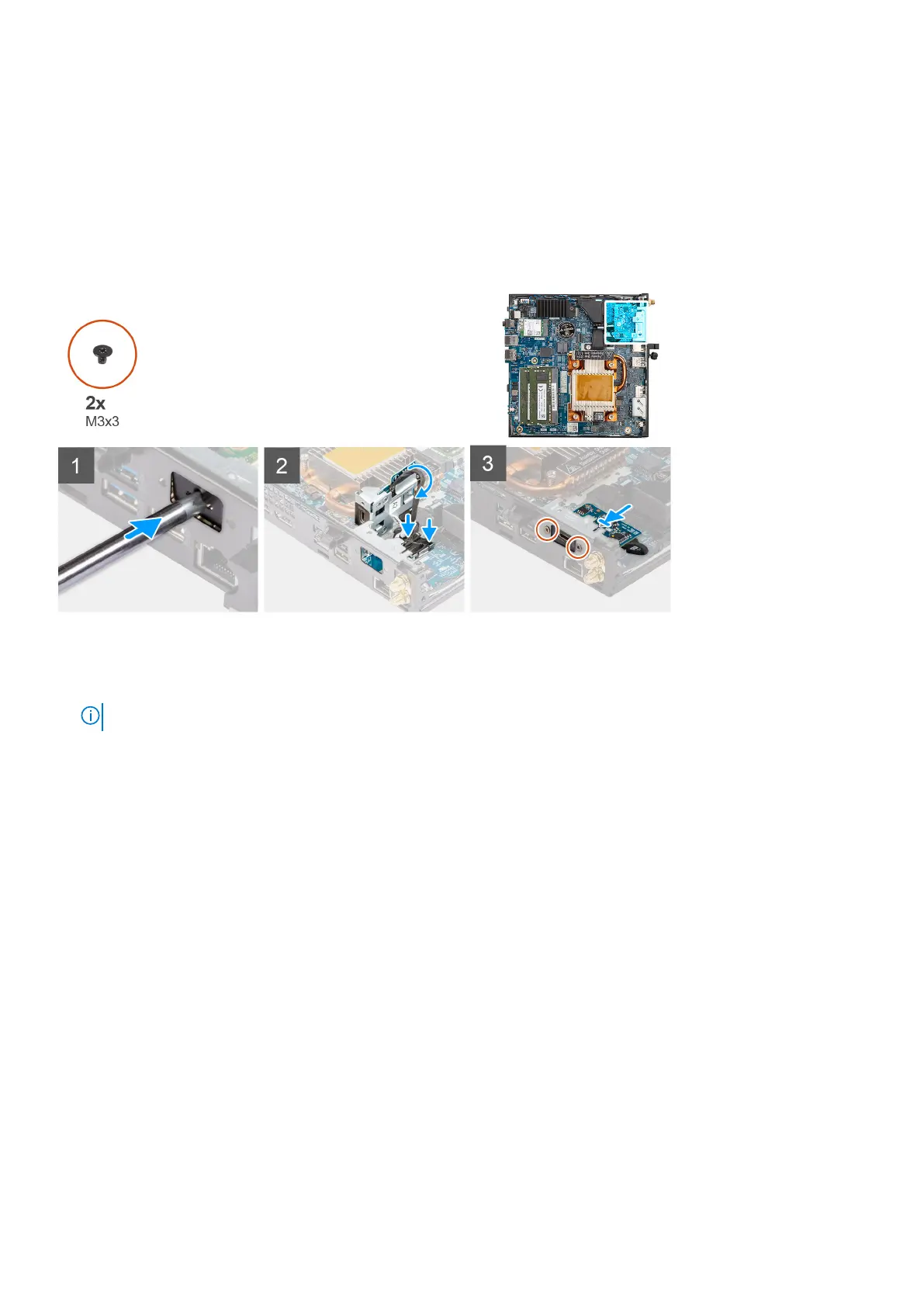

The following images indicate the location of the optional Type-C module and provide a visual representation of the installation
procedure.
Steps
1. To remove the dummy metal bracket, insert a flat-head screwdriver in the hole of the bracket. Push the bracket to release
the bracket, and then lift the bracket out from the system.
NOTE: This step applies if you are upgrading the system with no existing I/O module.
2. Connect the Type-C DisplayPort cable to the system board.
3. Connect the Type-C USB cable to the system board.
4. Insert the optional Type-C module into its slot from the inside of your computer.
5. Replace the two (M3x3) screws that secure the optional Type-C module.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
Processor
Removing the processor
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the speaker.
4. Remove the fan.
5. Remove the heat sink.
62
Removing and installing Field Replaceable Units (FRUs)
