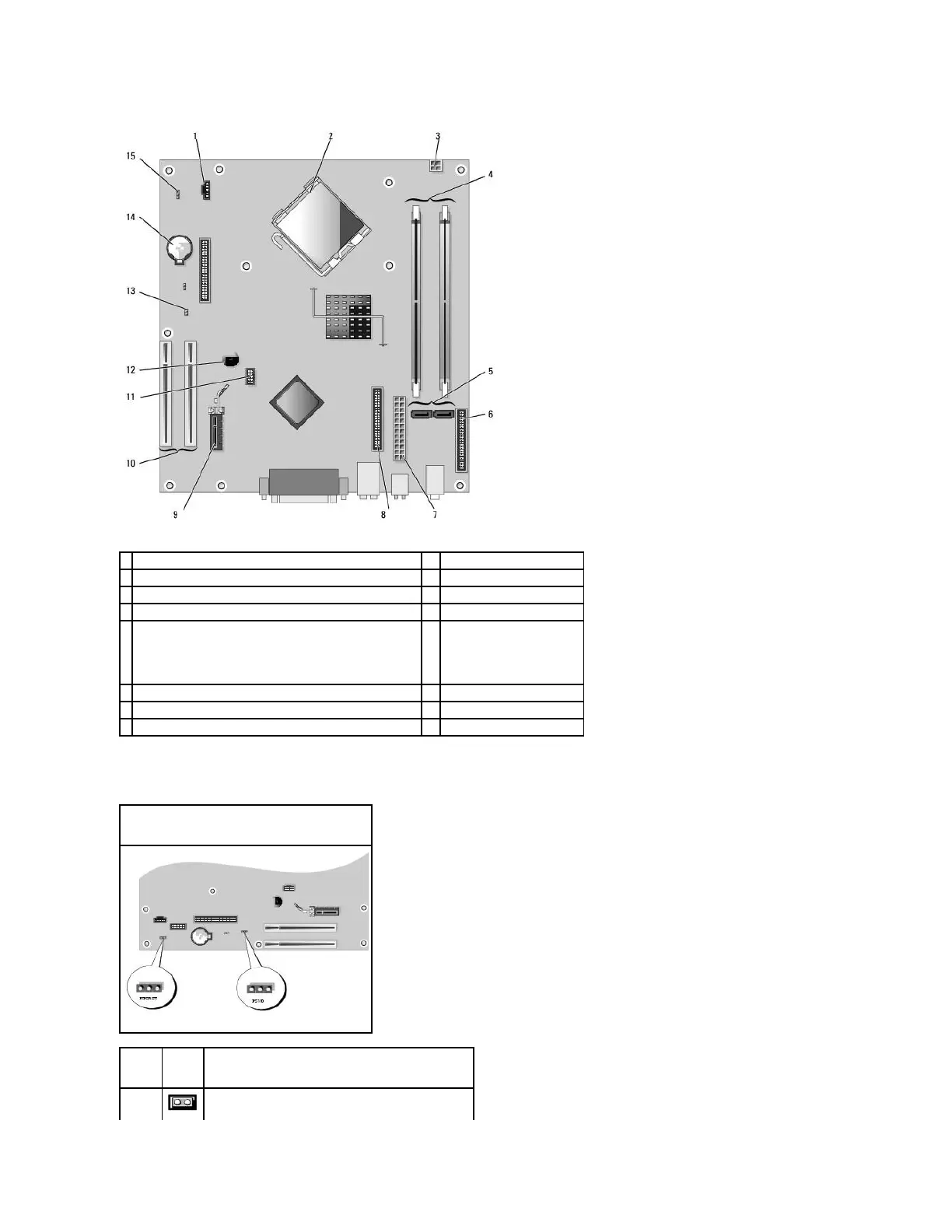

Jumper Settings
1
fan connector (FAN)
9
PCI Express x1 card connector
2
processor connector (CPU)
10
PCI card connector (2)
3
power connector (12VPOWER)
11
FlexBay USB connector
4
memory module connectors (DIMM_1, DIMM_2)
12
piezo buzzer
5
serial ATA drive connectors (SATA0, SATA2)

NOTE: The SATA2 connector is not supported with this system.
13
password jumper (PSWD)
6
front-panel connector (FNT_PANEL)
14
battery socket (BATT)
7
power connector (POWER)
15
RTC reset jumper (RTCRST)
8
CD/DVD drive connector (IDE)



Desktop Computer

Jumper

Setting

Description
PSWD
Password features are enabled (default).
