Power Supply 16
Removing The Power Supply
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the
cover
.

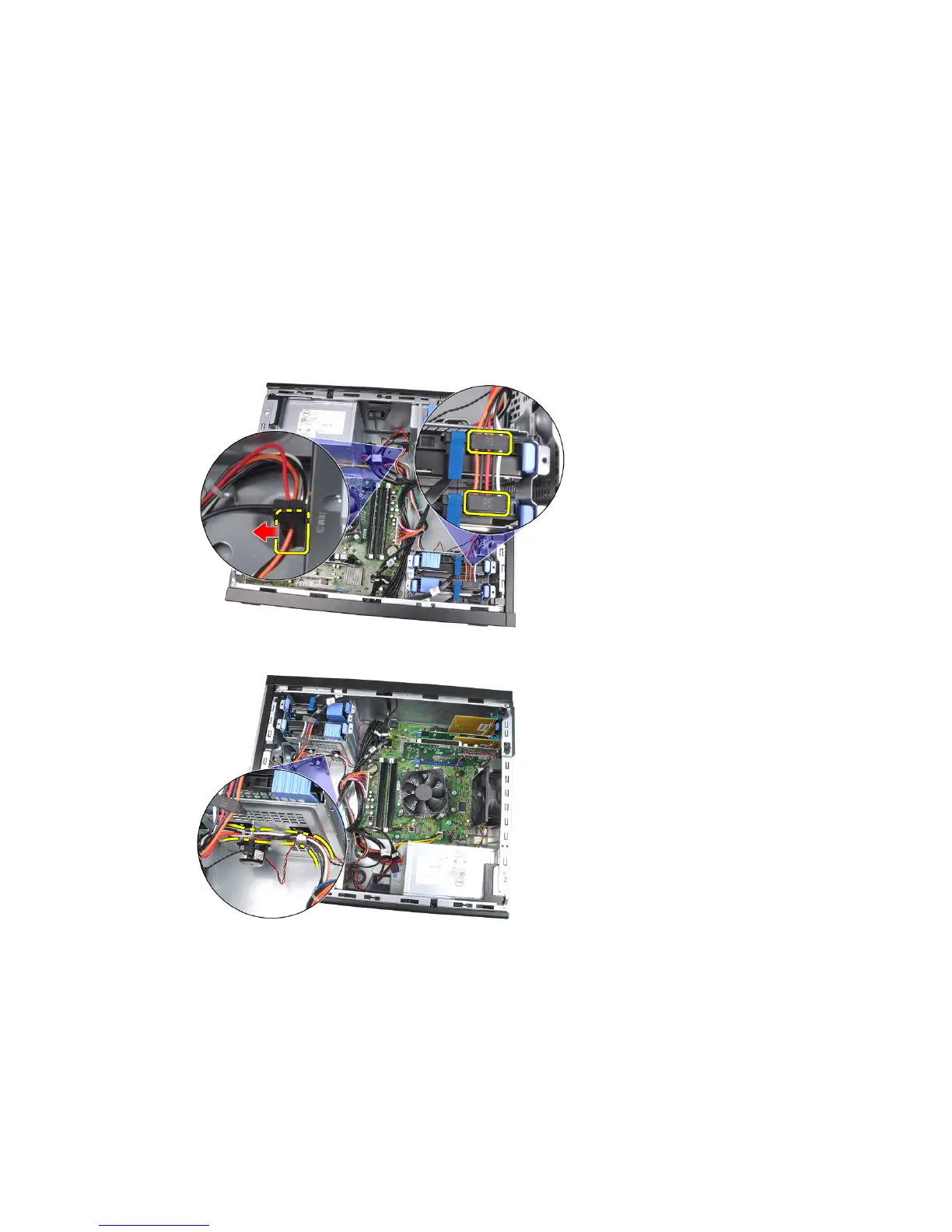

3. Disconnect the power cables connected to the hard drive(s) and optical
drive(s).
4. Unthread the power cables from the clips in the computer.
5. Disconnect the 24-pin power cable from the system board.
47
