Dell OptiPlex 390 Mini-Tower - Page 53

92 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

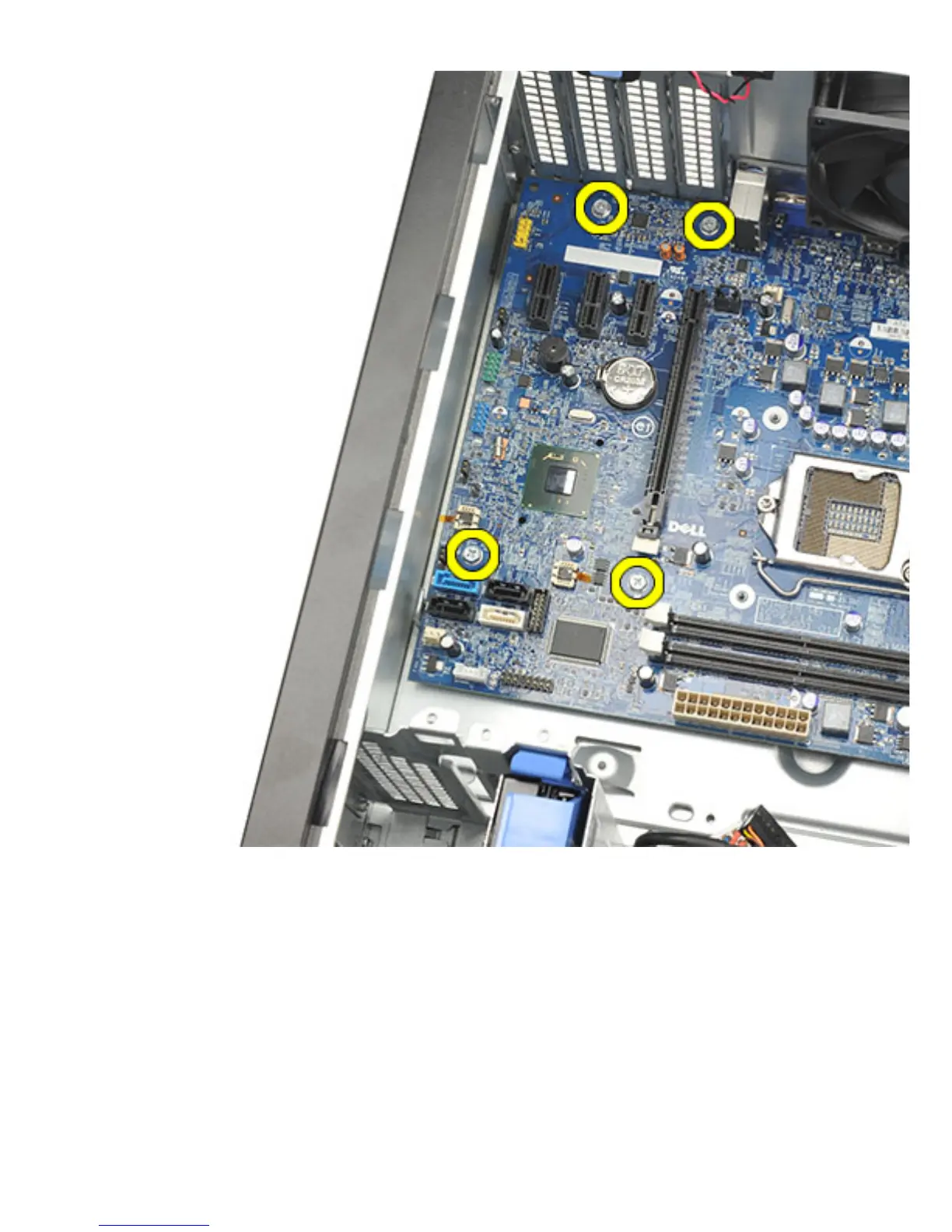

8. Slide the system board towards the front of the computer.

53

Table of Contents

Notes, Cautions, and Warnings2
- Table of Contents3
1 Working on Your Computer7
- Before Working Inside Your Computer7
- Recommended Tools8
- Turning off Your Computer8
- After Working Inside Your Computer9
2 Cover11
- Removing the Cover11
- Installing the Cover11
3 Front Bezel13
- Removing the Front Bezel13
- Installing the Front Bezel14
4 Expansion Card Tab15
- Removing the Expansion Card15
- Installing the Expansion Card17
5 Optical Drive19
- Removing the Optical Drive19
- Installing the Optical Drive20
6 Hard Drive21
- Removing the Hard Drive21
- Installing the Hard Drive22
7 Memory23
- Removing the Memory23
- Installing the Memory24
8 Chassis Intrusion Switch25
- Removing the Chassis Intrusion Switch25
- Installing the Intrusion Switch26
9 Speaker27
- Removing the Speaker27
- Installing the Speaker28
10 Heat Sink and Processor29
- Removing the Heat Sink and Processor29
- Installing the Heat Sink and Processor31
11 Coin-Cell Battery33
- Removing the Coin-Cell Battery33
- Installing the Coin-Cell Battery34
12 Power Switch Cable35
- Removing the Power-Switch Cable35
- Installing the Power-Switch Cable37
13 Front Thermal Sensor39
- Removing the Front Thermal Sensor39
- Installing the Front Thermal Sensor40
14 System Fan41
- Removing the Chassis Fan41
- Installing the Chassis Fan42
15 Input/Output Panel43
- Removing the Input/Output Panel43
- Installing the Input/Output Panel45
16 Power Supply47
- Removing the Power Supply47
- Installing the Power Supply49
17 System Board51
- Removing the System Board51
- Installing the System Board56
18 System Setup57
- Boot Menu57
- Boot Menu Enhancements57
- Timing Key Sequences58
- Beep Codes and Text Error Messages59
- Navigation59
- System Setup Options59
19 Troubleshooting69
- Diagnostic Leds69
- Beep Codes76
- Error Messages79
20 Specifications83
- Specification83
