b. optical drive
c. hard drive assembly
d. front bezel
e. cover
5. Follow the procedure in After Working Inside Your Computer.
Removing the processor
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. cover
b. front bezel
c. hard drive assembly
d. optical drive
e. fan duct
f. heat sink

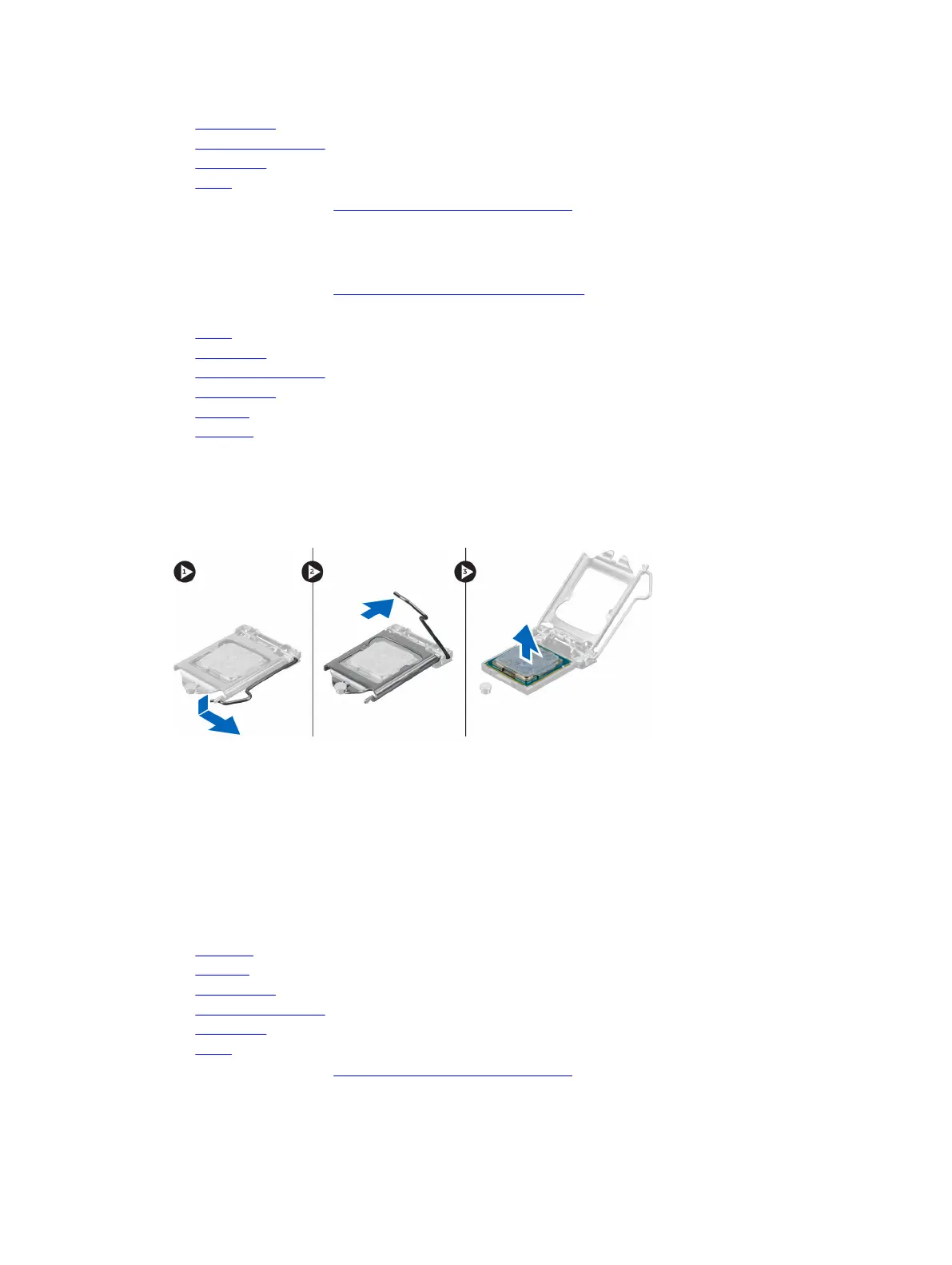

3. To remove the processor:
a. Release the socket lever by pushing the lever down and out from under the tab on the processor
shield [1].
b. Lift the lever upward and lift the processor shield [2].
c. Lift the processor out of the socket [3].
Installing the processor
1. Align the processor with the socket keys.
2. Align the pin-1 indicator of the processor with the triangle on the socket.
3. Place the processor on the socket such that the slots on the processor align with the socket keys.
4. Close the processor shield by sliding it under the retention screw.
5. Lower the socket lever and push it under the tab to lock it.
6. Install the:
a. heat sink
b. fan duct
c. optical drive
d. hard drive assembly
e. front bezel
f. cover
7. Follow the procedure in After Working Inside Your Computer.
