Installing the VGA daughter board
1. Align the VGA daughter board with the screw holder on the system board.
2. Tighten the screw to secure the VGA daughter board to the system board.
3. Insert the VGA connector into the slot at the back of the computer.
4. Tighten the screws to secure the VGA connector to the computer.
5. Install the:
a. fan duct
b. cover
6. Follow the procedure in After Working Inside Your Computer.
Removing the intrusion switch
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. cover
b. fan duct

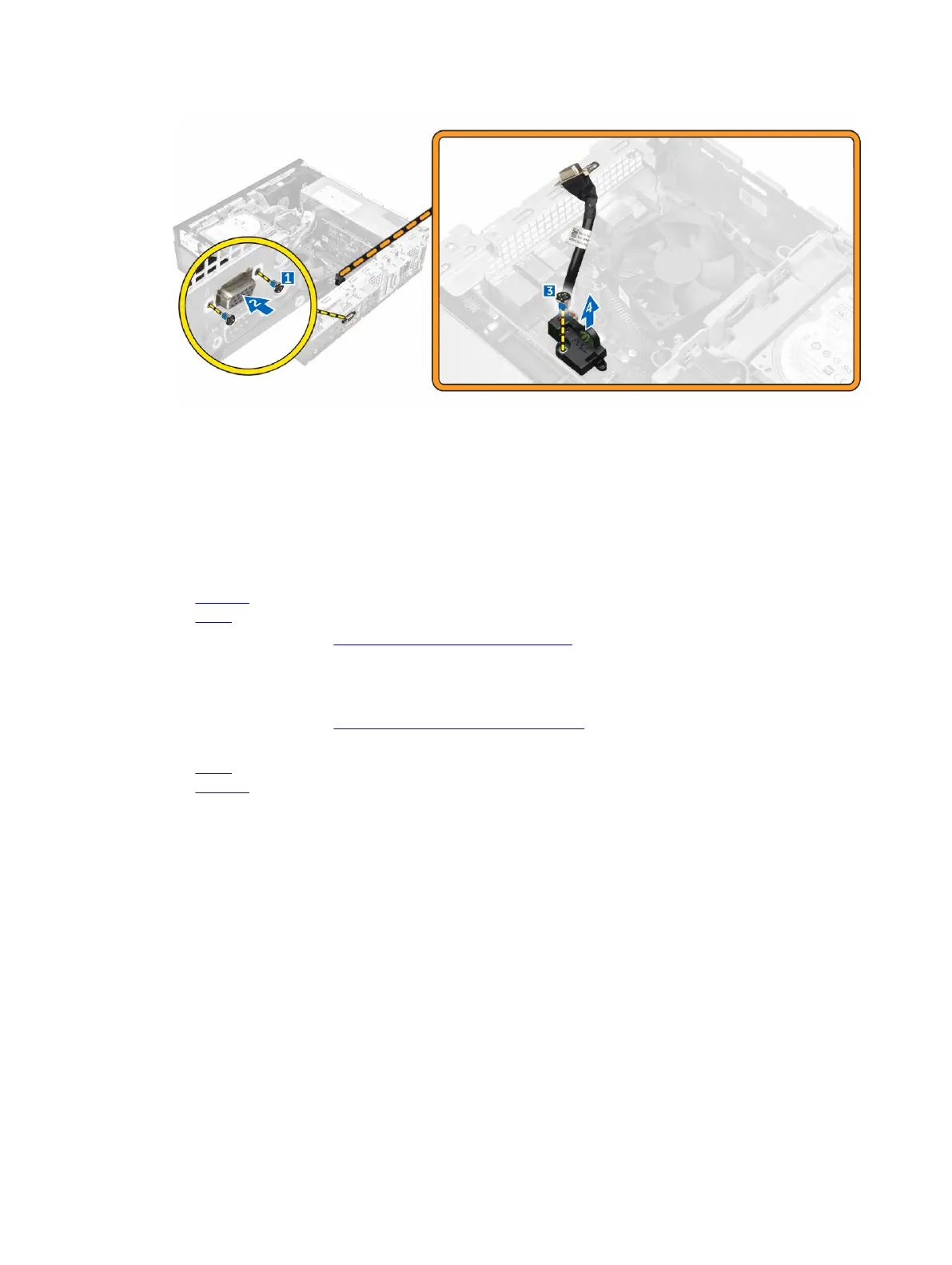

3. To remove the intrusion switch:
a. Disconnect the intrusion switch cable from the connector on the system board [1][2].
b. Slide the intrusion switch and lift it away from the computer [3].
