Steps

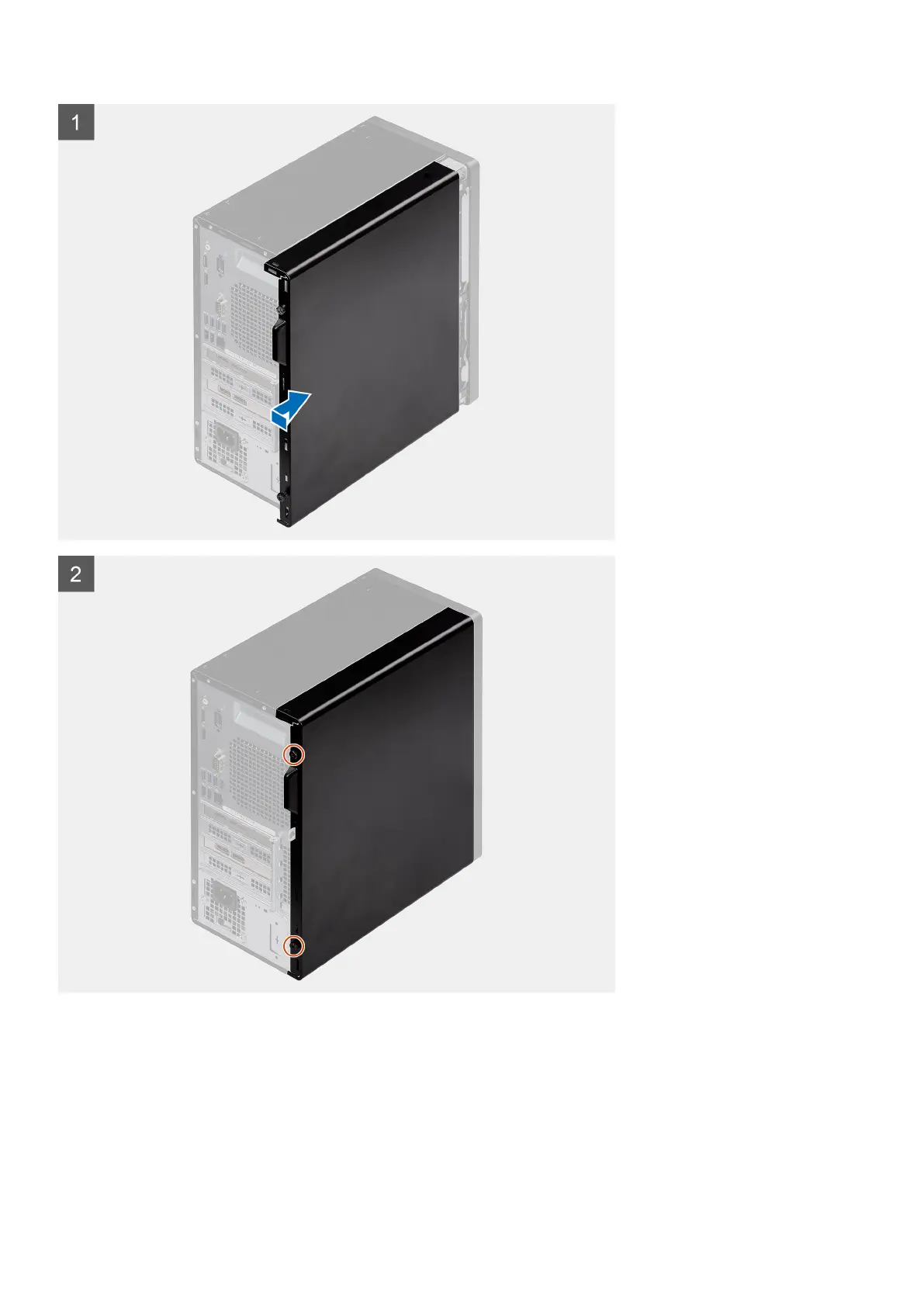

1. Locate the side cover slot on your computer.
2. Align the tabs on the side cover with the slots on the chassis.
3. Slide the side cover towards the front of the computer to install it.
4. Tighten the thumbscrew (#6-32) to secure the side cover to the computer.
Next steps
1. Follow the procedure in after working inside your computer.
Disassembly and reassembly
17
