Steps

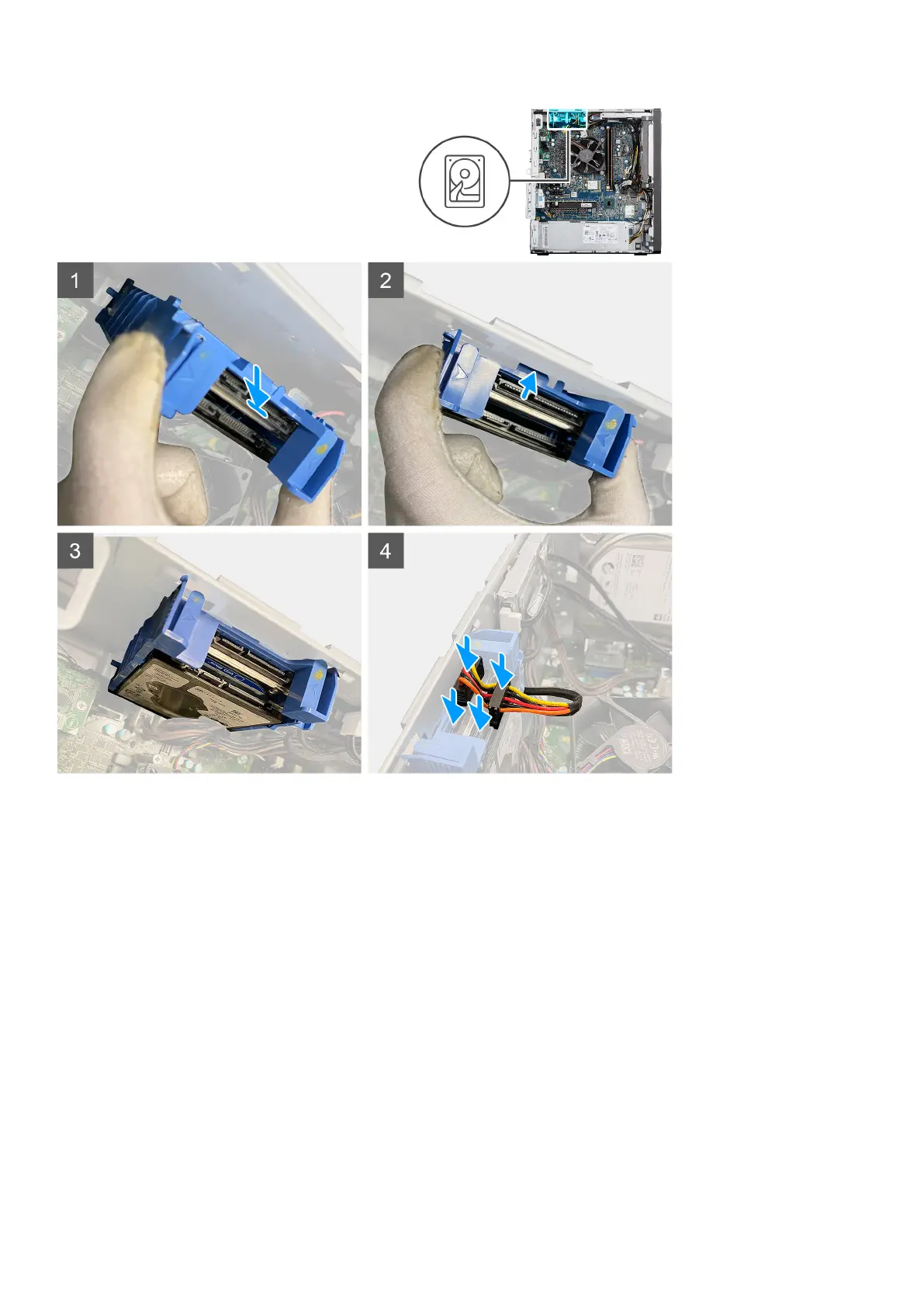

1. Align the hard-drive assembly at an angle to the slot on the computer.
2. Press the release tabs on the hard-disk drive bracket and slightly align back to insert the hard-disk drive assembly to the slot on the
computer chassis.
3. Connect the hard-drive data and power cables to the connectors on the 2.5-inch hard-disk drive module.
Next steps
1. Install the fan duct.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
3.5-inch hard drive
24
Disassembly and reassembly
