Steps
1. Pry the slim-ODD bracket to release it from the slot on the ODD.
2. Remove the slim-ODD bracket off the ODD.
Installing the slim-ODD bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

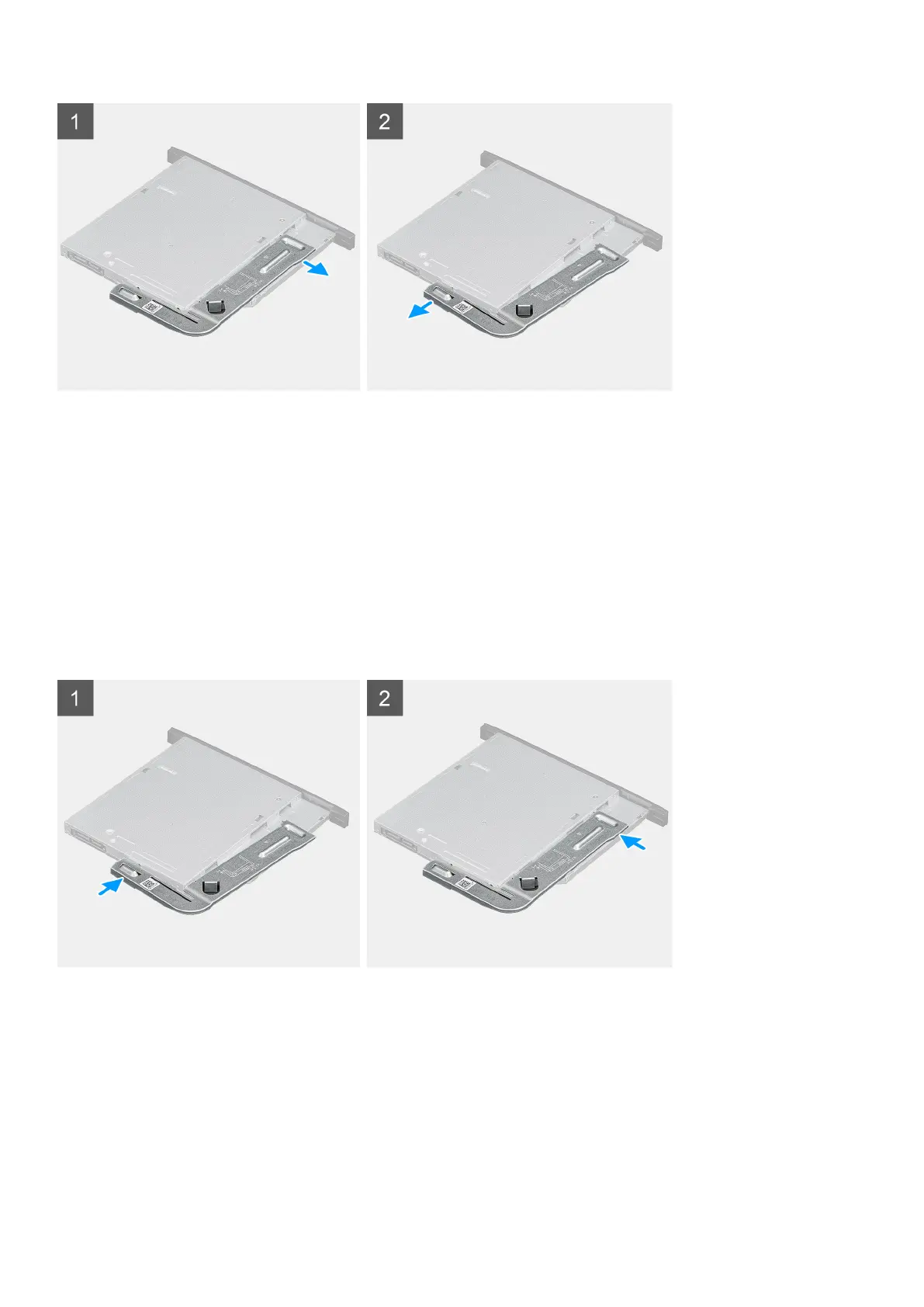

The following images indicate the location of the slim-ODD bracket and provides a visual representation of the installation procedure.
Steps
1. Align and place the slim-ODD bracket on the ODD slots.
2. Snap the slim-ODD bracket into the slim ODD.
Next steps
1. Install the slim Optical Disk Drive.
2. Install the fan duct.
3. Install the side cover.
4. Follow the procedure in after working inside your computer.
