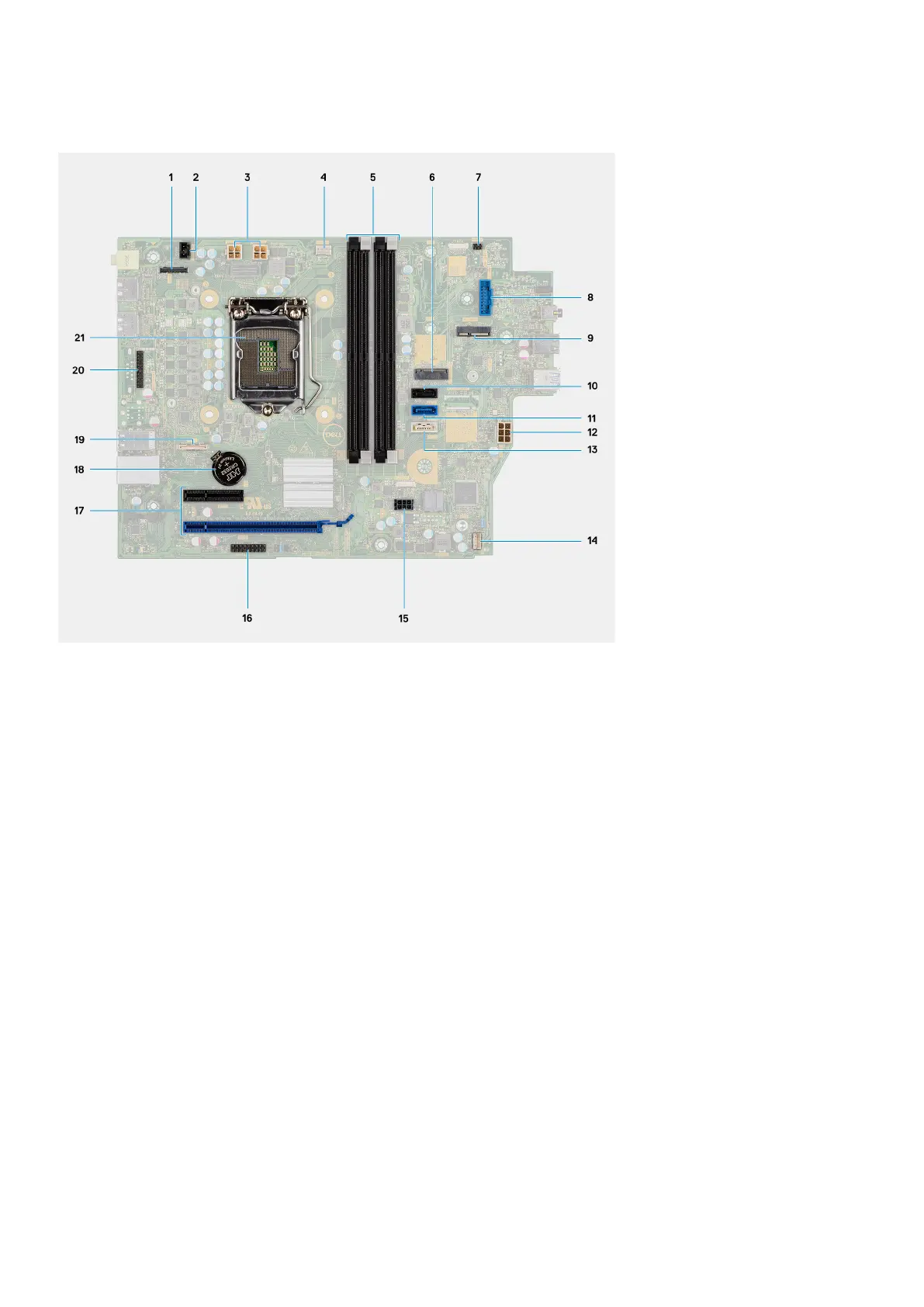

System board Layout
1.
Video connector
2. Intrusion switch connector (Intruder)
3. CPU power connector (ATX_CPU)
4. CPU fan connector
5. Memory slots (DIMM1, DIMM2, DIMM3, DIMM4)
6. M.2 Solid-state drive connector
7. Power switch connector (PWR_SW)
8. Media card reader connector (Card_reader)
9. M.2 WLAN connector
10. SATA 1 connector
11. SATA 2 connector
12. PSU connector
13. SATA 3 connector
14. Internal speaker connector
15. SATA power connector
16. SATA 3 connector
17. PCI-e connectors
18. Coin cell battery
19. USB Type-C connector
20. Serial port
21. Processor socket (CPU)
12
Chassis
