4. Remove the back cover.
5. Remove the system-board shield.
6. Remove the wireless card.
7. Remove the bottom cover.
8. Remove the rear-I/O bracket.
9. Remove the speakers.
About this task

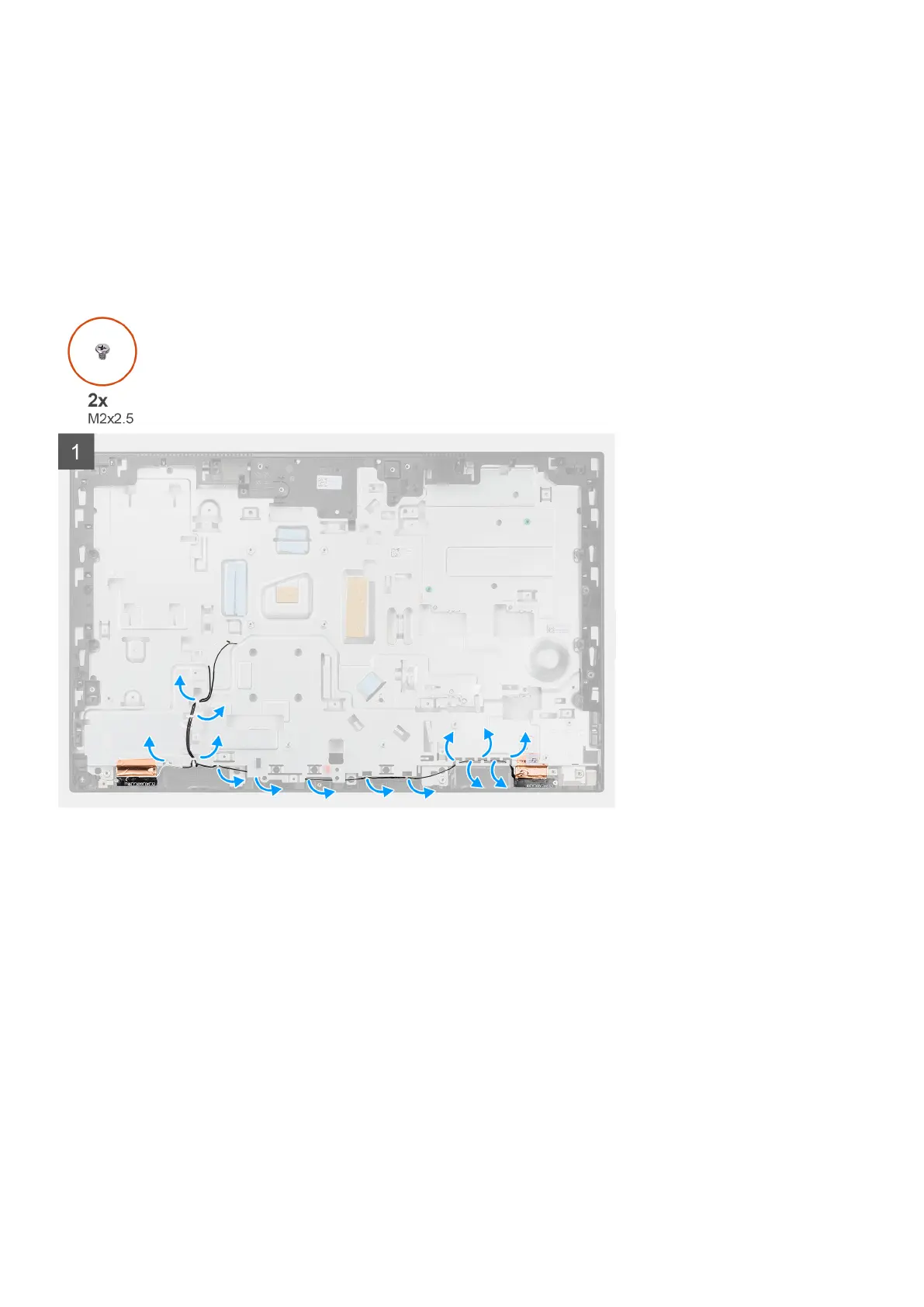

The following image indicates the location of the antenna modules and provides a visual representation removal procedure of the
antenna modules.
Removing and installing components 75
