Dell OptiPlex 5490 - Page 79

Steps

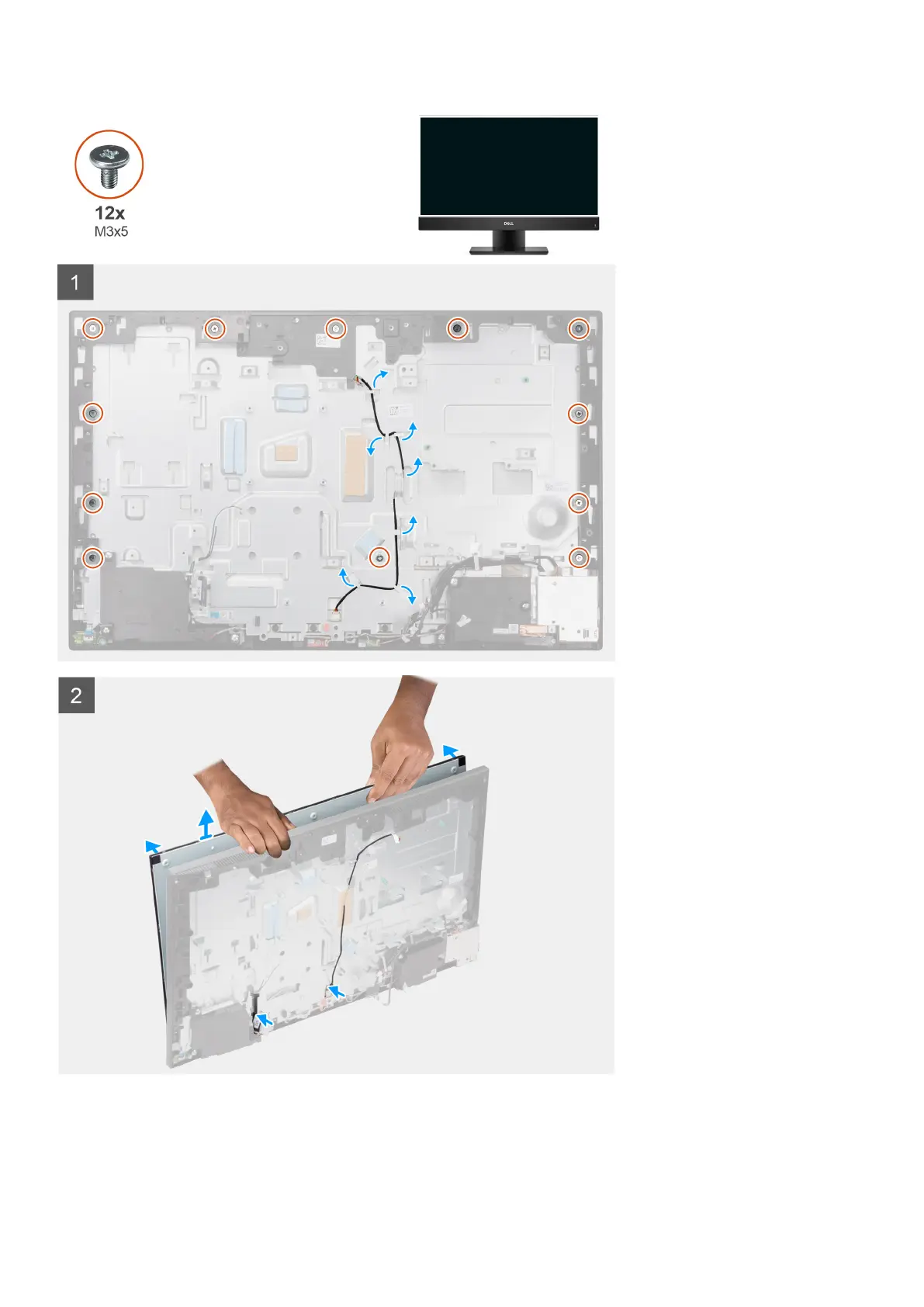

1. Remove the 12 screws (M3x5) that secure the display panel to the middle frame and display-assembly base.
2. Unroute the display back-light cable from the routing guides on the display-assembly base.
3. Place the system in an upright position.
Removing and installing components
79
