Dell OptiPlex 7070 - Page 29

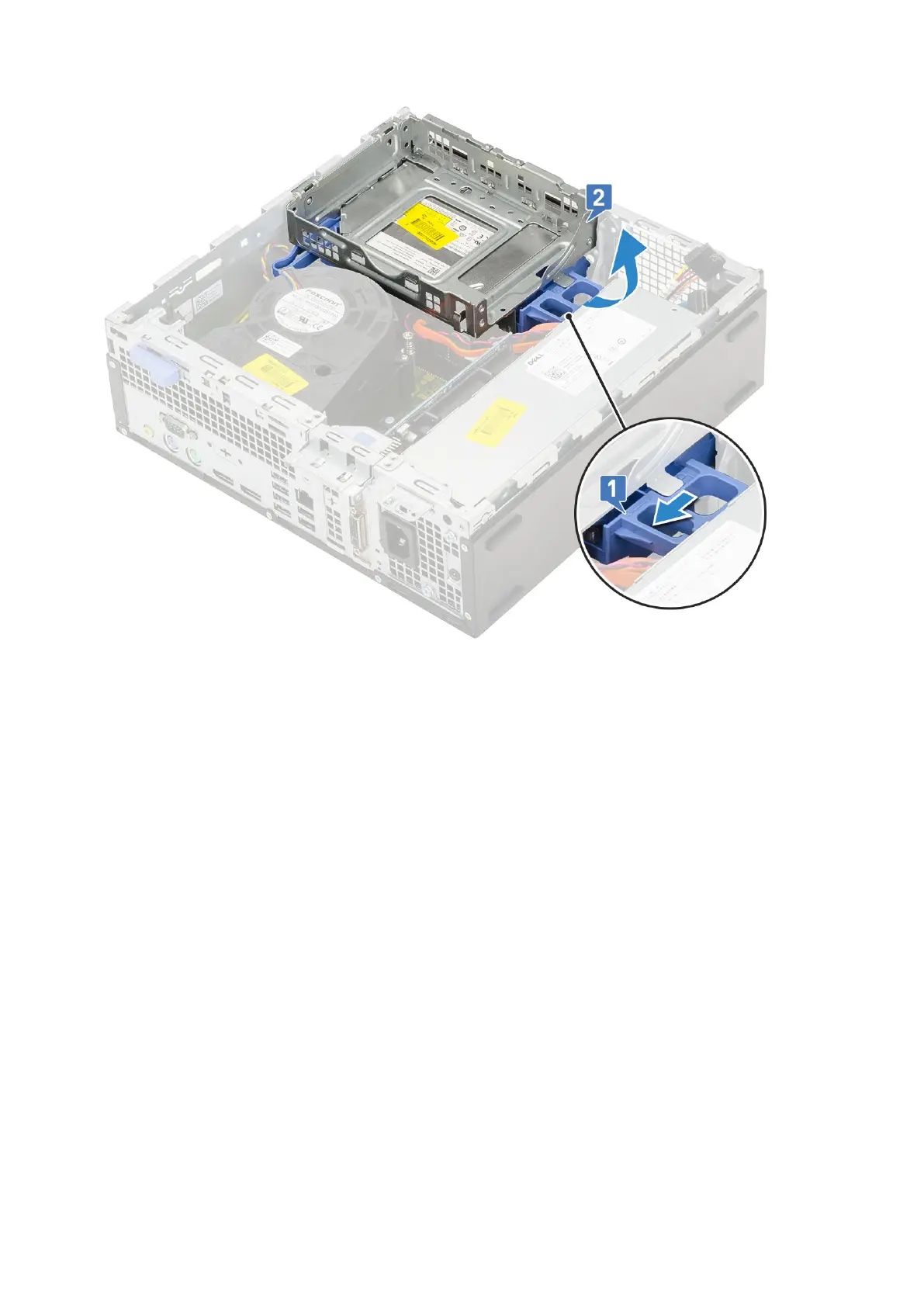

4. To remove the hard drive and optical drive module:
a. Disconnect the optical drive data cable and optical drive power cable from the connectors on the optical drive [1, 2].
b. Slide and lift the hard drive and optical drive module from the system [3].
Removing and installing components
29
