Installation Instructions
Page 3

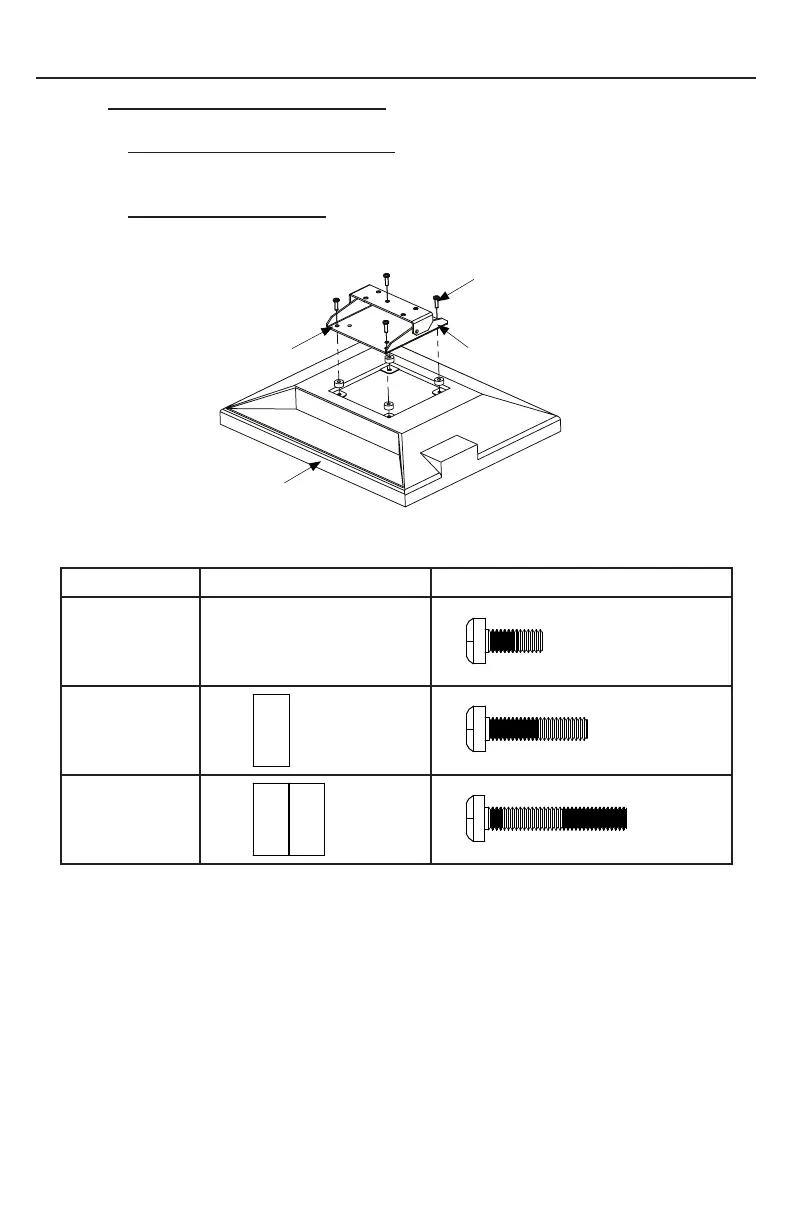

M4 Screws (4x)
Pivot Assembly
Bottom of Monitor
Outer four holes
= 100mm
Step 4. VESA Monitor Bracket Attachment: Turn the monitor face down on a large at
surface. Locate the four VESA mounting holes on the rear of the monitor.
a. Determine if spacers are required: Some monitors have a "recess" on the rear
surface. Spacers are provided to ll this gap. See Table A for spacer
length options.
b. Determine Screw Length: Only use the metric M4 screws provided. Screw
length is determined by the spacers used (see Table A).
Screws and Spacers are Shown to Scale
Recess Depth Spacer Screw
0 No Spacer Needed 10mm
.250 (1/4) 18mm
.500 (1/2) 25mm
Table A
To Next Page
