Dell OptiPlex 790 - Input;Output Panel; Removing The Input;Output (I;O) Panel

Input/Output Panel 14

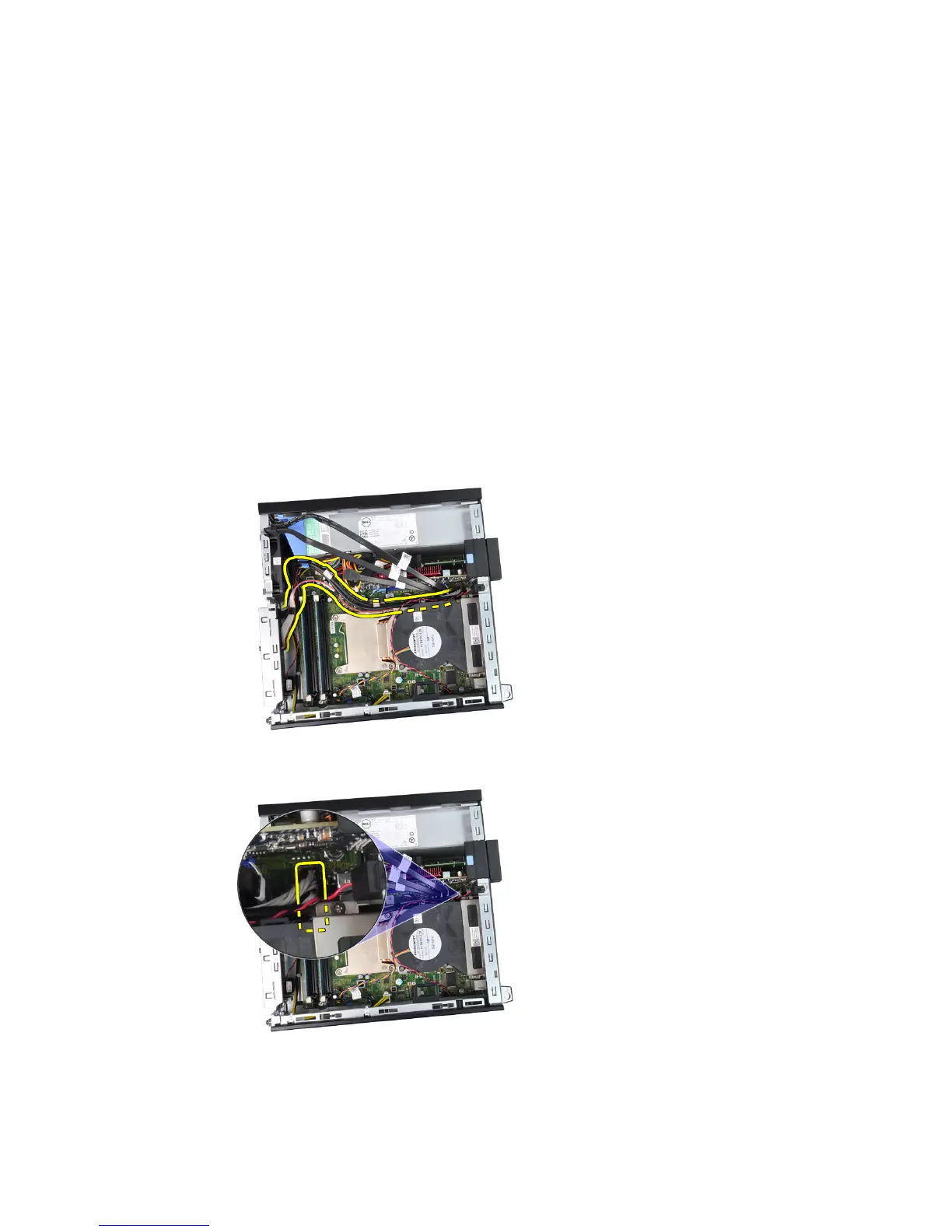

Removing The Input/Output (I/O) Panel
1. Follow the procedures in
Before Working Inside Your Computer .
2. Remove the
cover .
3. Remove the front bezel .
4. Remove the drive cage .
5. Unthread the I/O panel or the FlyWire cable from the fan-shelter clip and
heat sink.
6. Disconnect the I/O panel or the FlyWire cable from the system board.
7. Remove the single screw that secures the I/O panel to the chassis.
37
