Dell OptiPlex GX745 - Cable Cover (Optional); Attaching the Cable Cover



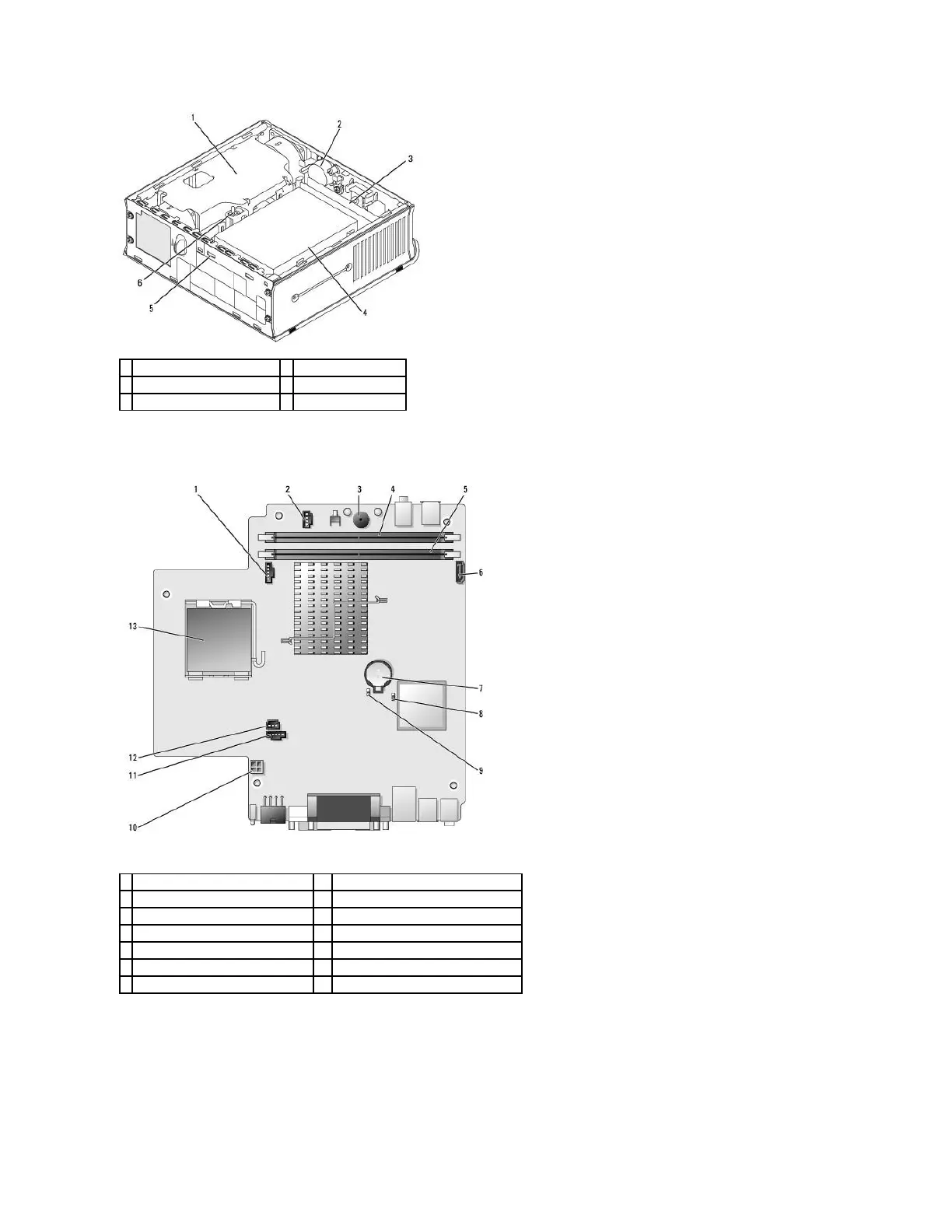

System Board Components

Cable Cover (Optional)

Attaching the Cable Cover

1
fan shroud/ heat sink assembly
4
hard drive
2
speaker (optional)
5
security cable slot
3
memory modules (2)
6
chassis intrusion switch
1
fan connector (FAN_FRONT)
8
clear CMOS jumper (RTCRST)
2
internal speaker connector (INT_SPKR)
9
password jumper (PSWD)
3
system board speaker (BEEP)
10
hard-drive power connector (SATA_PWR)
4
channel B memory connector (DIMM_2)
11
fan connector (FAN_REAR)
5
channel A memory connector (DIMM_1)
12
intrusion switch connector (INTRUDER)
6
SATA data cable connector(SATA0)
13
processor (CPU)
7
battery (BATT)


