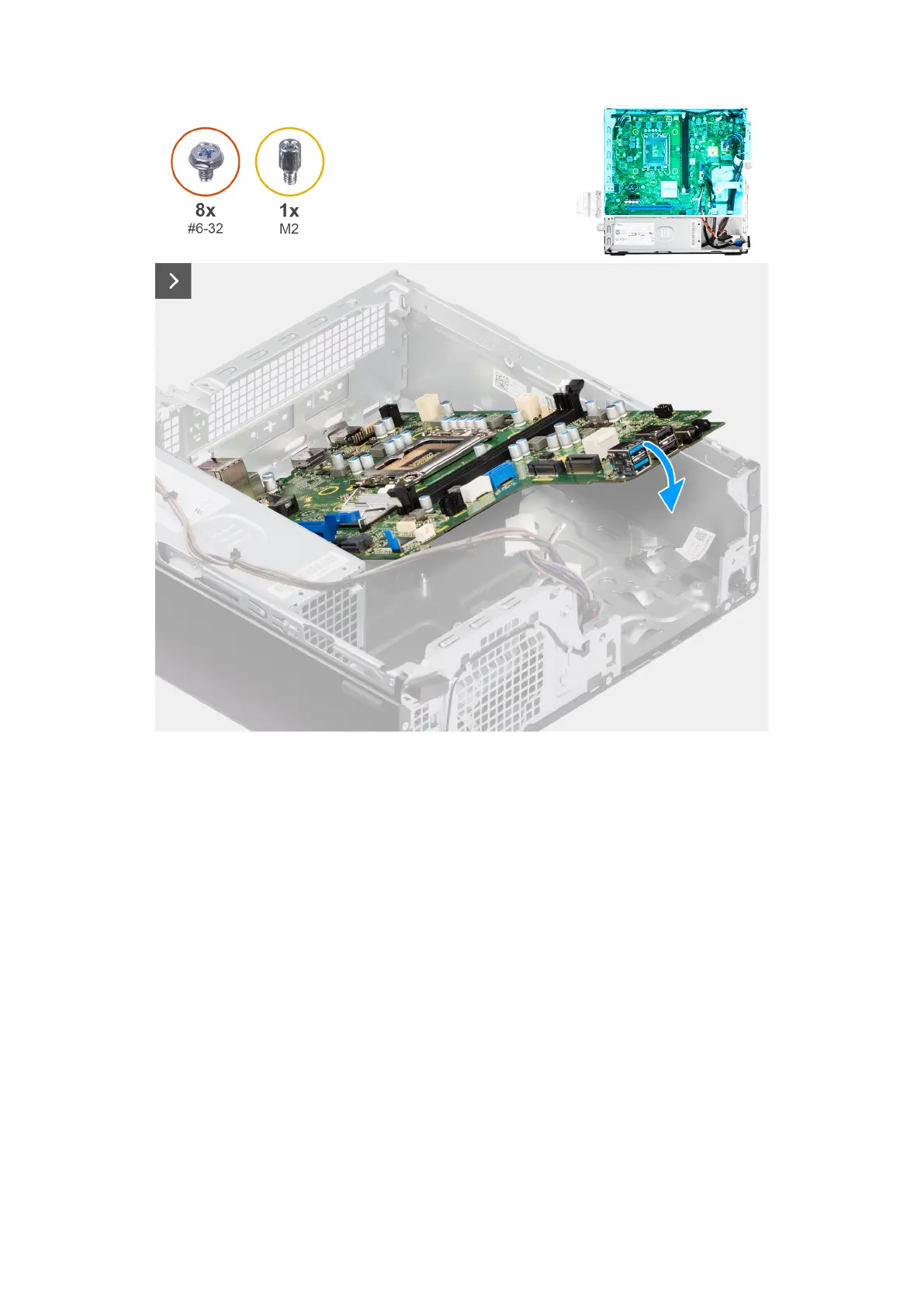

Figure 62. Installing the system board
Steps
1. Align and lower the system board into the chassis until the standoff points at the back of the system board align with those
on the chassis.
Removing and installing Field Replaceable Units (FRUs)
109
