About this task
The following images indicate that the location of the internal antenna module and provide a visual representation of the removal
procedure.

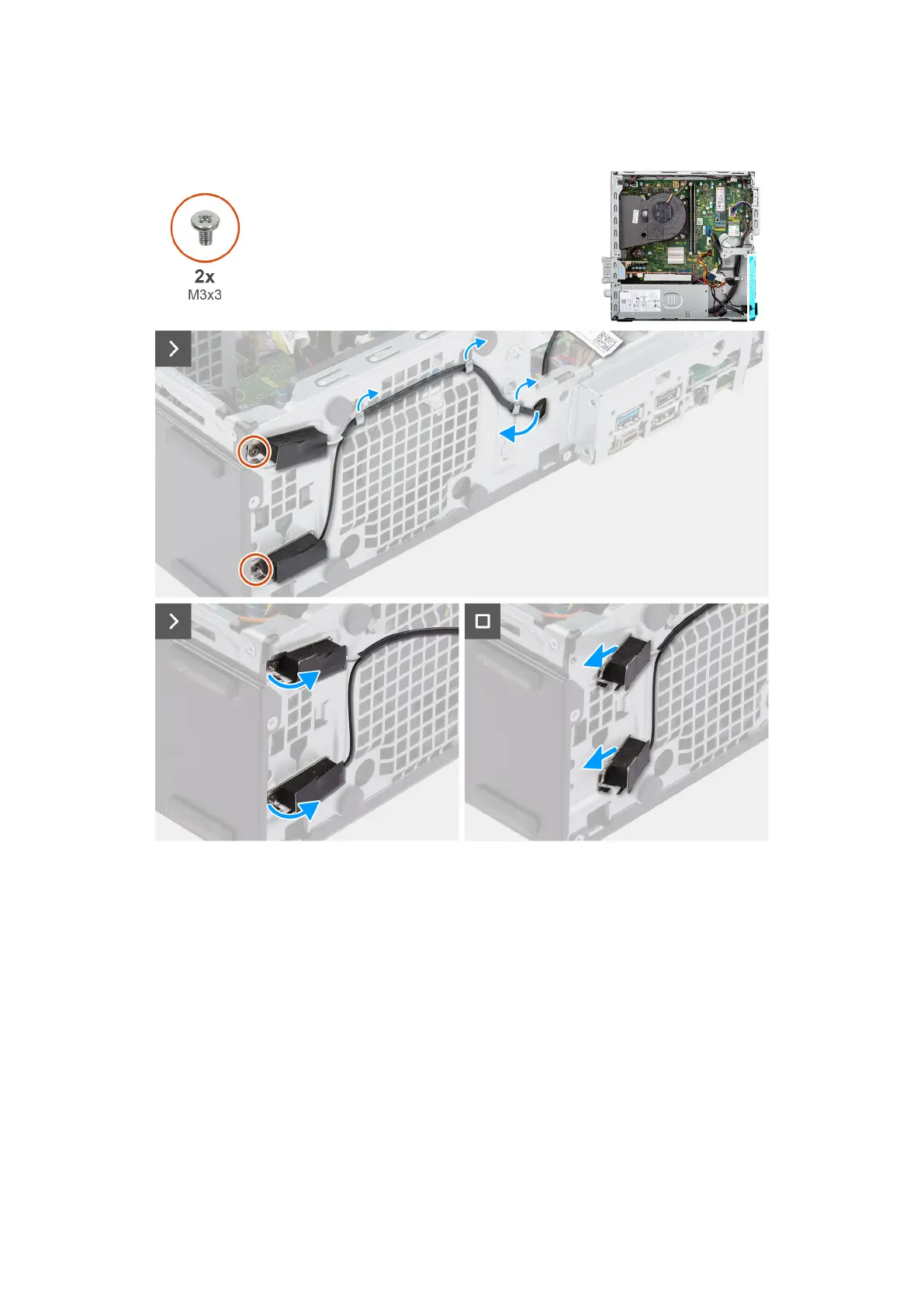

Figure 37. Removing the internal antenna module
80
Removing and installing Field Replaceable Units (FRUs)
